Application Examples

7.3.4 Potentiometer Reference

Voltage reference via a potentiometer
Reference Source 1 = [1] Analog input 53 (default)
Terminal 53, Low Voltage = 0V
Terminal 53, High Voltage = 10V
Terminal 53, Low Ref./Feedback = 0 RPM
Terminal 53, High Ref./Feedback = 1500 RPM
Switch S201 = OFF (U)
Speed RPM
P 6-15
Ref. voltage
P 6-11 10V

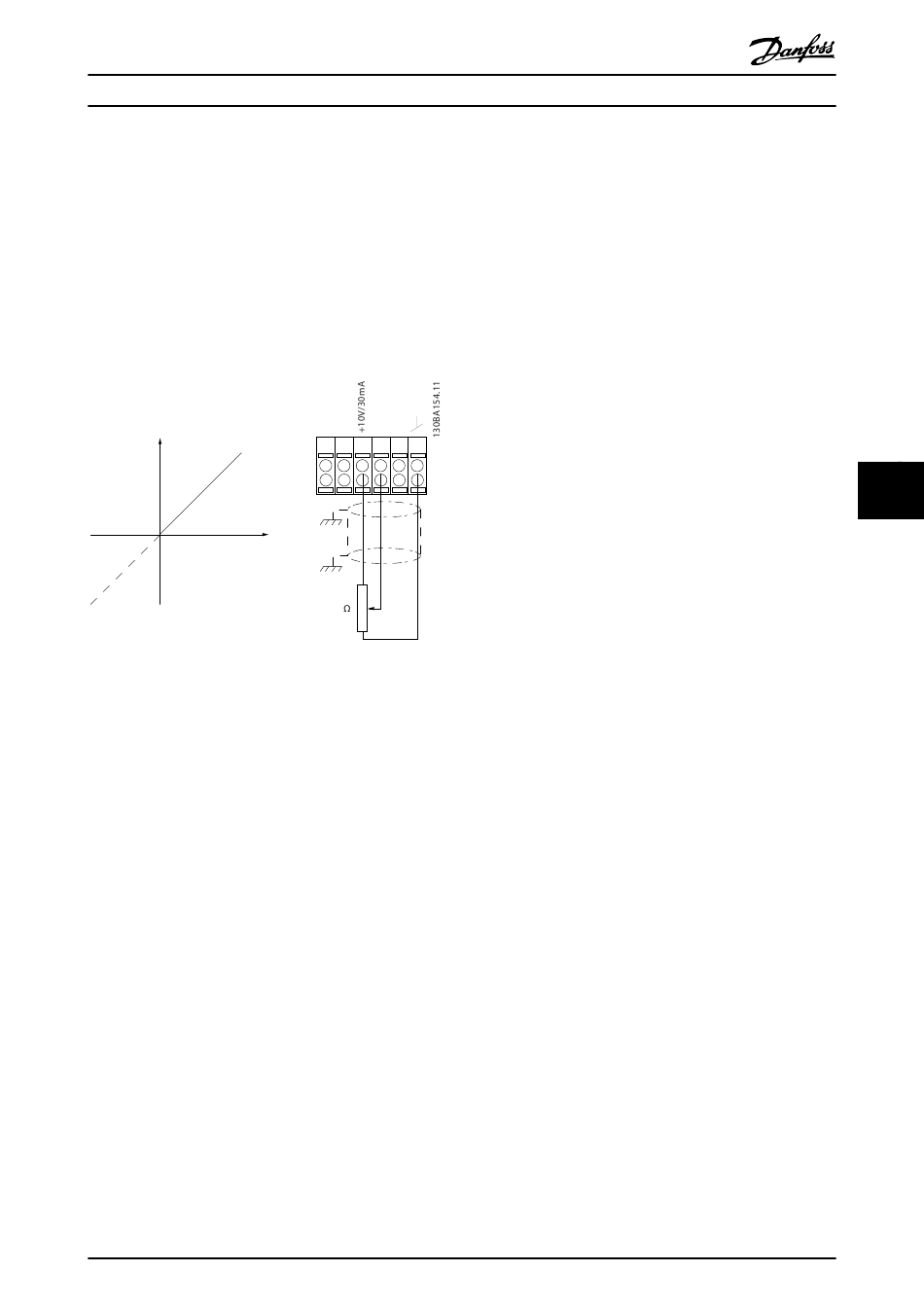

Illustration 7.8 Potentiometer Voltage Reference
MG34U302
Operating Instructions
39 42 50 53 54 55
1 k
