Programming Guide | VLT® HVAC Drive FC 102
Option Name
[103] Motor cur. 0-Imax
[104] Torque rel to limit
[105] Torque 0-Tlim
[106] Power 0-Pnom
[107] Speed 0-HighLim
[113] Ext. closed loop 1
[114] Ext. closed loop 2
[115] Ext. closed loop 3
[117] Shaft power
[121] Air pres- to flow
[139] Bus ctrl
[141] Bus ctrl t.o.
[186] Pressure sensor 4
36-61 Terminal X49/11 Digital Output
Default value: [0] No operation
Setup: All setups
Data type:
Uint8
Select the function of terminal X49/7 as a digital output.
Option Name
[0]* No operation
[1] Control ready
[2] Drive ready
[3] Drive rdy/rem ctrl
© 2024.10
Description
The value is taken from parameter 16-37 Inv. Max. Current. The
inverter maximum current (160% current) is equal to 20 mA.

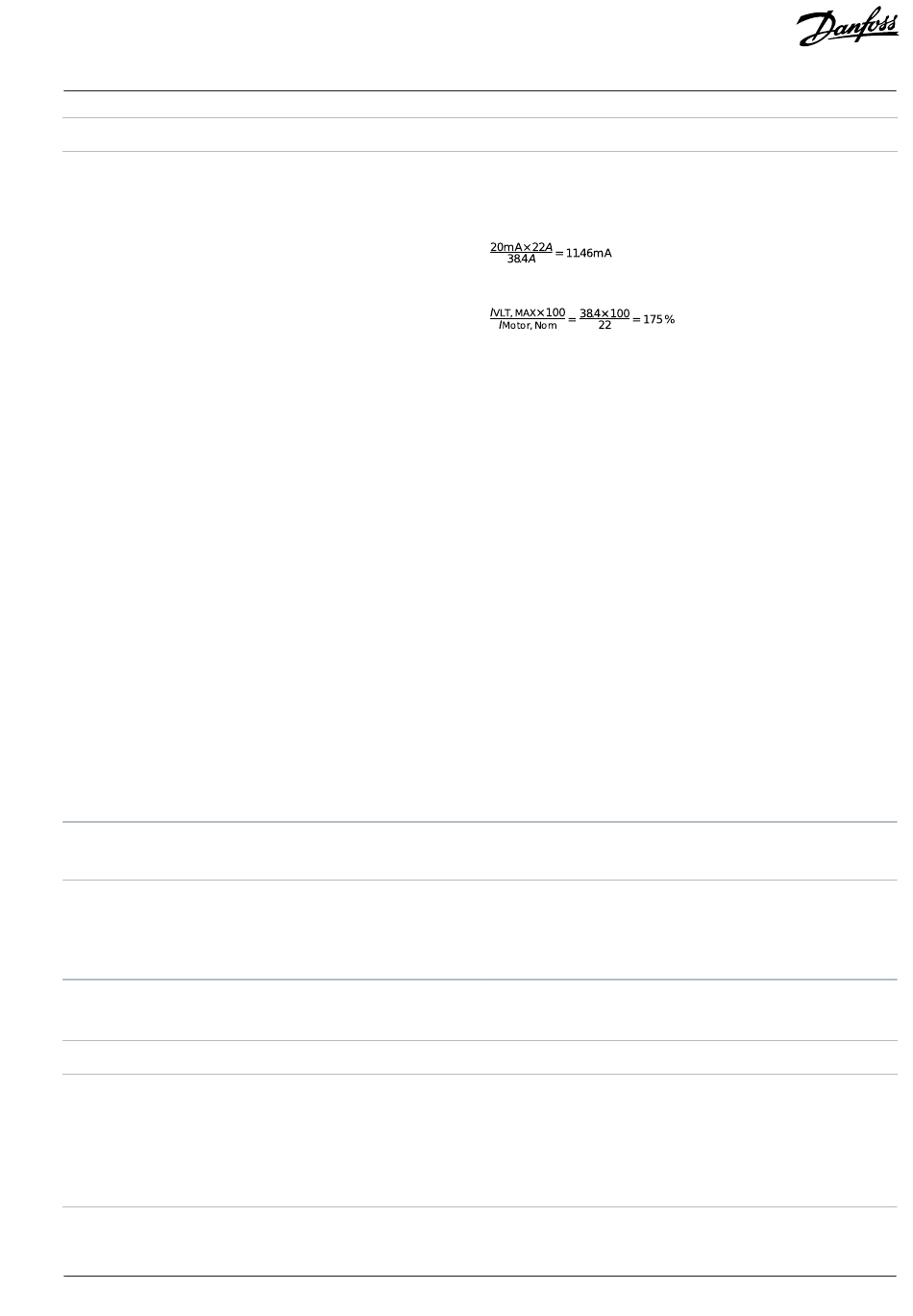

Example: Inverter normal current (11 kW) is 24 A. 160 %=38.4 A.
Motor normal current is 22 A, the readout is 11.46 mA.
When the normal motor current is equal to 20 mA, the output
setting of parameter 6-52 Terminal 42 Output Max Scale is:
The torque setting is related to the setting in parameter 4-16
Torque Limit Motor Mode.
The torque is related to the motor torque setting.
Taken from parameter 1-20 Motor Power [kW].
Taken from parameter 3-03 Maximum Reference. 20 mA equals
the value in parameter 3-03 Maximum Reference.
0–100%, (0–10 V)
0–100%, (0–10 V)
0–100%, (0–10 V)
An output value set from fieldbus process data. The output works
independently of internal functions in the drive.
Parameter 4-54 Warning Reference Lowdefines the behavior of
the analog output in case of fieldbus timeout.
Parameter type:
Conversion index:
Change during operation:
Description
All digital and relay outputs are by default set to No Operation.
The control card is ready.
The drive is ready to operate. Mains and control supplies are OK.
The drive is ready for operation and is in auto-on mode.
AU430028034214en-001901 / 130R0310 |
Parameter Descriptions
Option
–
True
