Programming Guide | VLT® HVAC Drive FC 102
Custom Readout (Value)
P 16-09
Custom Readout
Unit P 0-30
Max value
P 0-32
Min value
Linear units
only (P0-31)
0

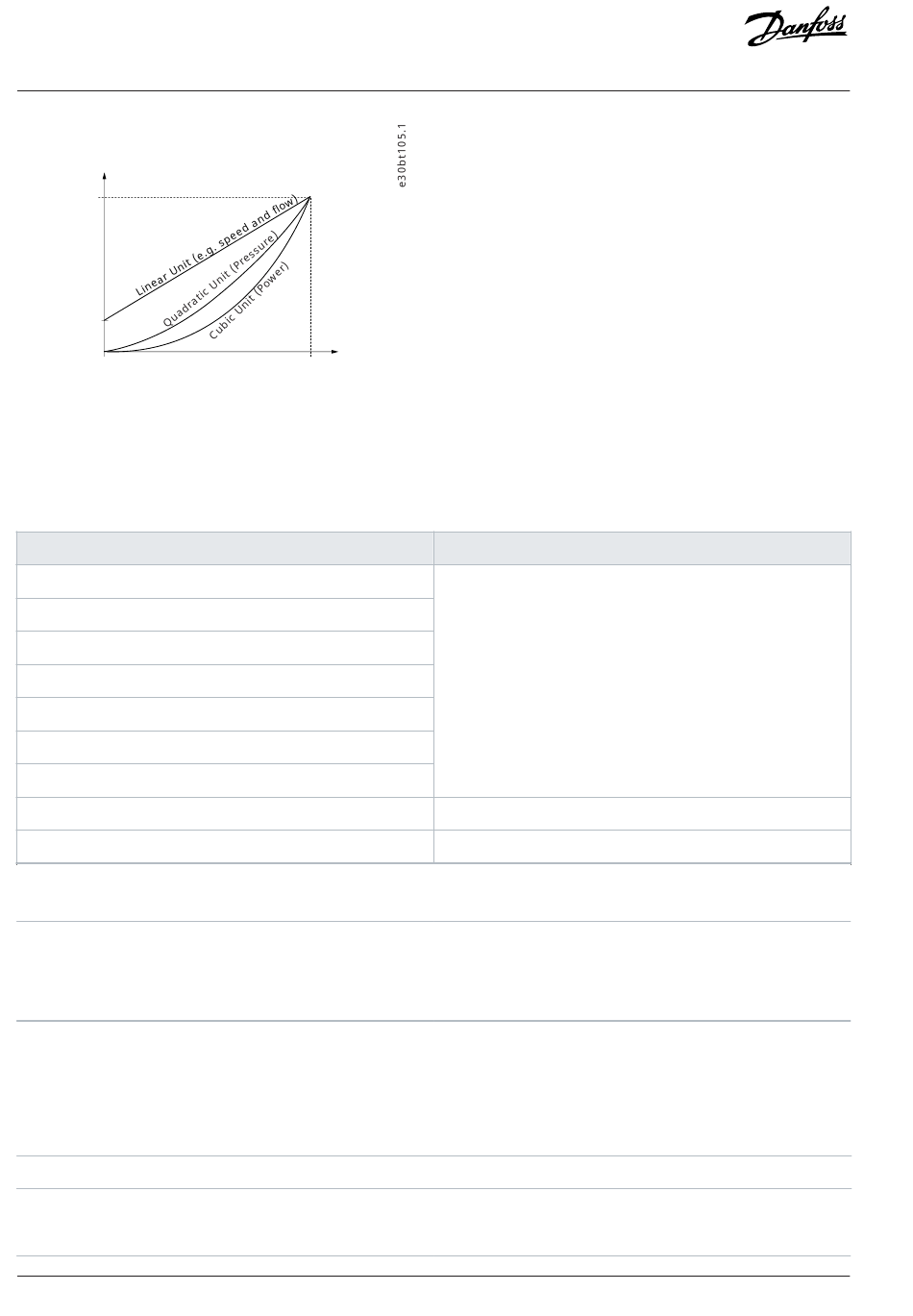

Figure 30: Custom Readout
The relation depends on the type of unit selected in parameter 0-30 Custom Readout Unit.
Table 13: Speed Relations for Different Unit Types
Unit type
Dimensionless
Speed
Flow, volume
Flow, mass
Velocity
Length
Temperature
Pressure
Power
0-30 Unit for User-defined Readout
Default value:
[1] %
Setup: All setups
Data type:
Uint8
It is possible to program a value to be shown in the display of the LCP. The value has a linear, squared, or cubed relation to speed. This
relation depends on the unit selected (see Table 3.2). The actual calculated value can be read in parameter 16-09 Custom Readout, and/
or shown in the display by selecting [16-09] Custom Readout in parameter 0-20 Display Line 1.1 Small to parameter 0-24 Display Line 3
Large.
Option Name
[0] None
[1]* %
66 | © 2024.10
Motor Speed
Motor Speed
High limit
P 4-13 (RPM)
P 4-14 (Hz)
Speed relation
Linear
Quadratic
Cubic
Parameter type:
Conversion index:
Change during operation:
Description
Parameter Descriptions
Option
–
True
