7. Application Examples

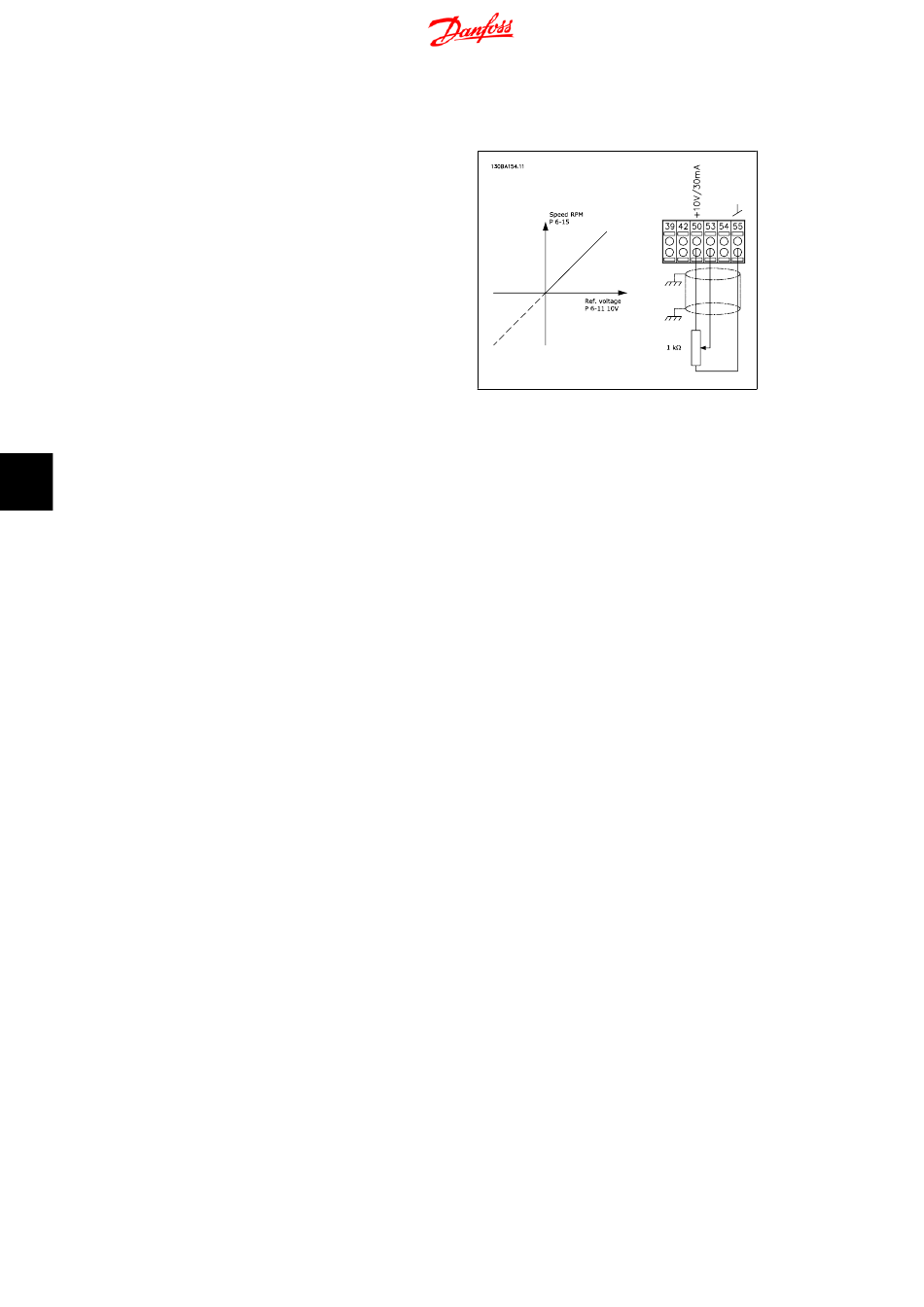

7.1.3. Potentiometer Reference
Voltage reference via a potentiometer:
7
128
Reference Source 1 = [1]
Analogue
input 53
(default)
Terminal 53, Low Voltage = 0 Volt
Terminal 53, High Voltage = 10 Volt
Terminal 53, Low Ref./Feedback = 0
RPM
Terminal 53, High Ref./Feedback =
1500 RPM
Switch S201 = OFF (U)
MG.33.B9.02 - VLT
®
is a registered Danfoss trademark
FC 300 Design Guide
