Parameter 13-15
RS-FF Operand S
Parameter 13-16
RS-FF Operand R

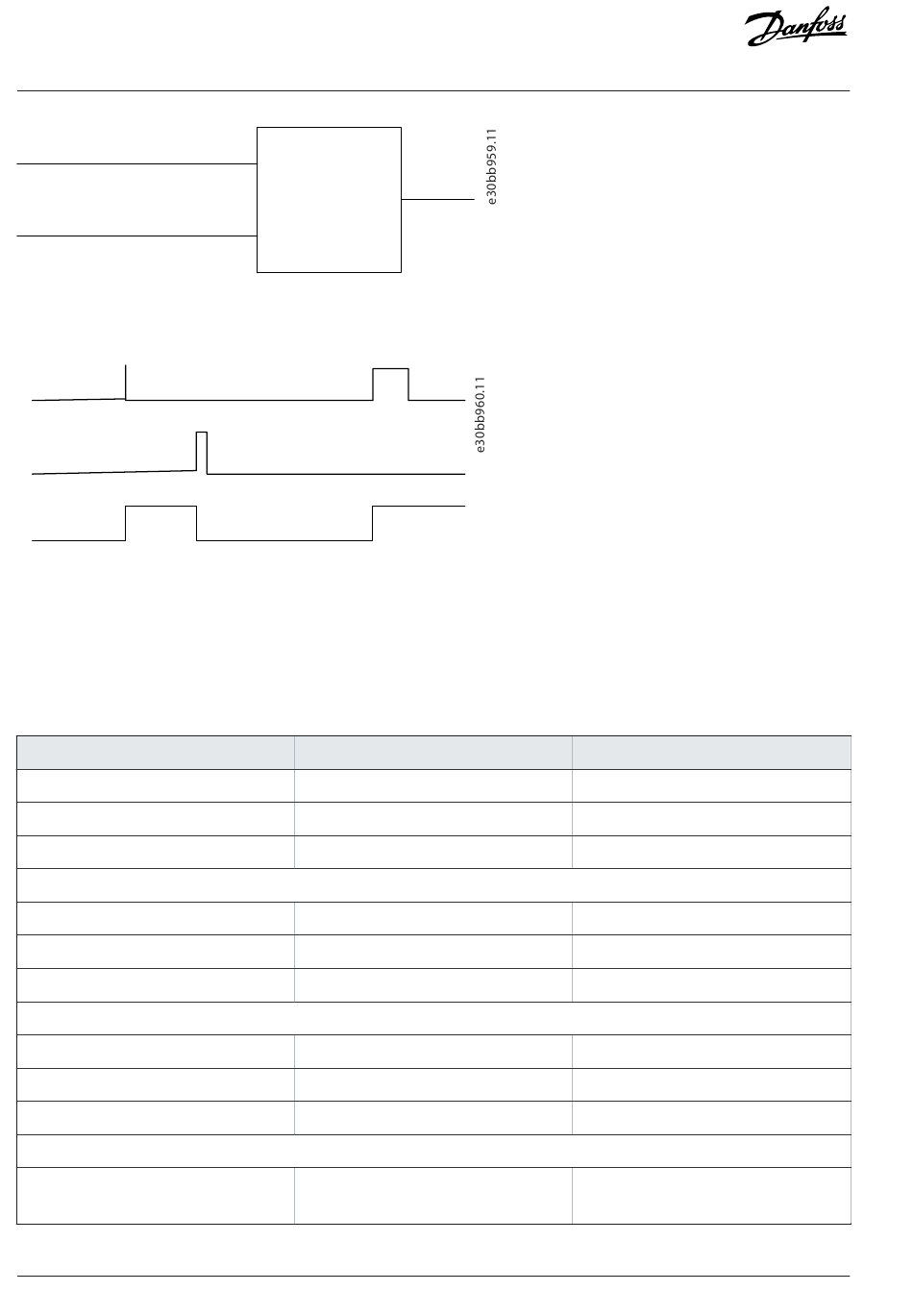

Figure 65: Reset/Set Flip flops
Two parameters are used, and the output can be used in the logic rules and as events.
S
R
Flip flop output
Figure 66: Flip flop Outputs
The 2 operators can be selected from a long list. As a special case, the same digital input can be used as both set and reset, making it
possible to use the same digital input as start/stop. The following settings can be used to set up the same digital input (for example,
DI32) as start/stop.
Table 40: Operators
Parameter
Parameter 13-00 SL Controller Mode
Parameter 13-01 Start Event [0]
Parameter 13-02 Stop Event [0]
Parameter 13-40 Logic Rule Boolean 1 [0]
Parameter 13-42 Logic Boolean 2 [0]
Parameter 13-41 Logic Rule Operator 1[0]
Parameter 13-40 Logic Rule Boolean 1 [1]
Parameter 13-42 Logic Boolean 2 [1]
Parameter 13-41 Logic Rule Operator 1[1]
Parameter 13-15 RS-FF Operand S[0]
306 | © 2024.10
Setting
[1] On
True
False
[37] Digital input DI32
[2] Running
[3] AND NOT
[37] Digital input DI32
[2] Running
[1] AND
[26] Logic rule 0
Parameter Descriptions
Notes
–
–
–
–
–
–
–
–
–
Output from parameter 13-41 Logic Rule
Operator 1 [0]
AU430028034214en-001901 / 130R0310
