MPLS TE in MPLS L3VPN
Configuration Example
7 Create a static route for routing MPLS TE tunnel traffic
[RouterA] ip route-static 4.4.4.4 32 tunnel 4 preference 1
Perform the display ip routing-table command on Router A. You can find a
static route entry with Tunnel3 as the outgoing interface.
Network requirements
CE 1 and CE 2 belong to VPN 1. They are connected to the MPLS backbone
respectively through PE 1 and PE 2. The IGP protocol running on the MPLS
backbone is OSPF.
Do the following:
Set up an MPLS TE tunnel to forward the VPN traffic from PE 1 to PE 2.
■
To allow the MPLS L3VPN traffic to travel the TE tunnel, configure a tunneling
■
policy to use a CR-LSP as the VPN tunnel when creating the VPN.
Network diagram

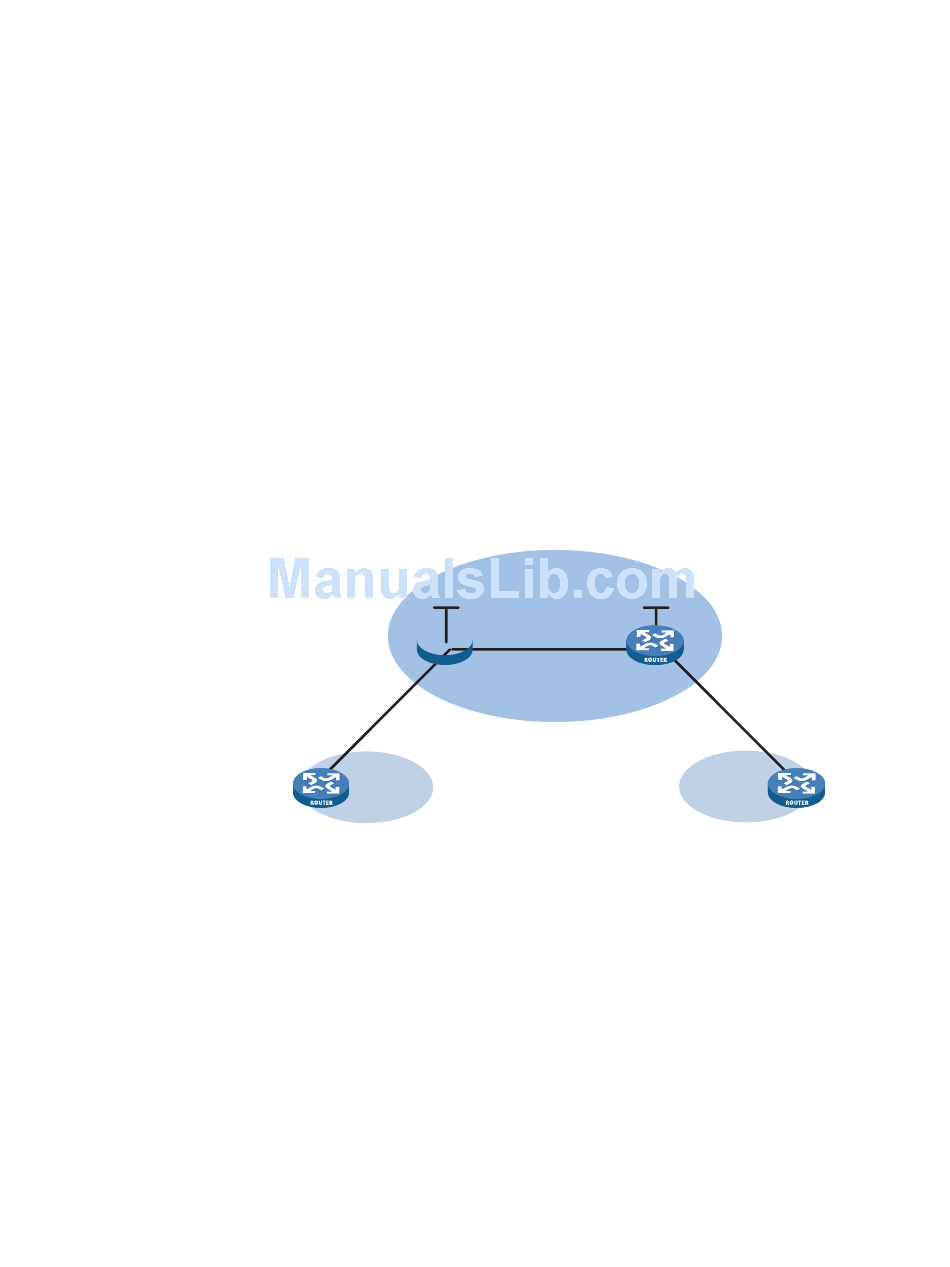

Figure 396 MPLS TE application in VPN
Loop 0
2.2.2.2/32
Eth1/0
192.168.1.1/24
PE 1
Eth1/0
192 .168 .1.2/24
AS 65001
CE 1
Configuration procedure
1 Configure OSPF, ensuring that PE 1 and PE 2 can learn routes from each other.
# Configure PE 1.
[PE1] system-view
[PE1] interface loopback 0
[PE1-LoopBack0] ip address 2.2.2.2 255.255.255.255
[PE1-LoopBack0] quit
[PE1] interface pos 5/1
[PE1-POS5/1] ip address 10.0.0.1 255.255.255.0
[PE1-POS5/1] quit
[PE1] ospf
[PE1-ospf-1] area 0
[PE1-ospf-1-area-0.0.0.0] network 10.0.0.0 0.0.0.255
[PE1-ospf-1-area-0.0.0.0] network 2.2.2.2 0.0.0.0
[PE1-ospf-1-area-0.0.0.0] quit
[PE1-ospf-1] quit
MPLS TE Configuration Example
Loop 0
AS 100
3.3.3.3 /32
POS 5/1 POS 5/1
10.0.0.1 /24
10.0.0.2 /24
PE 2
CR-LSP
Eth1/0
192 .168 .2 .1/24
Eth1/0
192 .168 .2 .2/24
AS 65002
CE 2
