Network diagram

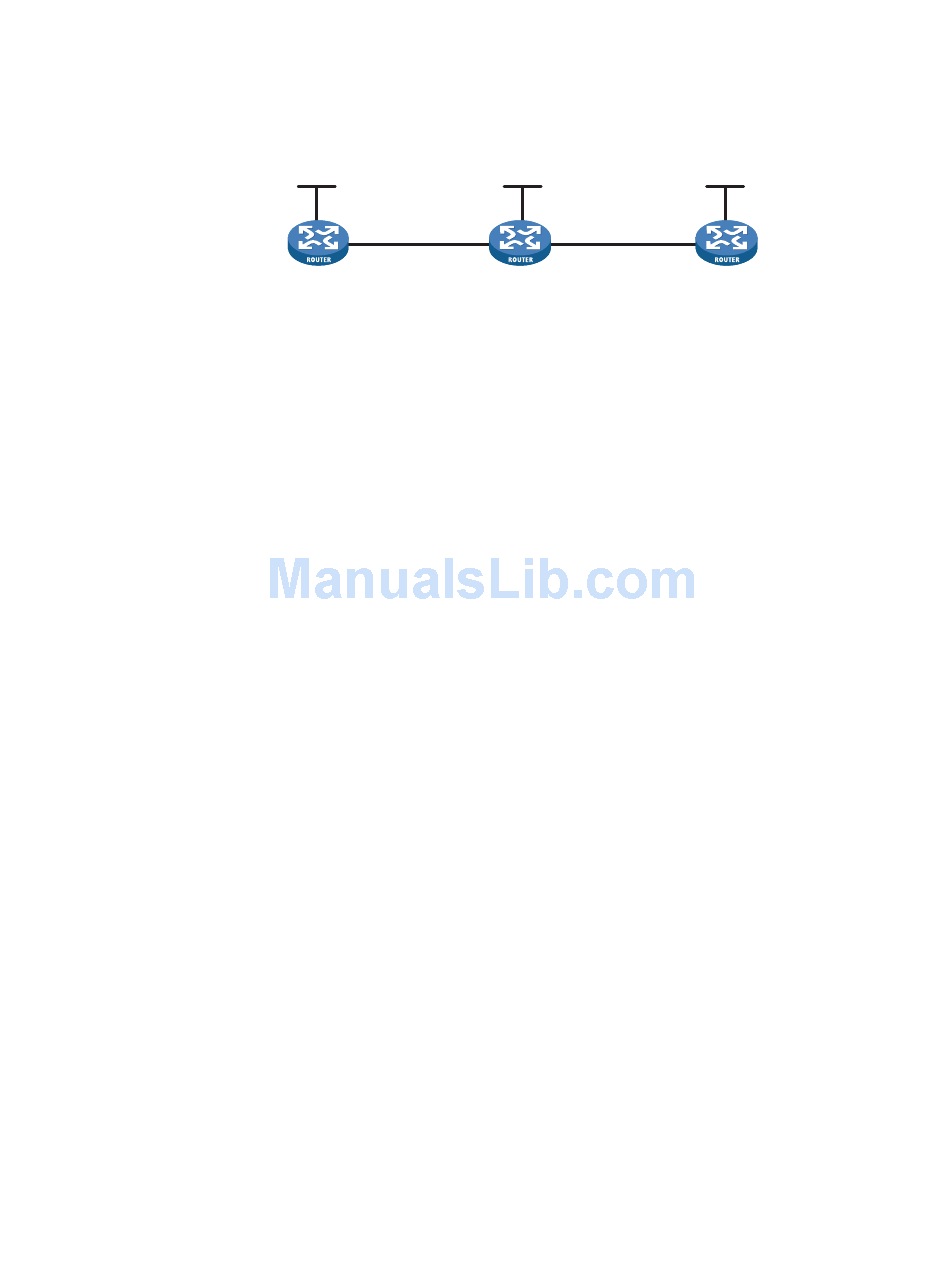

Figure 384 Network diagram for LDP session configuration
Loop 0
1.1.1.9 /32
S1/0
10.1.1 .1/24
10.1.1.2 /24
Router A
Configuration procedure
1 Configure the IP addresses of the interfaces
Configure the IP addresses and masks of the interfaces including the loopback
interfaces as required in
procedure for Router A.
# Configure Router A.
<Sysname> system-view
[Sysname] sysname RouteA
[RouteA] interface loopback 0
[RouteA-LoopBack0] ip address 1.1.1.9 32
[RouteA-LoopBack0] quit
[RouteA] interface serial 1/0
[RouterA-Serial1/0] ip address 10.1.1.1 24
[RouterA-Serial1/0] quit
2 Configure OSPF to advertise host routes of LSR ID
# Configure Router A.
[RouterA] ospf
[RouterA-ospf-1] area 0
[RouterA-ospf-1-area-0.0.0.0] network 1.1.1.9 0.0.0.0
[RouterA-ospf-1-area-0.0.0.0] network 10.1.1.0 0.0.0.255
[RouterA-ospf-1-area-0.0.0.0] quit
[RouterA-ospf-1] quit
# Configure Router B.
<RouterB> system-view
[RouterB] ospf
[RouterB-ospf-1] area 0
[RouterB-ospf-1-area-0.0.0.0] network 2.2.2.9 0.0.0.0
[RouterB-ospf-1-area-0.0.0.0] network 10.1.1.0 0.0.0.255
[RouterB-ospf-1-area-0.0.0.0] network 20.1.1.0 0.0.0.255
[RouterB-ospf-1-area-0.0.0.0] return
# Configure Router C.
<RouterC> system-view
[RouterC] ospf
[RouterC-ospf-1] area 0
[RouterC-ospf-1-area-0.0.0.0] network 3.3.3.9 0.0.0.0
Loop 0
2.2 .2.9/32
20.1.1 .2/24
S 1/0
S1/1
20.1.1.1 /24
Router B
Figure 384. The following gives only the configuration
MPLS Configuration Example
Loop 0
3.3.3.9/32
S1 /0
Router C
