Configure two static LSPs on the P device for packets to be transferred in both
■
directions.
Network diagram

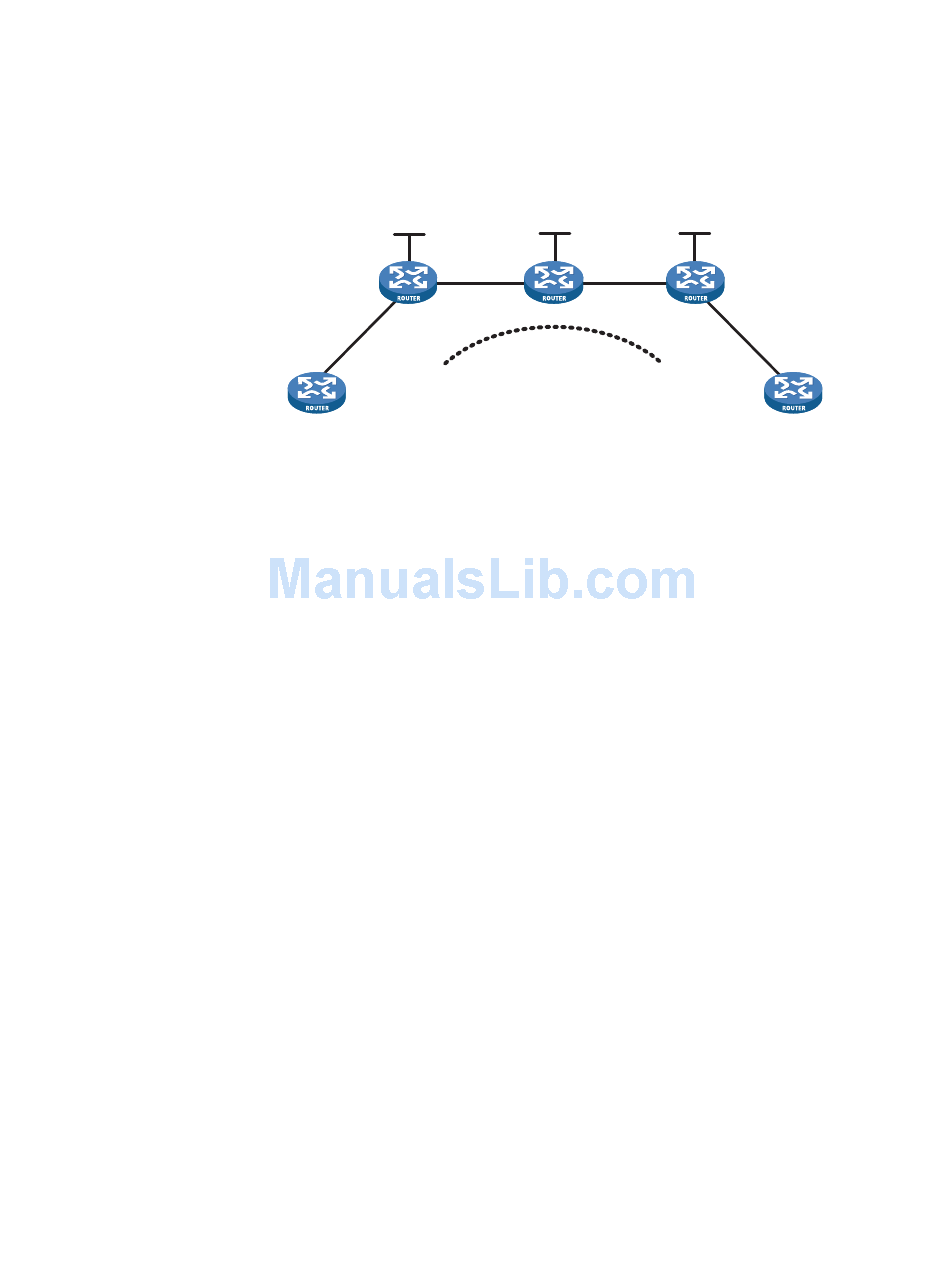

Figure 400 Network diagram for configuring a remote CCC connection
Loop 0
POS 1/1
POS 1/0
PE 1
POS1 /0
CE 1
Device Interface
CE 1 POS1/0
PE 1 Loop0
POS1/1
CE 2 POS1/0
Configuration procedure
1 Configure CE 1
<Sysname> system-view
[Sysname] sysname CE1
[CE1] interface pos 1/0
[CE1-Pos1/0] link-protocol ppp
[CE1-Pos1/0] ip address 100.1.1.1 24
2 Configure PE 1
# Configure the LSR ID and enable MPLS globally.
<Sysname> system-view
[Sysname] sysname PE1
[PE1] interface loopback 0
[PE1-LoopBack0] ip address 10.0.0.1 32
[PE1-LoopBack0] quit
[PE1] mpls lsr-id 10.0.0.1
[PE1] mpls
[PE1-mpls] quit
# Enable MPLS L2VPN globally.
[PE1] mpls l2vpn
# Configure interface POS 1/0.
[PE1] interface pos 1/0
[PE1-POS1/0] link-protocol ppp
[PE1-POS1/0] quit
MPLS L2VPN Configuration Example
Loop0
POS1 /0
POS1 /1 POS 1/0
P
Remote CCC connection
IP address Device
100.1.1.1/24 P
10.0.0.1/32
10.1.1.1/24
100.1.1.2/24 PE 2
Loop0
POS 1/1
PE 2
POS 1/0
CE 2
Interface IP address
Loop0 10.0.0.2/32
POS1/0 10.2.2.2/24
POS1/1 10.1.1.2/24
Loop0 10.0.0.3/32
POS1/0 10.2.2.1/24
