REMOVING THE COVERS

3 REMOVING THE COVERS
NOTE

3.1 C-arm upper covers

Technical Manual
Switch the unit off before removing the covers.

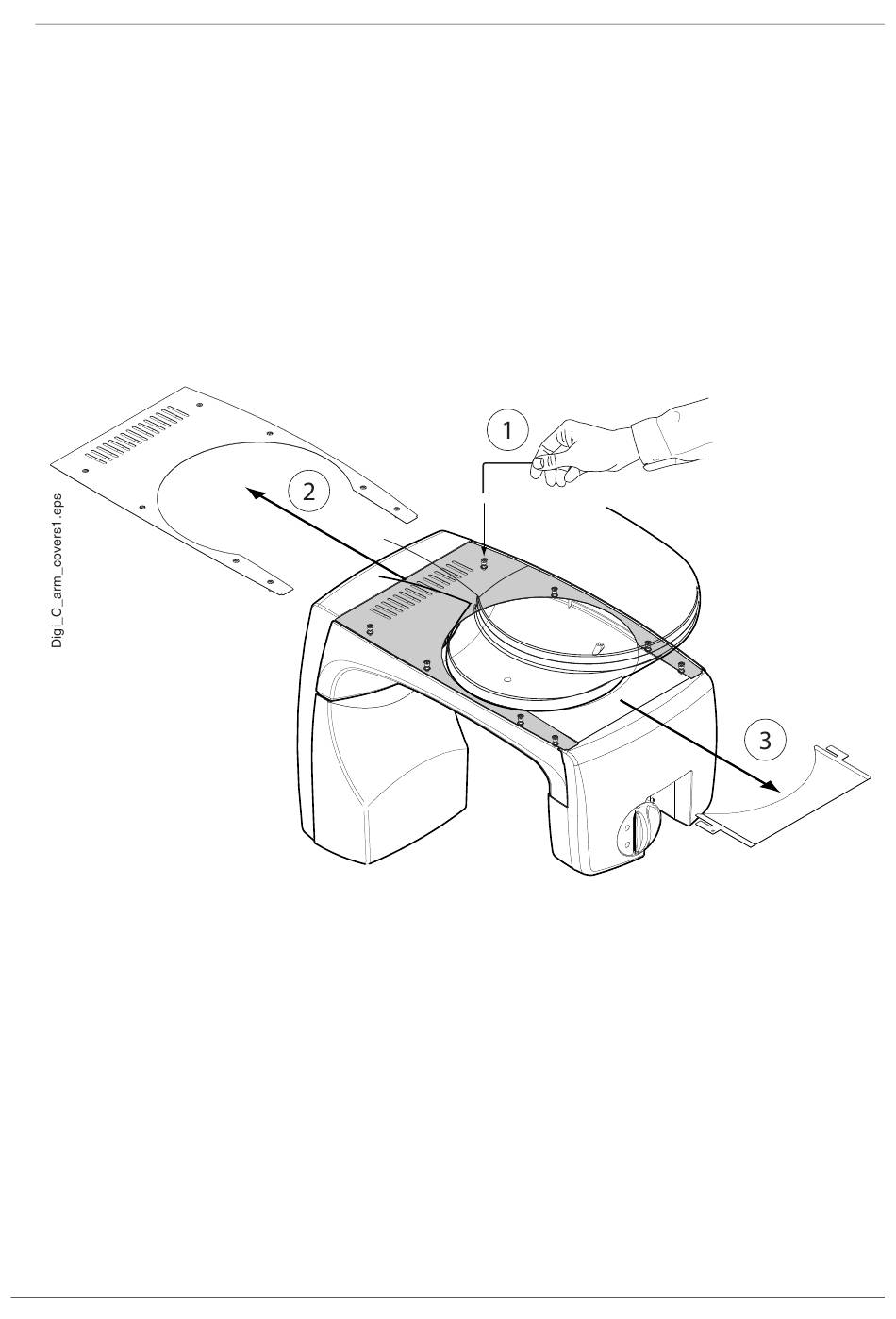

Loosen the eight attachment screws with the 2.5mm Allen key (Fig. 129, 1). Do not remove
the screws. Slide the tube head cover plate (Fig. 129, 2) and the receptor cover plate (Fig.
129, 3) from their positions as shown below.
Figure 129
Chapter E - C-ARM AND IMAGING ARM
8x
ProMax X-ray unit with Dimax3 E-85
