ADJUSTMENTS AND CALIBRATIONS

1.4 Adjusting the sensor and second primary collimator rails

Technical manual
The rails of both sensor head and second primary collimator must run parallel with the head
support frame. Check the position of the rail by using the spirit level. To adjust the rail loosen
the attachment screws on the side of rail (Fig. 10, 1).
Adjust the rail position with the adjustment screw (Fig. 10,2) and tighten the attachment
screws. Recheck the rail position.

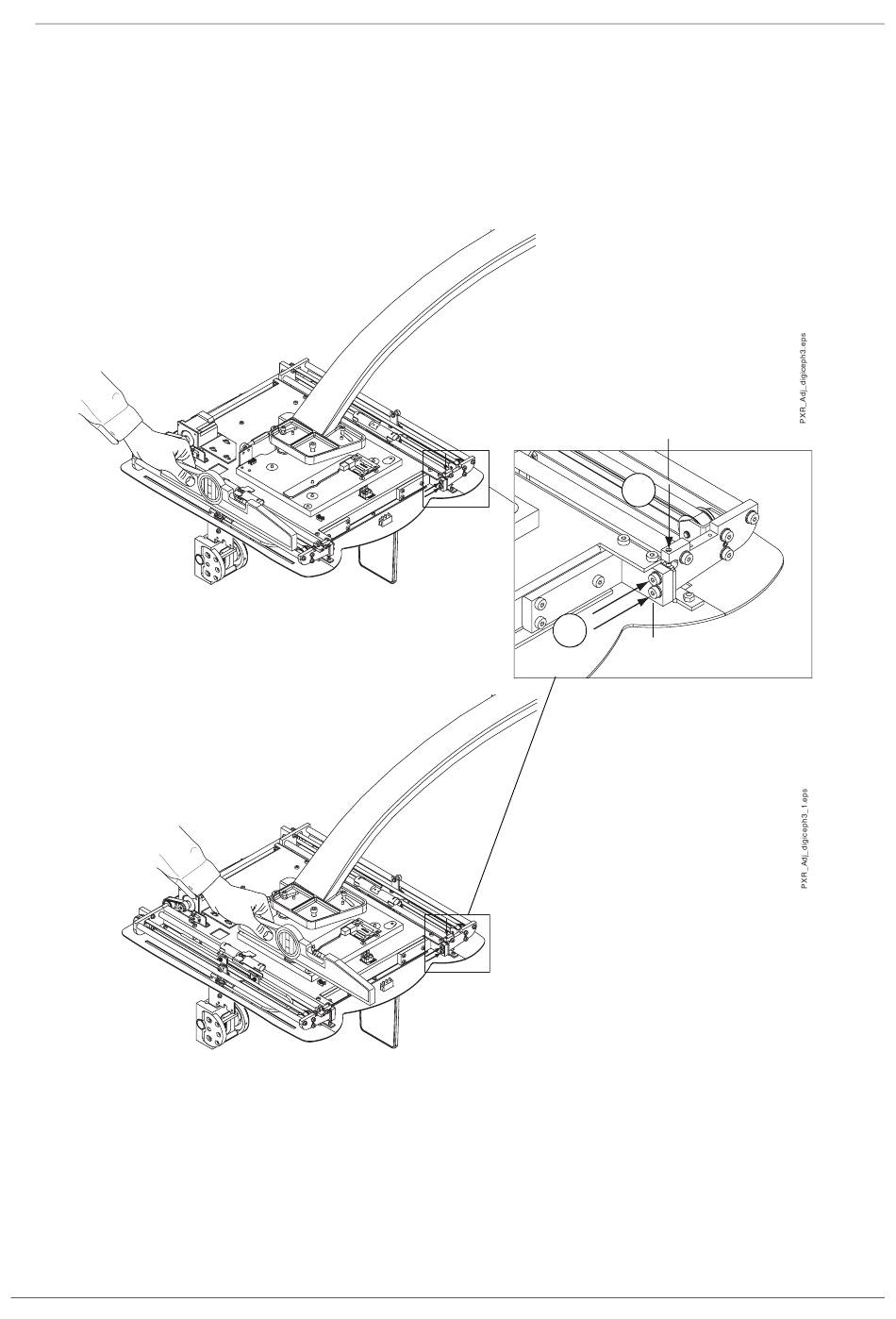

Figure 10
Chapter H - CEPHALOSTAT
Adjustment screw
2
1
Attachment screws
ProMax X-ray unit with Dimax3 H-5
