TROUBLESHOOTING

7.2 Network status

Technical Manual

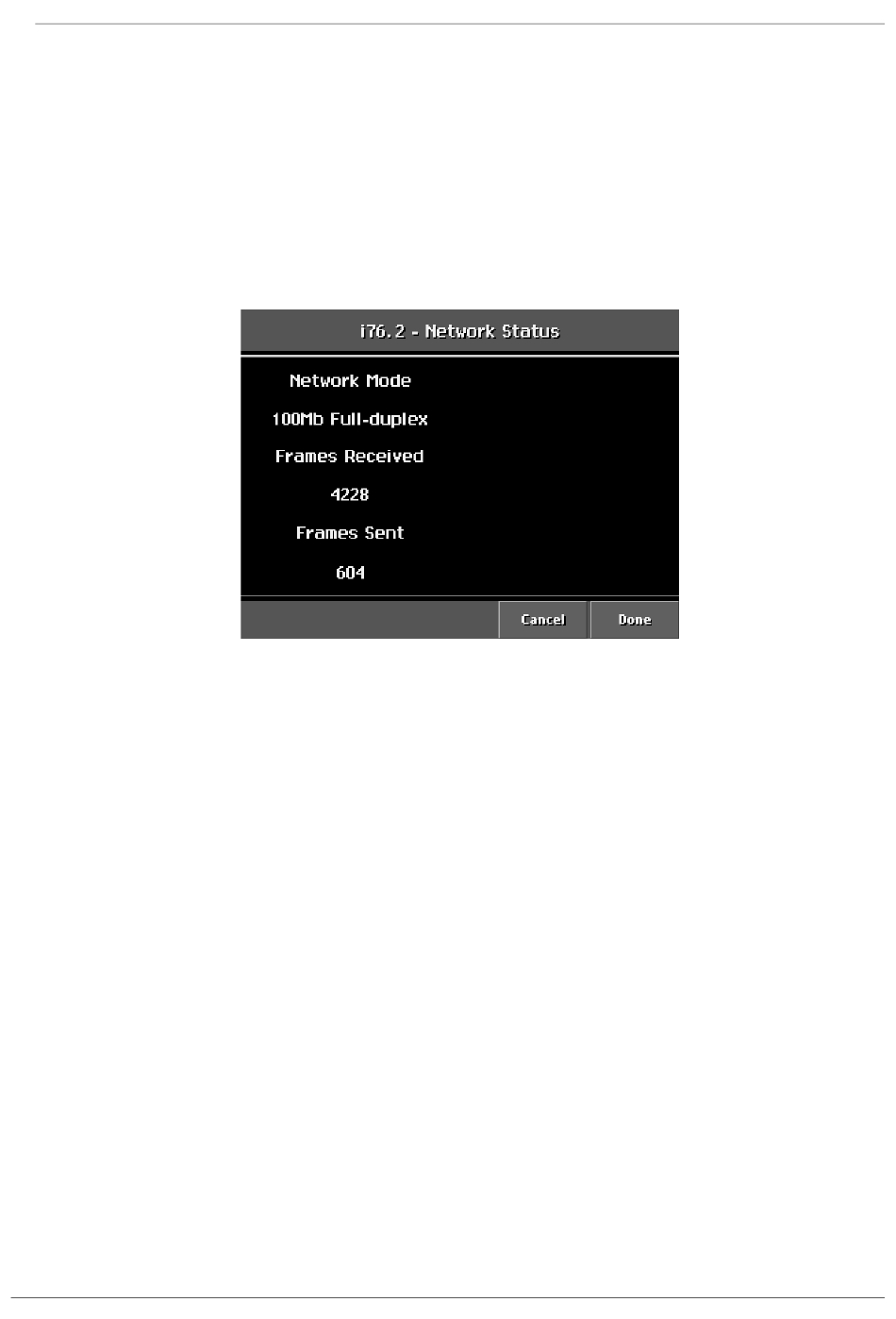

On the Network Mode field the configuration mode is dispalyed: 100/10 Mb / Full-duplex or
Hafl-duplex. If the text Disconnected is shown, the problem may be in one of the following:
cable between the ProMax X-ray unit and PC / cable or one of connectors is damaged /
wrong type cable / Ethernet PCB is defective.
The Frames Received field shows the amount of frames received from the Network. If the
value increases gradually, the X-ray unit's connection to the Network is operational.
The Frames Sent field shows the amount of frames sent by the X-ray unit.
Figure 59
Chapter B - INFORMATION DISPLAYS
ProMax X-ray unit with Dimax3 B-37
