REMOVING THE COVERS
Detaching the user interface support and support arm lower
cover
4)
5)
6)
7)
8)
Technical Manual
Unscrew the attachment screw of the user interface joint with the 4mm Allen key (Fig. 12, 4).
Press the joint with an Allen key upwards to release it from the locking plate opening (Fig. 12,
5.1-5.3).
Detach the grounding cable from the support plate.
Pull the user interface support from the arm lower cover (Fig. 12, 6).
Unscrew the attachment screws of the support arm lower cover with the 2.5mm Allen key and
remove the cover (Fig. 12, 7).
6
7
Support plate
7

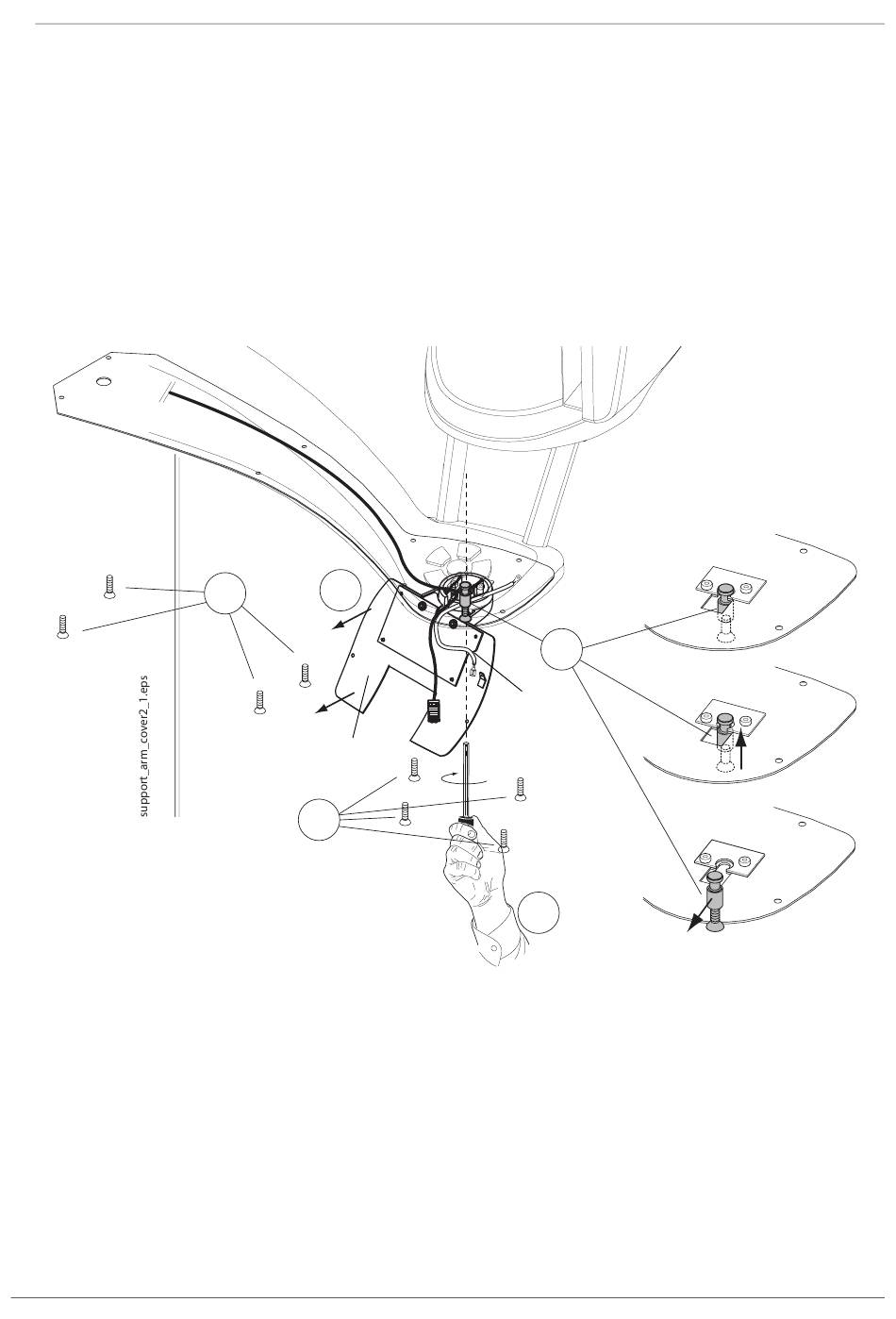

Figure 12
Chapter F - PATIENT SUPPORT ARM
5
Grounding
cable
4
ProMax X-ray unit with Dimax3 F-9
5.1
5.2
5.3
