REMOVING THE COVERS

3.4 C-arm inner cover

NOTE
Technical Manual
You have to remove the C-arm upper covers and cassette carriage inner cover / sensor
head covers before removing the C-arm inner cover.

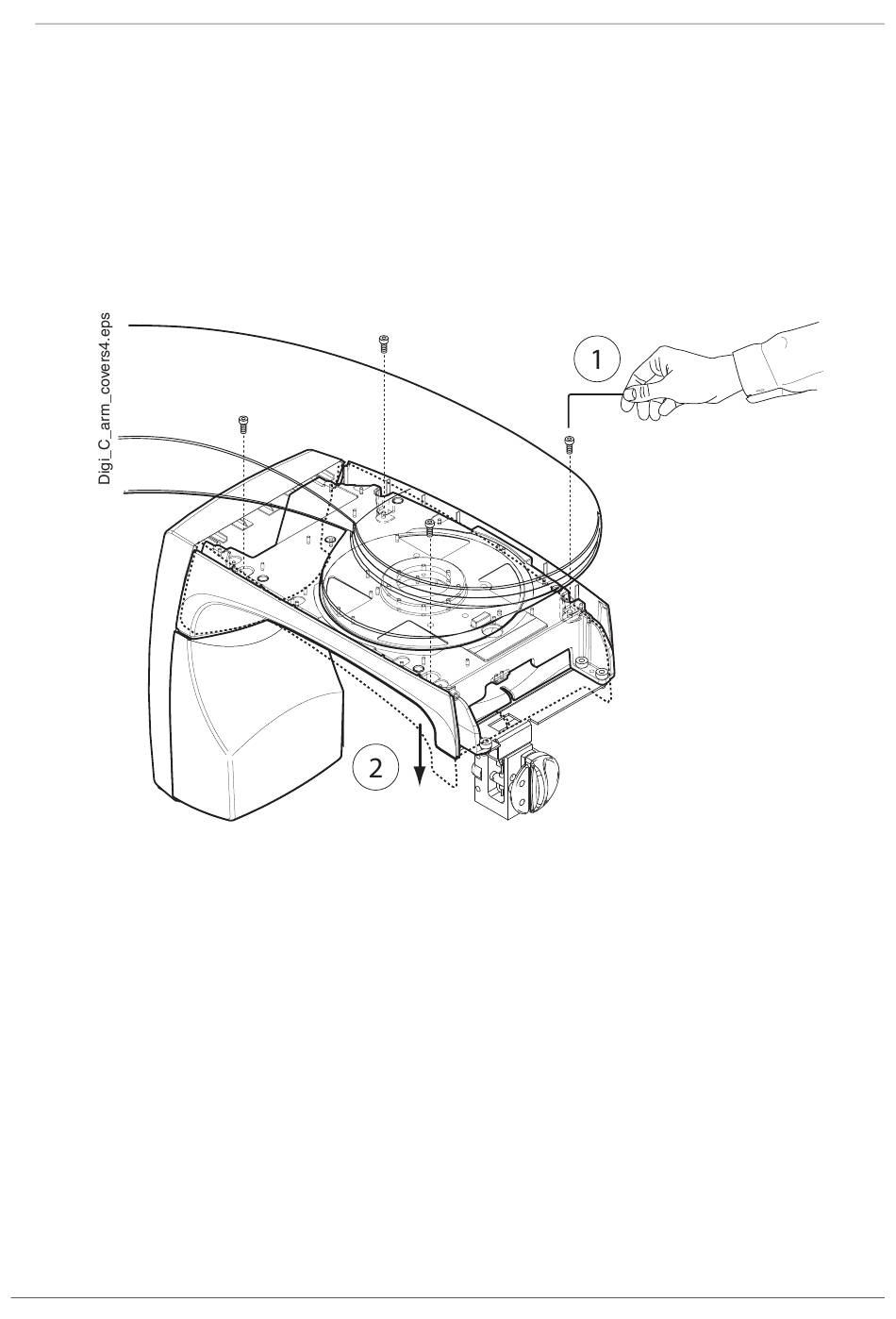

Unscrew the four screws with the 2.5mm Allen key (Fig. 135, 1) and remove the cover (Fig.
135, 2).

Figure 135

Chapter E - C-ARM AND IMAGING ARM
4x
ProMax X-ray unit with Dimax3 E-89
