DETACHING AND ATTACHING THE SENSOR HEAD
Chapter H - CEPHALOSTAT

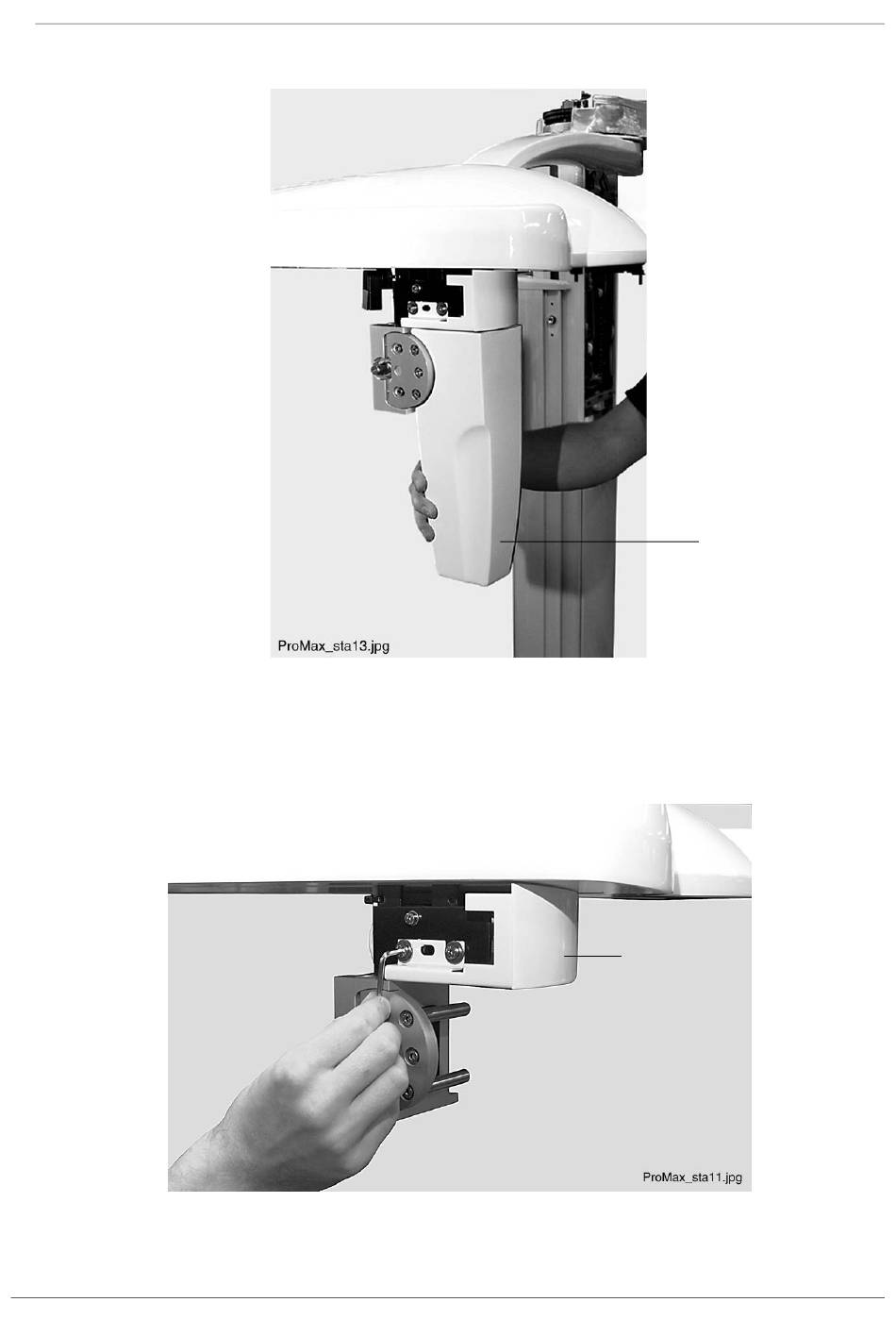

Remove the sensor head from its connector.
Sensor head
Figure 108
The sensor alignment tool can now be attached to the connector pins.
If needed, you can now detach the connector front cover by unscrewing the two attachment
screws with 3mm Allen key and slide the cover from its position.
Front cover
Figure 109
The sensor head is attached in reverse order.
ProMax X-ray unit with Dimax3 H-61
Technical manual
