REPLACING THE COLUMN MOTOR
t)
u)
v)
Technical Manual

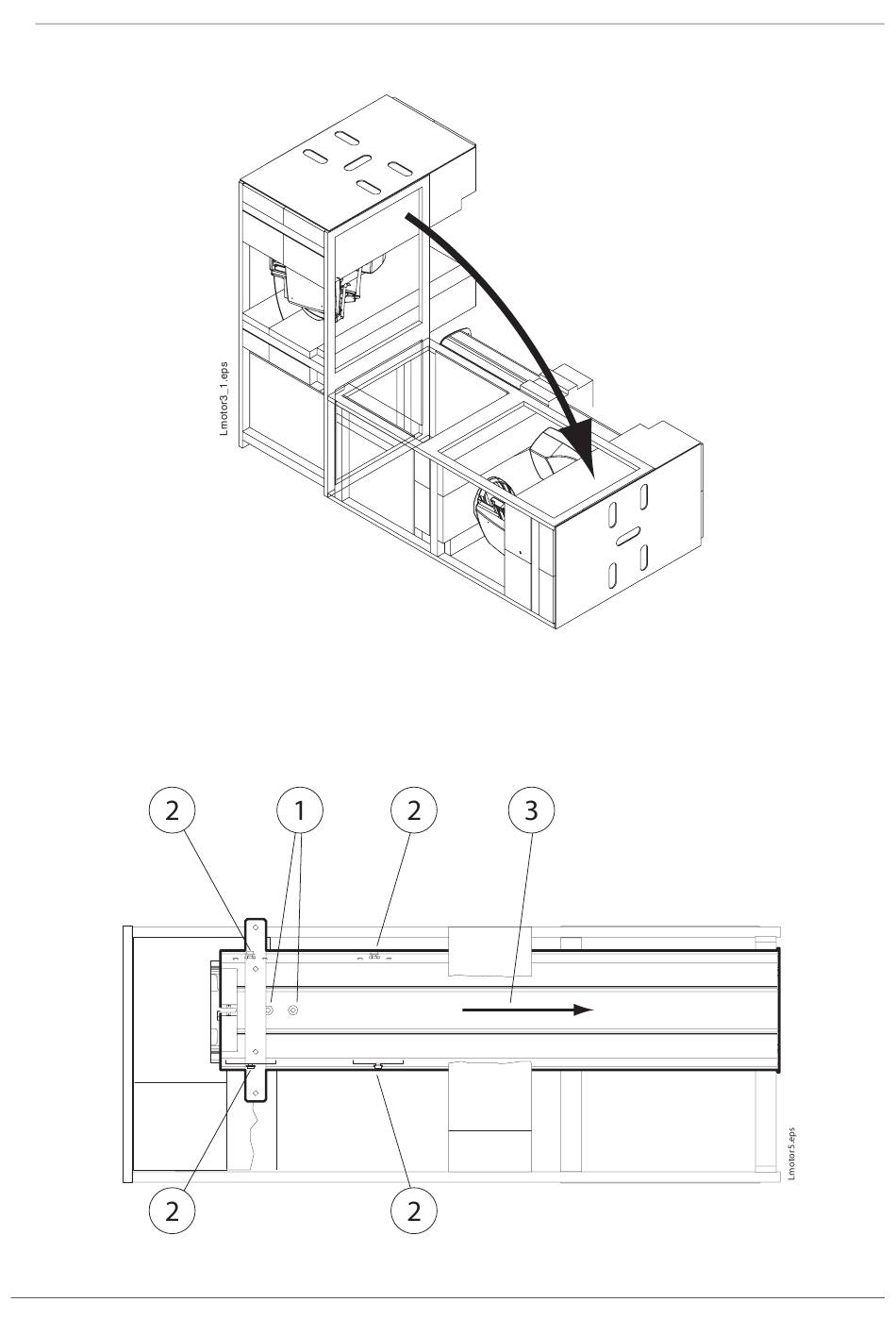

Carefully overturn the unit to the floor to the units right side.
Figure 18
To be able to remove the stationary column from inside the package, cut the bottom of the
styrofoam pieces slightly. Unscrew the attachment screws of the lift nut (Fig. 19, 1).
Unscrew the attachment screws of the guide assemblies (Fig. 19, 2). Note that it is easier to
assemble the unit if the guide assemblies are in the same position as they were. Pull the
stationary column away from the telescopic unit (Fig. 19, 3).
Figure 19
Chapter G - COLUMN
ProMax X-ray unit with Dimax3 G-17
