Chapter B - INFORMATION DISPLAYS

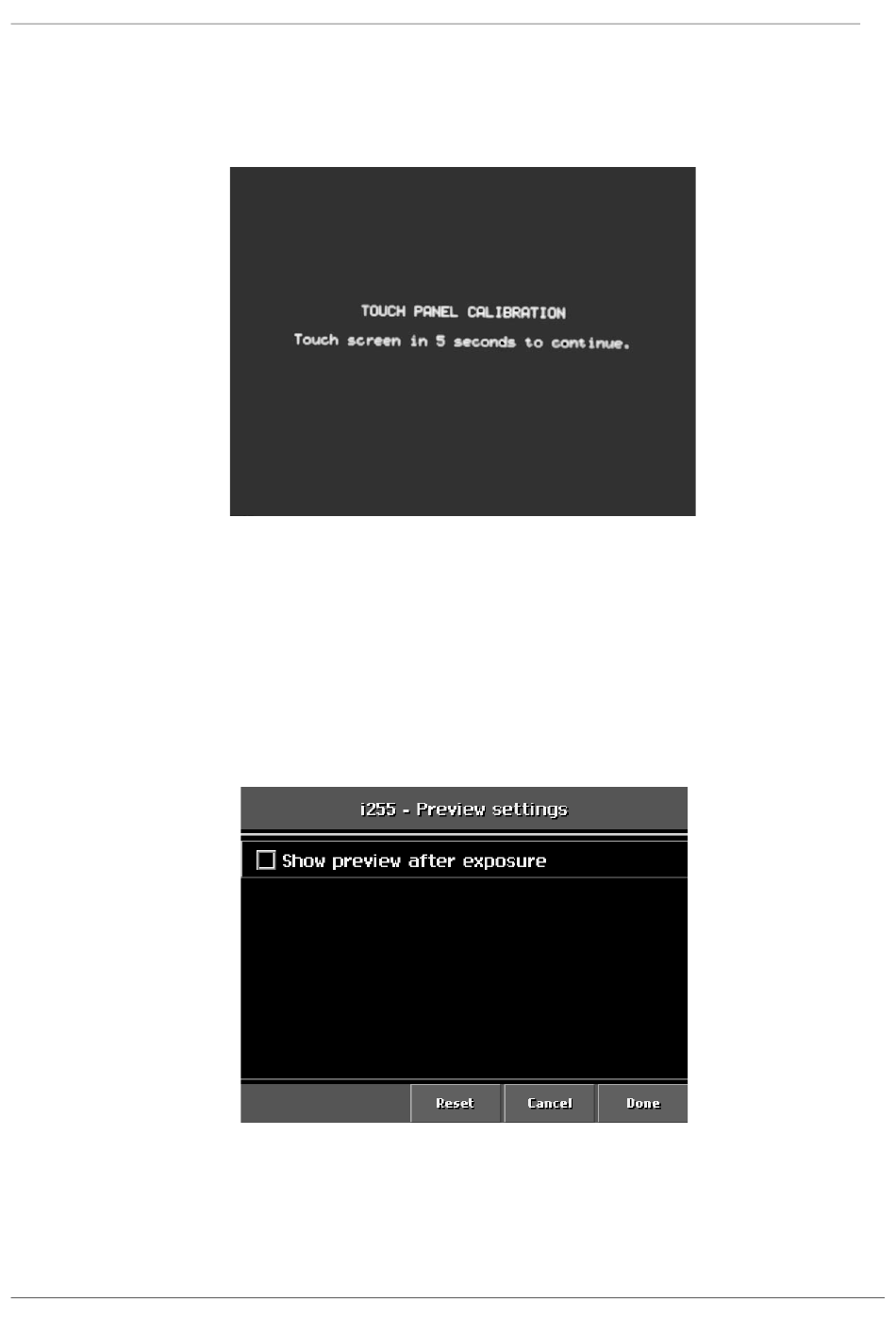

2.4.2 Touch panel calibration
The control touch panel is calibrated when you select the Touch panel calibration (i254) on
the Visual adjustments display (i250). The display shown below will appear.
Figure 12
2.4.3 Preview settings
NOTE
The Preview settings is only working with X-ray unit with Ethernet PCB and with
Dimaxis version 3.2.5 or later.
This option allows the colour GUI of the digital X-ray unit to enable/disable the showing of the
preview of the image after the exposure taken.
Figure 13
B-10 ProMax X-ray unit with Dimax3
USER PREFERENCE SETTINGS
Technical Manual
