PANORAMIC BEAM AND PATIENT POSITIONING MECHA-
CAUTION
CAUTION
Technical Manual

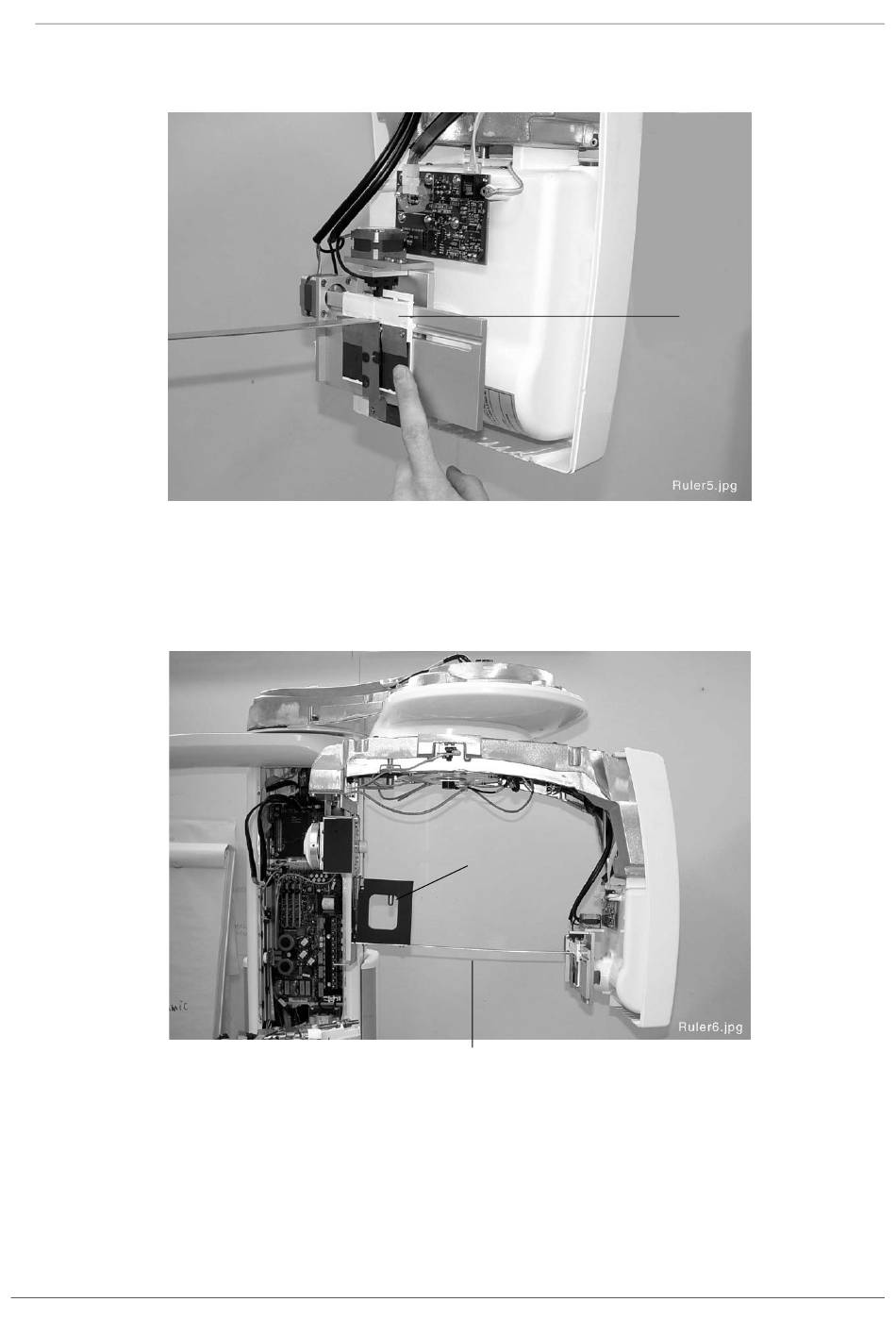

Push the right side blade against the tongue.
Figure 62
Pull the alignment tool attachment plate inwards by pulling the trigger bar backwards and
place the other end of the alignment tool against the sensor head alignment tool.
Figure 63
Never switch the X-ray unit on when the alignment tool is positioned between the tube
head and the secondary collimator. To avoid damaging the blades, the unit must be
switched on before the alignment tool is positioned.
Take care not to make any cuts to the lead (Pb) blades or to the soft tissue vedge (units
equipped with cephalostat).
Chapter E - C-ARM AND IMAGING ARM
Trigger bar
Alignment tool
ProMax X-ray unit with Dimax3 E-35
Right side blade
