Chapter B - INFORMATION DISPLAYS

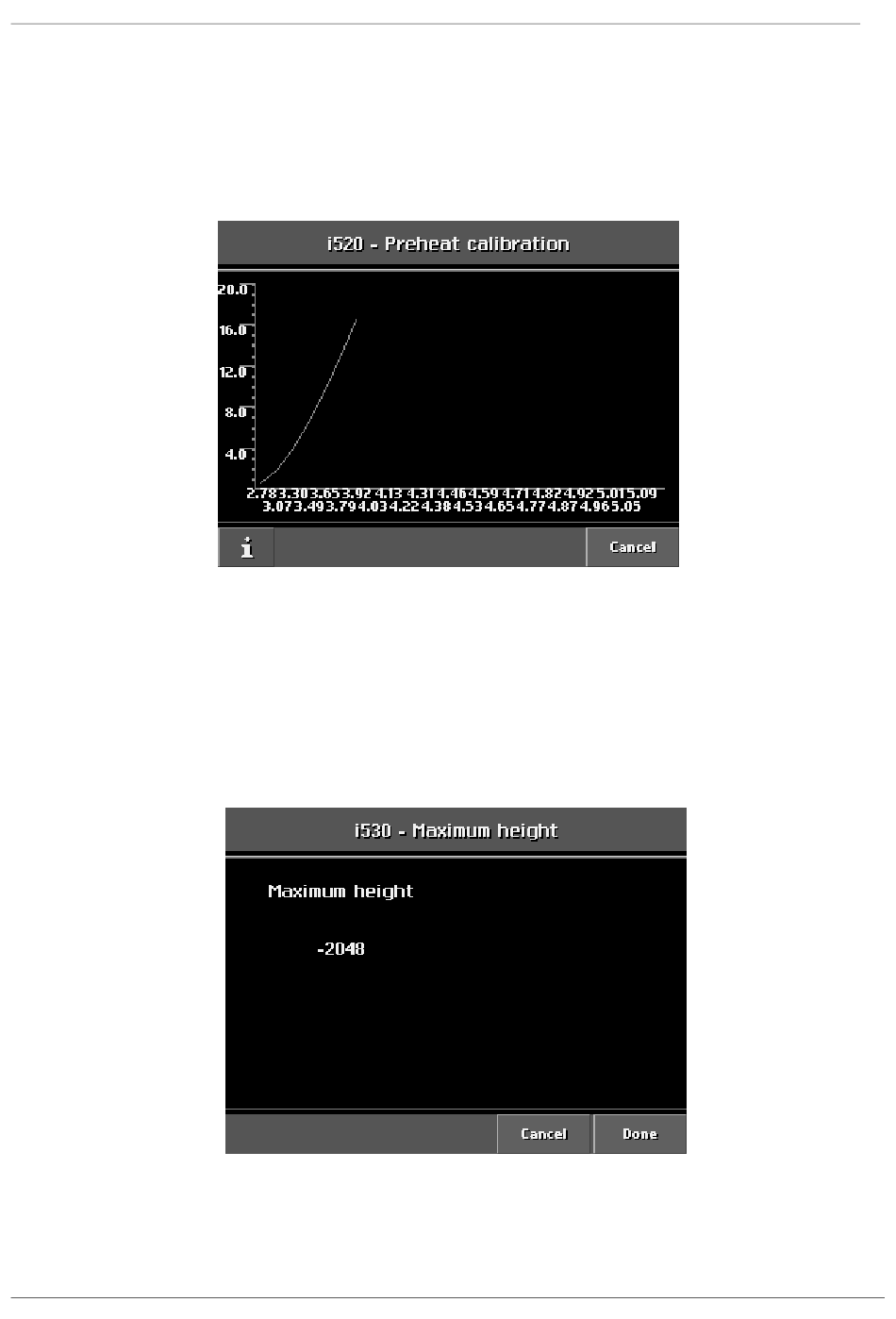

5.2 Preheat calibration

The X-ray tube filament preheat calibration must be performed whenever the tube head and/
or the Power supply PCB is replaced. To perform the X-ray tube filament preheating calibra-
tion select Preheat calibration (i520) on the Service settings display. Press and hold the
exposure switch until the series of exposures ends.
Figure 36

5.3 Maximum height

To set the maximum height of the unit select Maximum height (i530) on the Service settings
display. Drive the unit to the desired maximum height with the height adjusting buttons and
touch the Done field.
Figure 37
B-24 ProMax X-ray unit with Dimax3
SERVICE SETTINGS
Technical Manual
