OTHER ADJUSTMENTS AND CALIBRATIONS
Chapter E - C-ARM AND IMAGING ARM
From the list on the i640 display that appears select Position sensor calibration (i64.1).

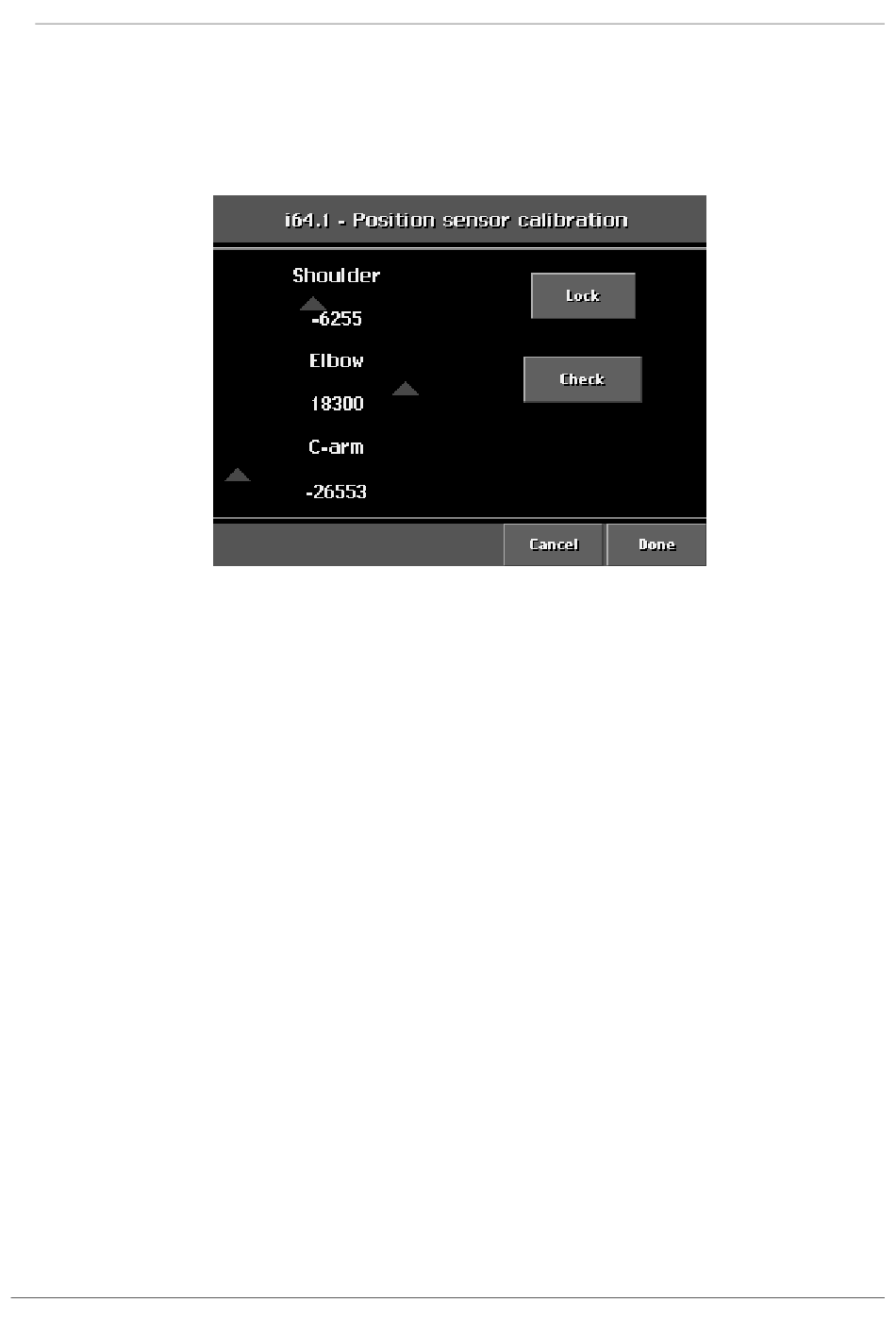

The display shown below appears. Drive the C-arm to the calibration position by touching the
Check field. In case all the three arm angle sensors are correctly calibrated, three empty
arrows (i.e. black) are shown on the display. In case an arrow is filled (white) the respective
angle sensor is not correctly calibrated.
Figure 91
ProMax X-ray unit with Dimax3 E-57
Technical Manual
