2.1 Attaching the second primary collimator covers

Slide the collimator cover box to its position and attach it with the two attachment screws by
using the 4mm Allen key (Fig. 96, 1).
Slide the collimator cover to its position and attach it with the attachment screw by using the
2mm Allen key (Fig. 96, 2).
Collimator plate
Cover box
1
Collimator cover
2

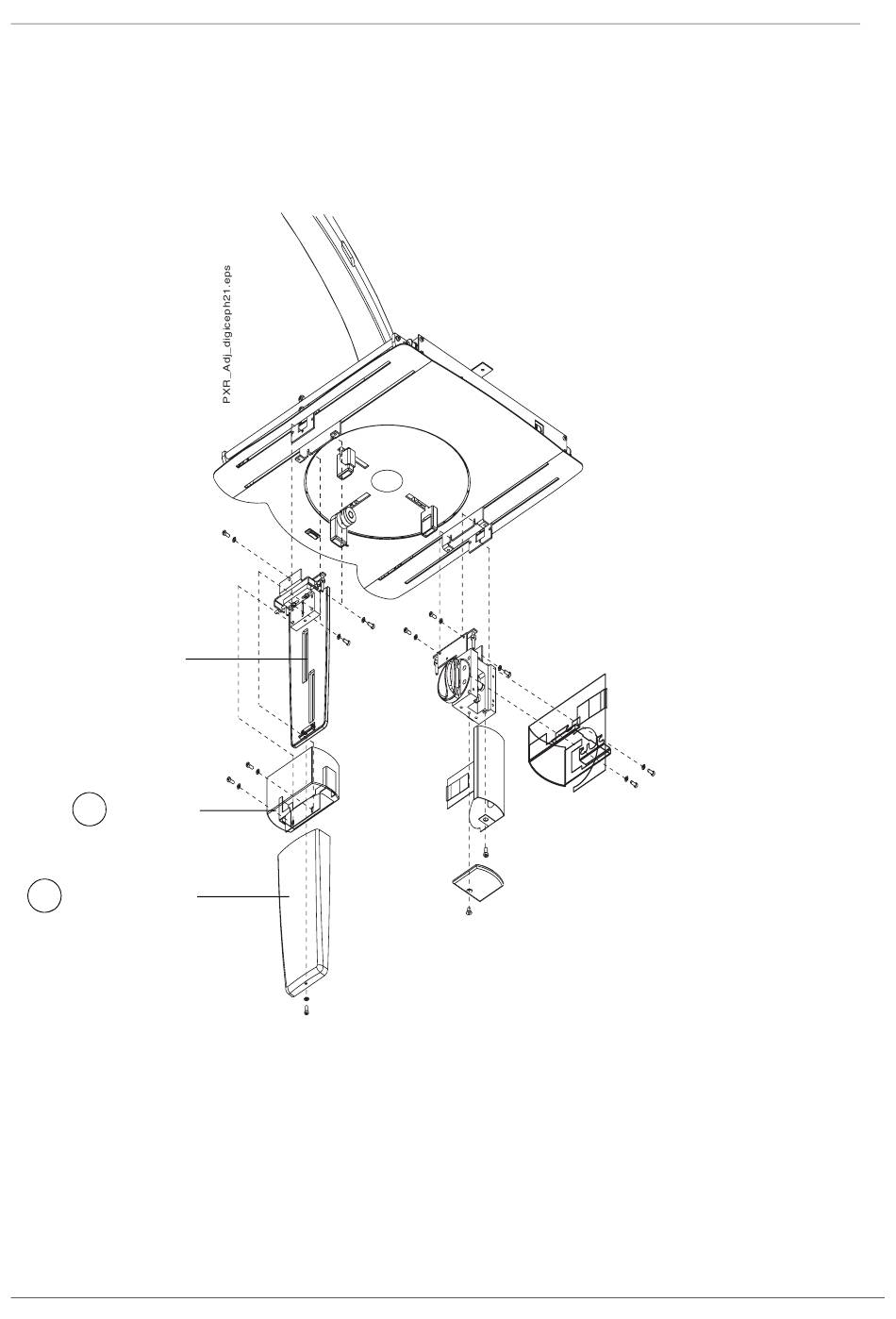

Figure 96
