1.15 Calibrating the cephalostat sensor head

Remove the sensor alignment tool from the cephalostat sensor head connector. Attach the
sensor head to the connector.
Remove the nasial positioner and the ear posts from their holders. Attach the cephalostat cal-
ibration tool to the right-hand ear post holder (near the sensor head).

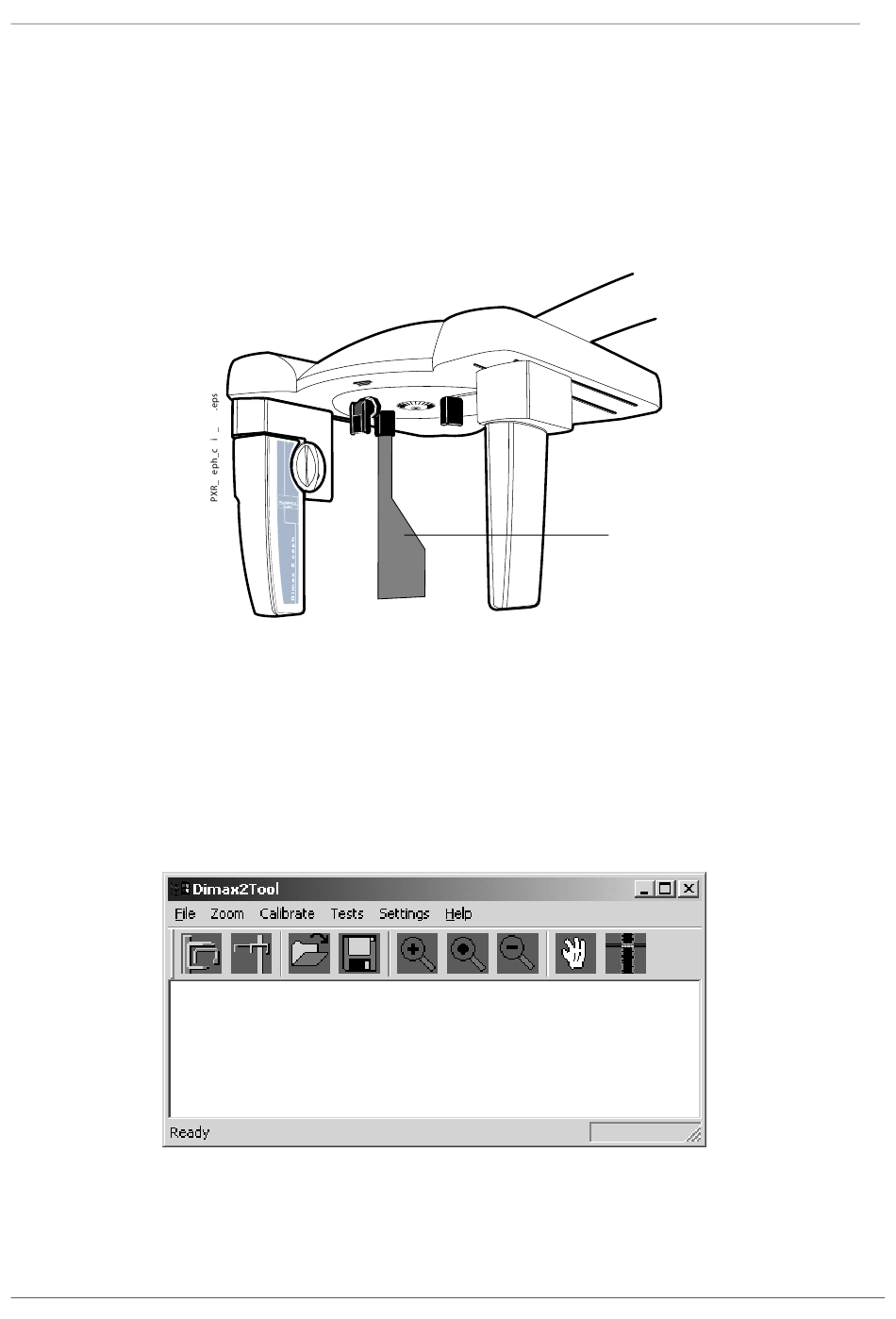

Figure 67
Make sure that the second primary collimator is in its position.
In the Main display select cephalometric program.
Start the Dimax3 calibration program by double-clicking the Dimax2Tool.exe program icon
located in the Dimaxis program folder. The Dimax2Tool window appears.
Figure 68
