PANORAMIC BEAM AND PATIENT POSITIONING MECHA- Chapter E - C-ARM AND IMAGING ARM
Panoramic beam vertical position
NOTE The lower border limiting plate should not move when the upper limiting plate is mov-
ing to its programmed position. Program the upper limit first.
If the X-ray beam is too low or too high, the vertical position of the beam must be adjusted.

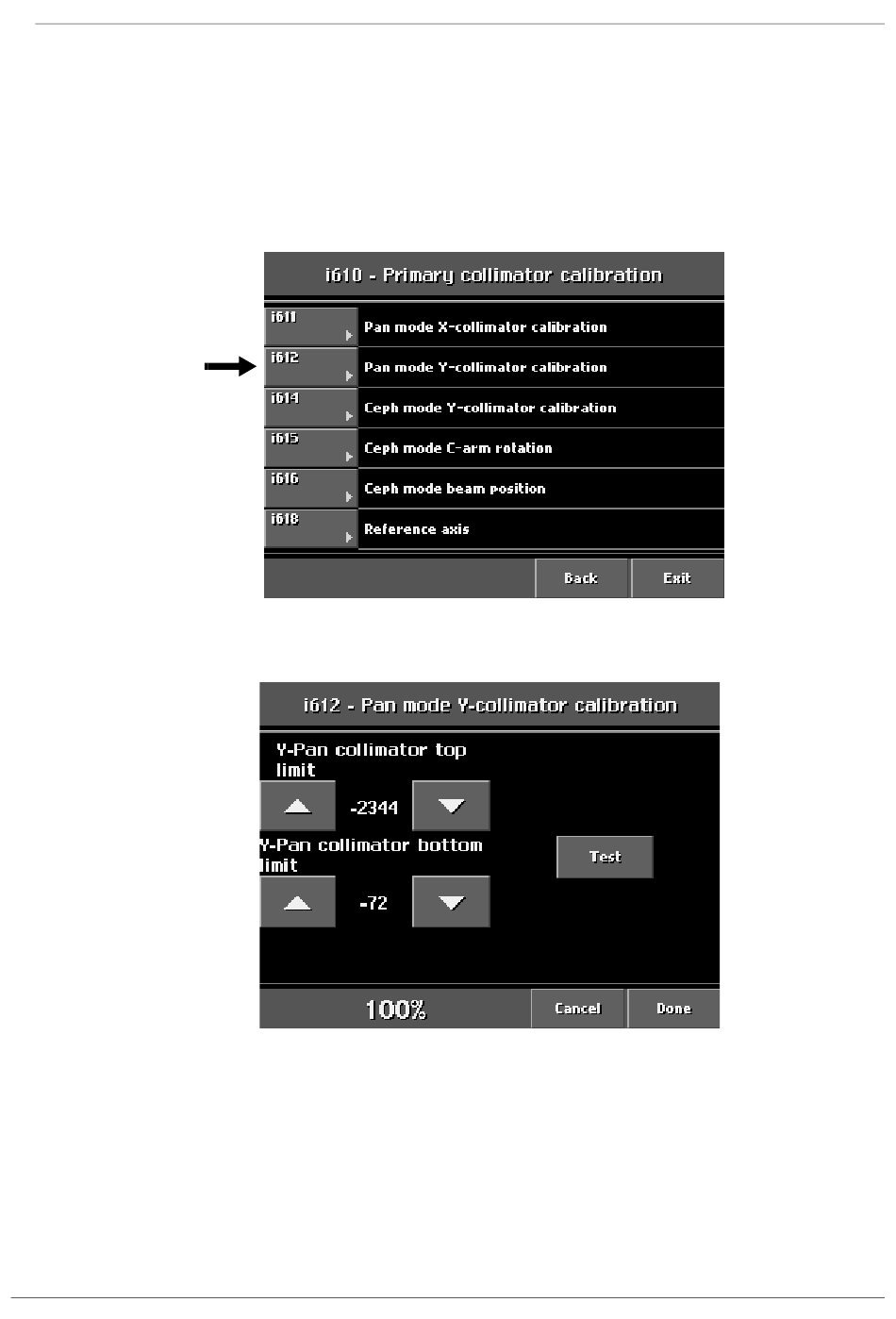

From the display that appears when you selected Technical calibrations select Primary colli-
mator calibration (i610). From the i610 display select Pan mode Y-collimator calibration
(i612).
Figure 19
The Pan mode Y-collimator calibration(i612) display appears.
Figure 20
Adjust the upper limit value of the X-ray beam with the Y-Pan collimator top limit arrow
fields. Drive the primary collimator to the selected position by pressing the Test field. Protect
yourself from radiation and press the exposure button to check the X-ray beam upper edge
position. If necessary, repeat the procedure.
Adjust the lower limit value of the X-ray beam with the Y-Pan collimator bottom limit arrow
fields. Drive the primary collimator to the selected position by pressing the Test field. Protect
yourself from radiation and press the exposure button to check the X-ray beam lower edge
position. If necessary, repeat the procedure. Accept the new position and exit the calibration
mode by touching the Done field.
