Chapter A - GENERAL & TECHNICAL DATA

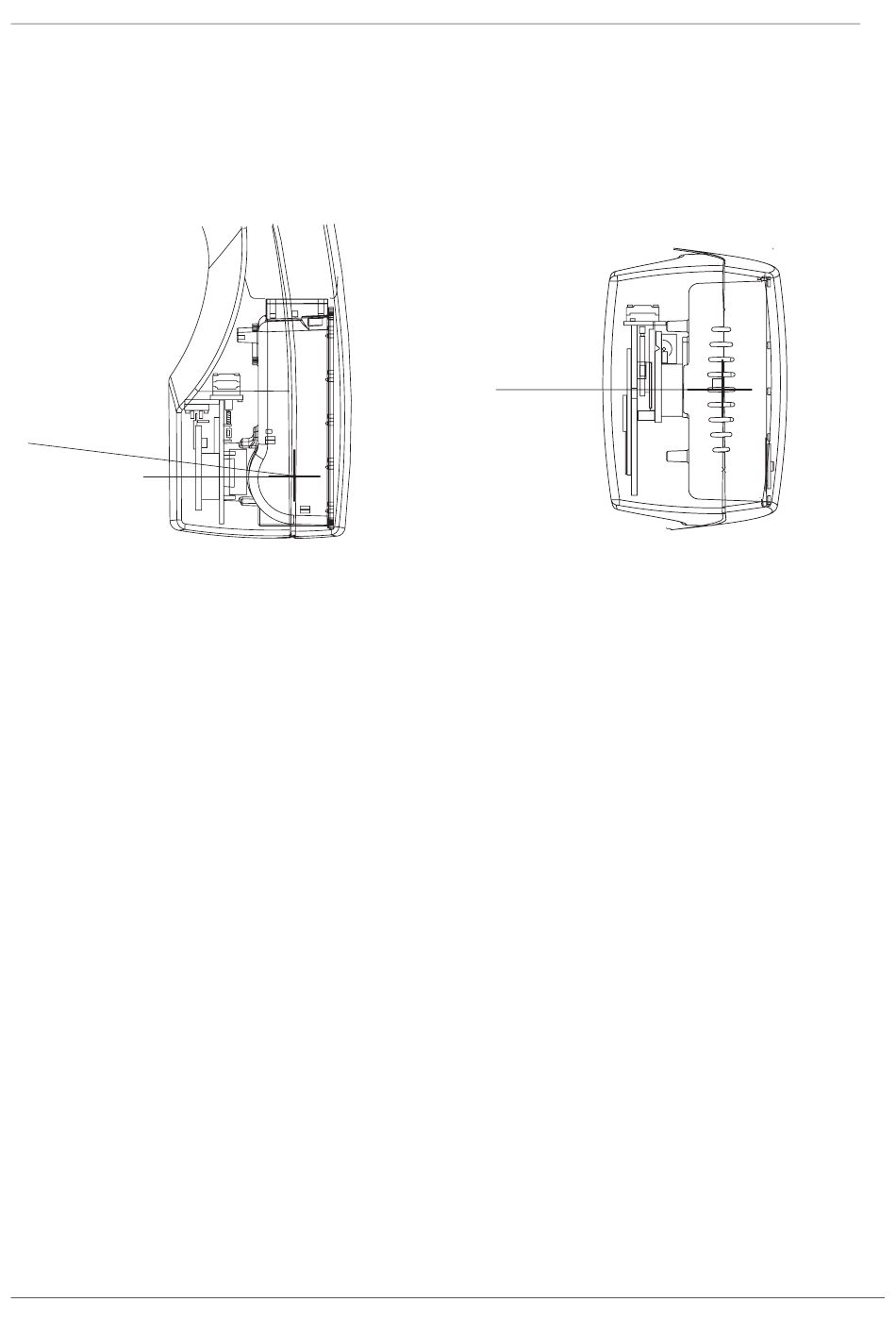

Reference axis to which the target angle and the focal spot
characteristics of the tube head assembly refer
7º
Target angle with respect to the reference axis
5°
Dimensions of the tube head assembly
(WxHxD) 235 mm x 340 mm x 120 mm
Weight of the tube head assembly
10.3 kg without collimator assembly
11.2 kg with collimator assembly
Values of loading factors concerning leakage radiation
84 kV, 16 mA
Tolerances of the focal spot on the reference axis
X= ±0.5 mm (sideways)
Y= ±0.5 mm (in depth)
Z= ±0.5 mm (in height)
