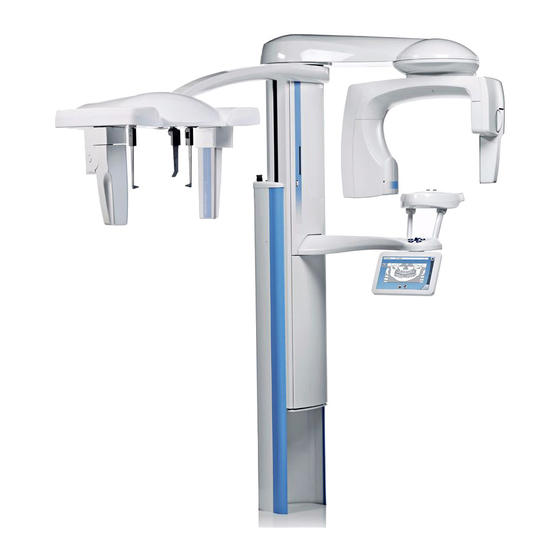

- Page 1 Planmeca ProMax ® Planmeca ProTouch installation instructions 10033987...
-
Page 3: Table Of Contents
Table of contents Introduction..............................1 Replacing Ethernet PCB..........................2 Replacing touch screen..........................4 Connecting GUI cable..........................12 Upgrade X-ray unit software........................13 Installation manual Planmeca ProTouch installation manual... - Page 4 IEC 60364 - equipment is used according to the operating instructions. Planmeca pursues a policy of continual product development. Although every effort is made to produce up-to-date product documentation this publication should not be regarded as an infallible guide to current specifications. We reserve the right to make changes without prior notice.
-
Page 5: Introduction
1 Introduction 1 Introduction This document contains instructions for installing the ProTouch 5.0 display to the Planmeca ProMax X-ray unit as a retrofit installation. In addition to these instructions, you need the X-ray unit's technical manual during the installation. NOTE Read these instruction carefully before installation. -
Page 6: Replacing Ethernet Pcb
2 Replacing Ethernet PCB 2 Replacing Ethernet PCB NOTE If the X-ray unit is equipped with 3D Ethernet PCB or ProMax Ethernet PCB, the PCB must be replaced with 4D Ethernet PCB. 1. Switch off the X-ray unit. 2. Remove the column front cover plate according to the instructions given in X-ray unit’s Technical manual. - Page 7 CPU PCB and 4D Ethernet PCB (2). 8. Switch on the X-ray unit. 9. Change the ProMax IP address to 10.0.0.1 and Netmask to 255.255.255.0 on the TCP/IP display (i48.2). For more instructions, refer to the X-ray unit’s Technical manual.
-
Page 8: Replacing Touch Screen
2. Unscrew the four attachment screws of the user interface box and the back cover attachment screws using a T8 Torx key. 3. Detach the grounding cables (1) and disconnect the GUI cable (2). Planmeca ProTouch installation manual Installation manual... - Page 9 Allen key (white arrows). Loosen the joint attachment screw using a 4 mm Allen key (black arrow). Remove the user interface. 5. Unscrew two locking plate attachment screws using a 2.5 mm Allen key and remove the plate. Installation manual Planmeca ProTouch installation manual...
- Page 10 (4 & 5) supplied with the touch screen using a 3 mm Allen key. Attach the cable tie holders to the cover (6). 7. Unscrew the grounding lead attachment screw using a 2.5 mm Allen key (white arrow) and remove the grounding lead. Planmeca ProTouch installation manual Installation manual...
- Page 11 8. Add some high strength locking agent (Loctite 2700 or respective) to the joint pin attachment screw. 9. Make sure that the five spring washers are inserted to the screw as shown in the figure below. Installation manual Planmeca ProTouch installation manual...
- Page 12 10. Place the screw and the joint pin to the shaft as shown in the figure below. 11. Place the plastic bushing to the support joint (black arrow) Route the GUI cable and grounding lead through the plastic bushing and support arm lower cover opening (white arrows). Planmeca ProTouch installation manual Installation manual...
- Page 13 12. Attach the user interface support to the patient arm cover using a 4 mm Allen key. Tighten the screw so that the user interface still rotates but stays in place when operated. 13. Route the grounding lead through the ferrite. Installation manual Planmeca ProTouch installation manual...
- Page 14 (4 in.) from the first cable tie (1). Connect the cables to each other with the RJ45 extension block. 16. Attach the support arm lower cover to its position. Be careful not to squeeze the cables. Planmeca ProTouch installation manual Installation manual...
- Page 15 (limit positions 1 and 2). 18. If needed, move the touch screen to position (3) and fully tighten the limiter screw using a T20 Torx screw. Installation manual Planmeca ProTouch installation manual...
-
Page 16: Connecting Gui Cable
4 Connecting GUI cable 4 Connecting GUI cable 1. Disconnect the GUI cable from the CPU PCB, connector J4. 2. Connect the GUI cable to the connector J6 on the 4D Ethernet PCB. Planmeca ProTouch installation manual Installation manual... -
Page 17: Upgrade X-Ray Unit Software
The first software update of the new touch screen takes several minutes. 3. Check the user interface operation. NOTE If needed, update all other ProMax X-ray system components (Reco PC, Romexis etc.) software to correspond the X-ray unit software, see the Planmeca Imaging Software Package bulletin for more information. - Page 20 Planmeca Oy | Asentajankatu 6 | 00880 Helsinki | Finland tel. +358 20 7795 500 | fax +358 20 7795 555 | sales@planmeca.com | www.planmeca.com...
