PANORAMIC BEAM AND PATIENT POSITIONING MECHA-
Technical Manual

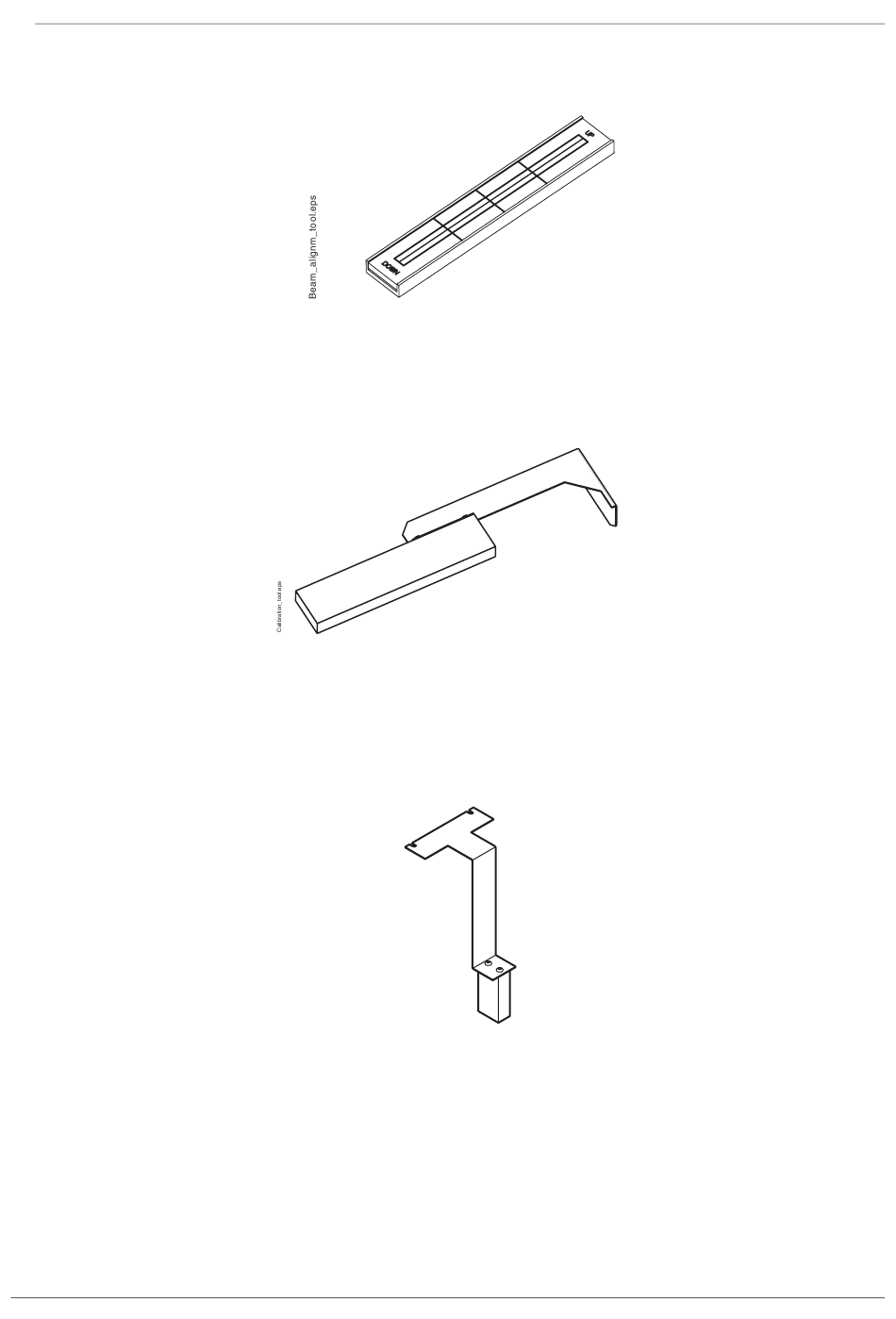

Beam alignment tool (part number 50972). For checking the position of the panoramic X-
ray beam.
Figure 5
Panoramic mode calibration block (part number 10004316). For calibrating the panoramic
sensor head.
Figure 6
AEC/DEC calibration tool (part number 10007501). For calibrating the dynamic exposure
control (DEC).
Figure 7
Chapter E - C-ARM AND IMAGING ARM
Beam alignment tool
ProMax X-ray unit with Dimax3 E-3
