Chapter H - CEPHALOSTAT
1.5 Adjusting the sensor head connector and sensor head
positions
Connector adjustment
The sensor head connector must be perpendicular to the head support in both directions
(sideways and in depth). Check the connector position in depth by using the spirit level as
shown on the Fig. 11 below.

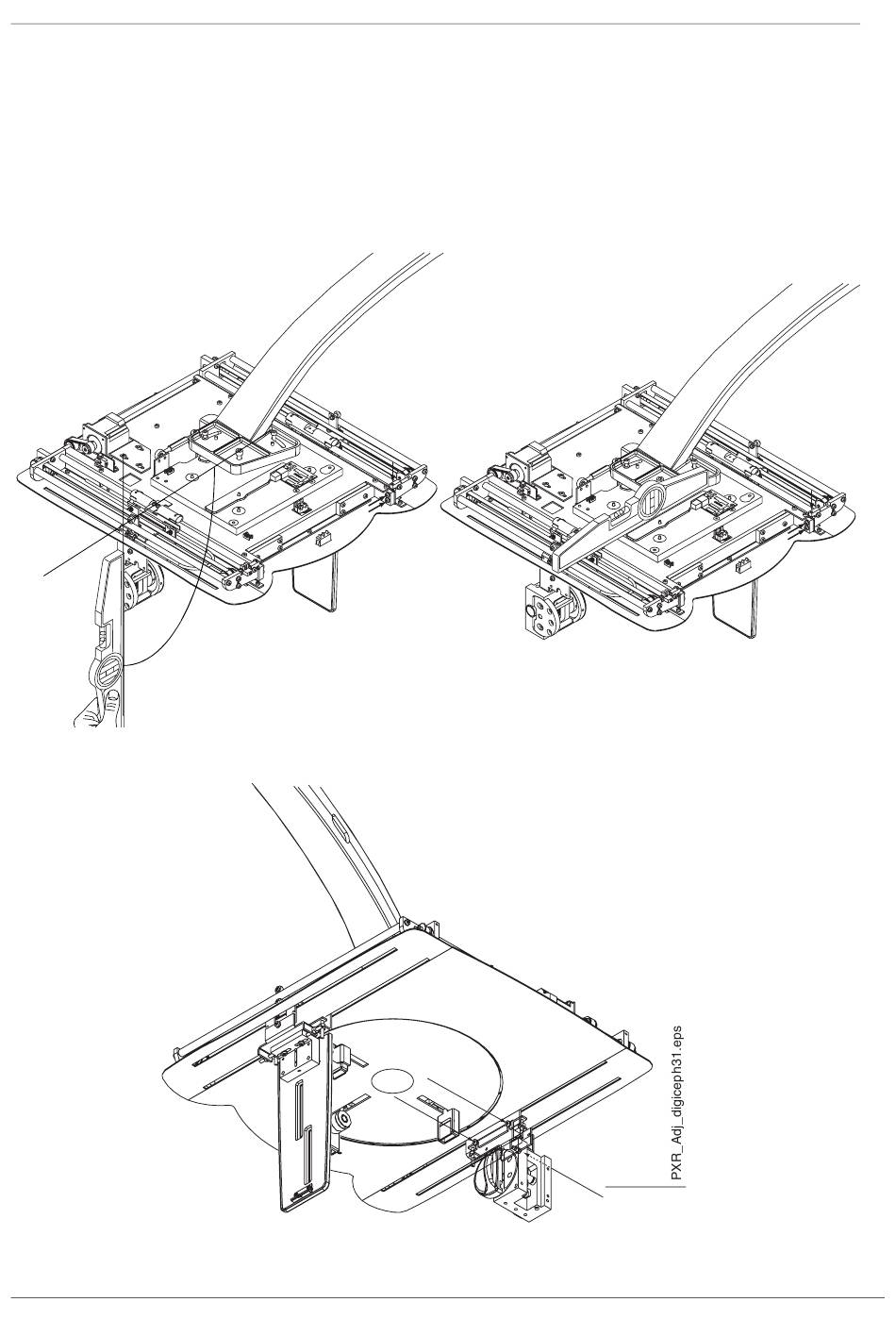

Figure 11
Loosen the three attachment screws of the connector.
Figure 12
H-6 ProMax X-ray unit with DImax3
90°
ADJUSTMENTS AND CALIBRATIONS
Loosen these three
attachment screws.
Technical manual
