ADJUSTMENTS
Chapter G - COLUMN

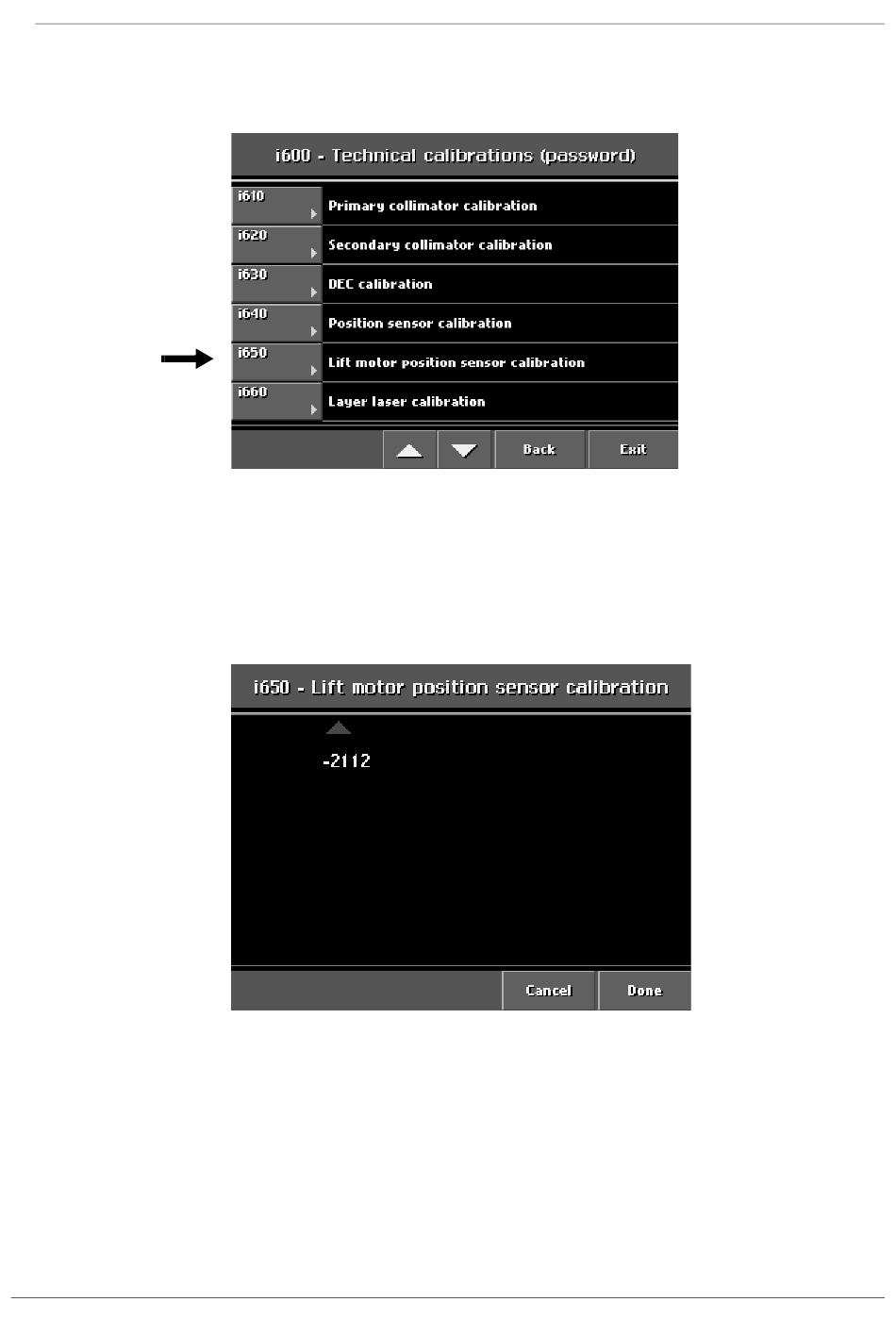

From the list on the i600 display that appears select Lift motor position sensor calibration
(i650).
Figure 8
The Lift motor position sensor calibration display appears. If the sensor is correctly calibrated,
an empty arrow (i.e. black) is shown on the display. In case an arrow is filled (white) the sen-
sor is not correctly calibrated.
Figure 9
ProMax X-ray unit with Dimax3 G-7
Technical Manual
