Collimator Assembly Screws Visible - Planmeca ProMax X-ray Instruction Manual

Chapter B - INFORMATION DISPLAYS
The unit calibrations are performed in this mode. Detailed description of calibrations are
given in respective sections later in this manual.

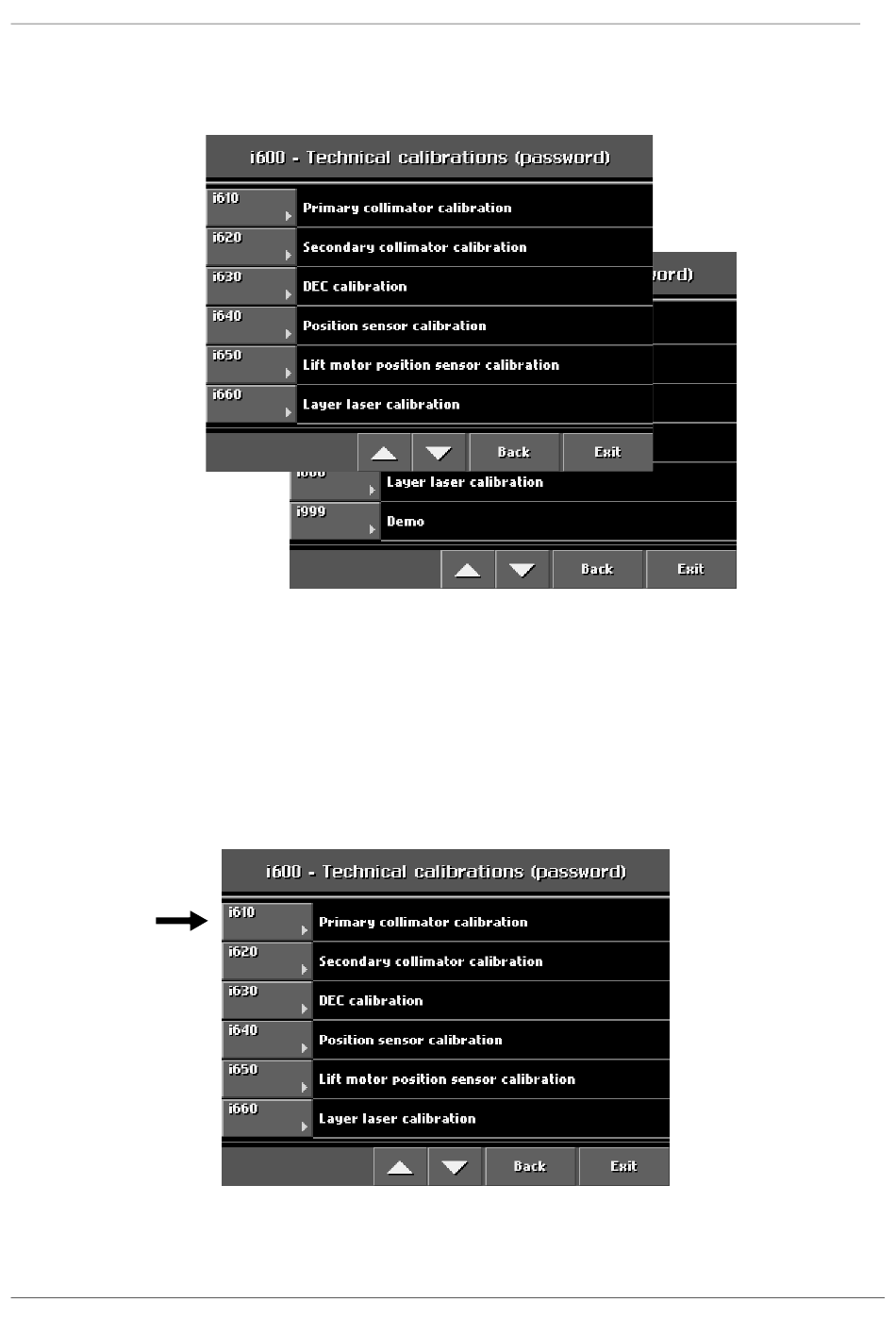

Figure 46

6.1 Collimator assembly screws visible

In this mode the primary collimator is driven so that the collimator attachment screws are visi-
ble and the collimator blades can be manually moved.
From the list on the i600 display that appears select Primary collimator calibration (i610) .
Figure 47
B-30 ProMax X-ray unit with Dimax3
TECHNICAL CALIBRATIONS
Technical Manual
