PANORAMIC BEAM AND PATIENT POSITIONING MECHA- Chapter E - C-ARM AND IMAGING ARM

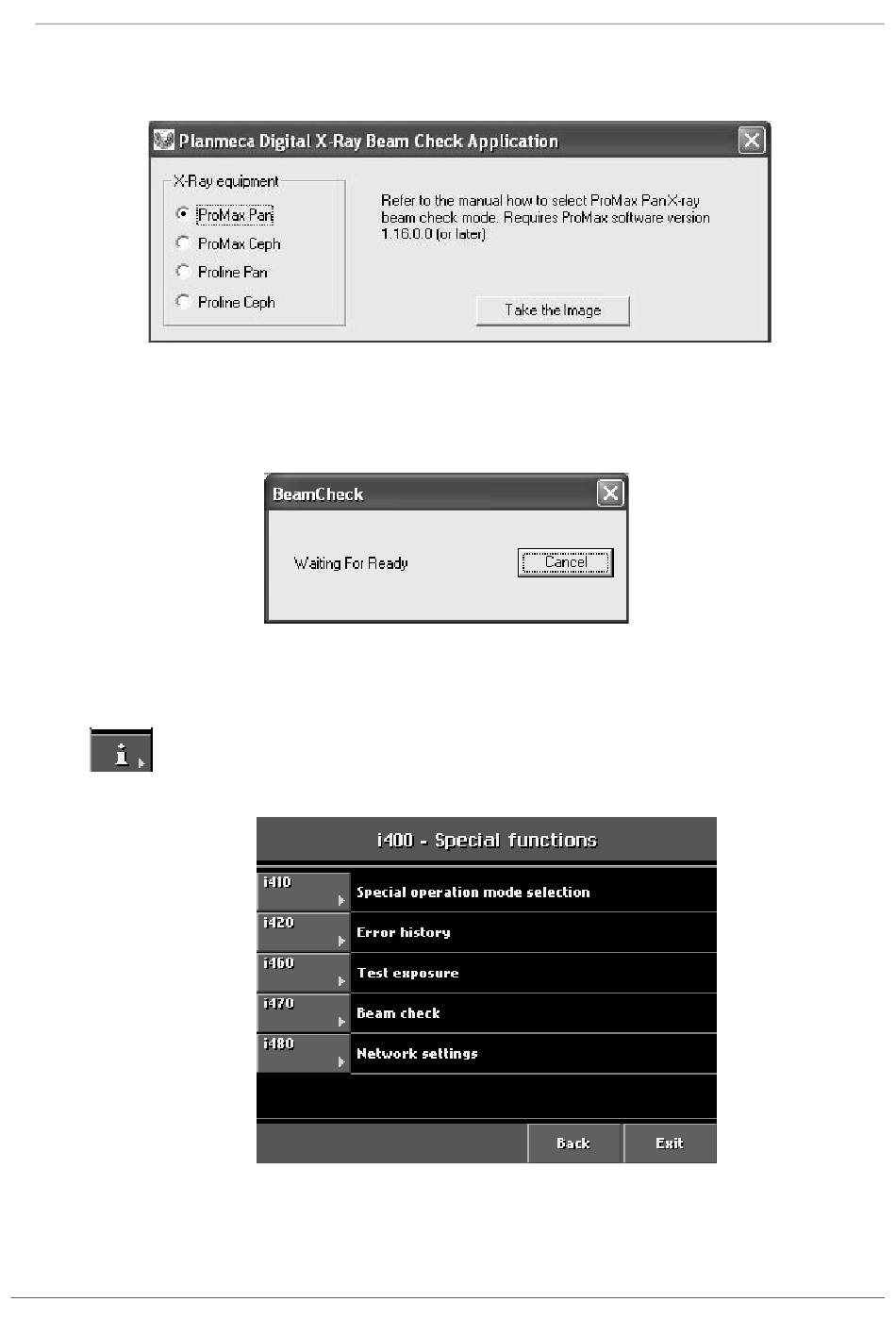

The window shown below appears on your computer. Select ProMax Pan from the X-ray
equipment list. Click Take the Image button.
Figure 27
The following window appears.
Figure 28
Go next to the Special functions on the ProMax control panel by clicking the i field on the left
corner of the display. Select i400 Special functions from the appearing display. Select i470
Beam Check on the appearing list (see below).
Figure 29
