Chapter E - C-ARM AND IMAGING ARM
Loosen the two screws located on the attachment mechanism with the 3 mm Allen key. Adjust
the head support angle with the two screws (use 3 mm Allen key) located on the side of the
mechanism. See Fig. 14 below.

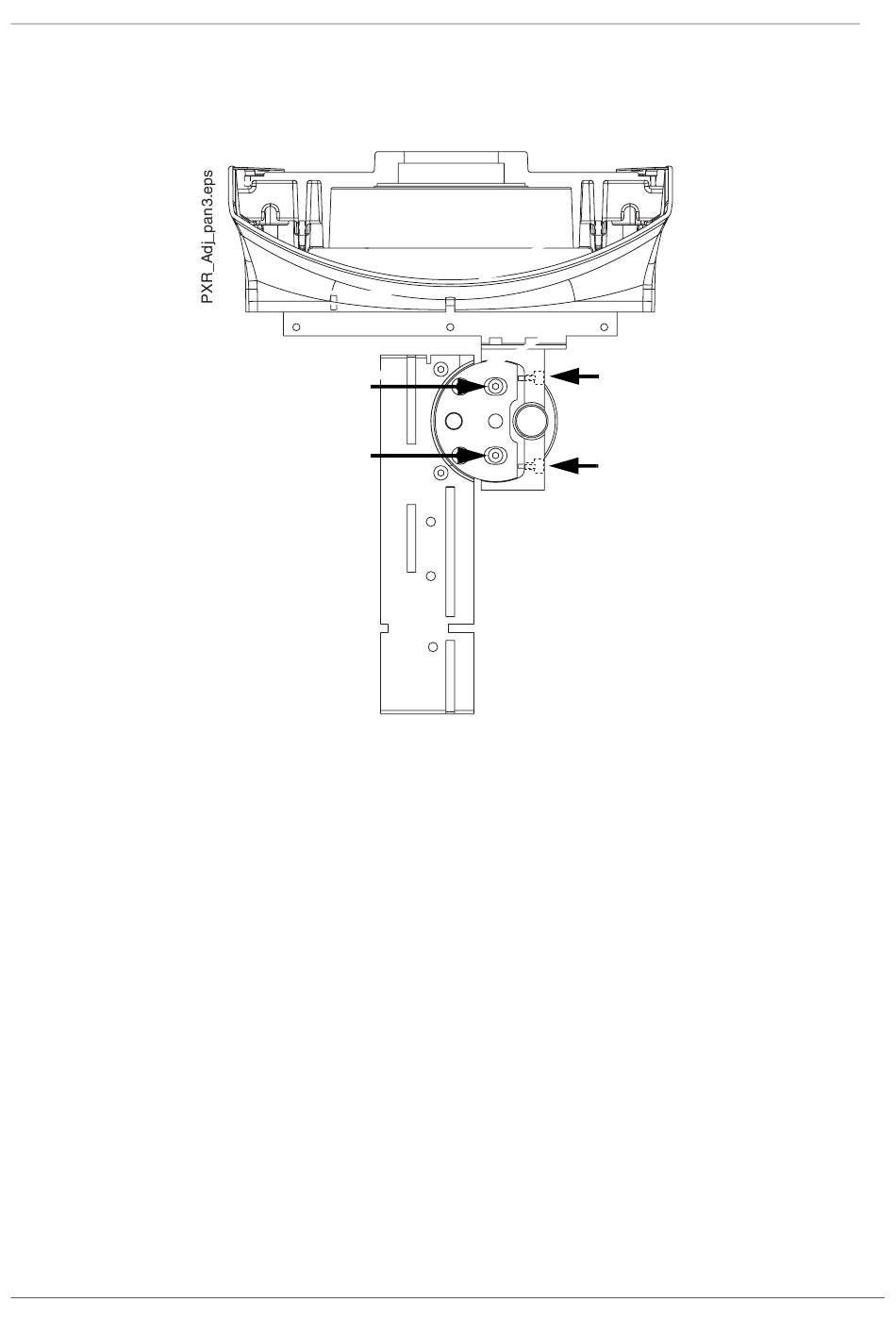

Figure 14
E-8 ProMax X-ray unit with Dimax3
Loosen these screws.
PANORAMIC BEAM AND PATIENT POSITIONING MECH-
Adjust the head angle with
these screws.
Technical Manual
