PANORAMIC BEAM AND PATIENT POSITIONING MECHA- Chapter E - C-ARM AND IMAGING ARM
1.8.3 Calibrating the sensor head, automatic procedure
NOTE Do NOT use the calibration block when using this calibration procedure.
Protect yourself from radiation and press the exposure button.

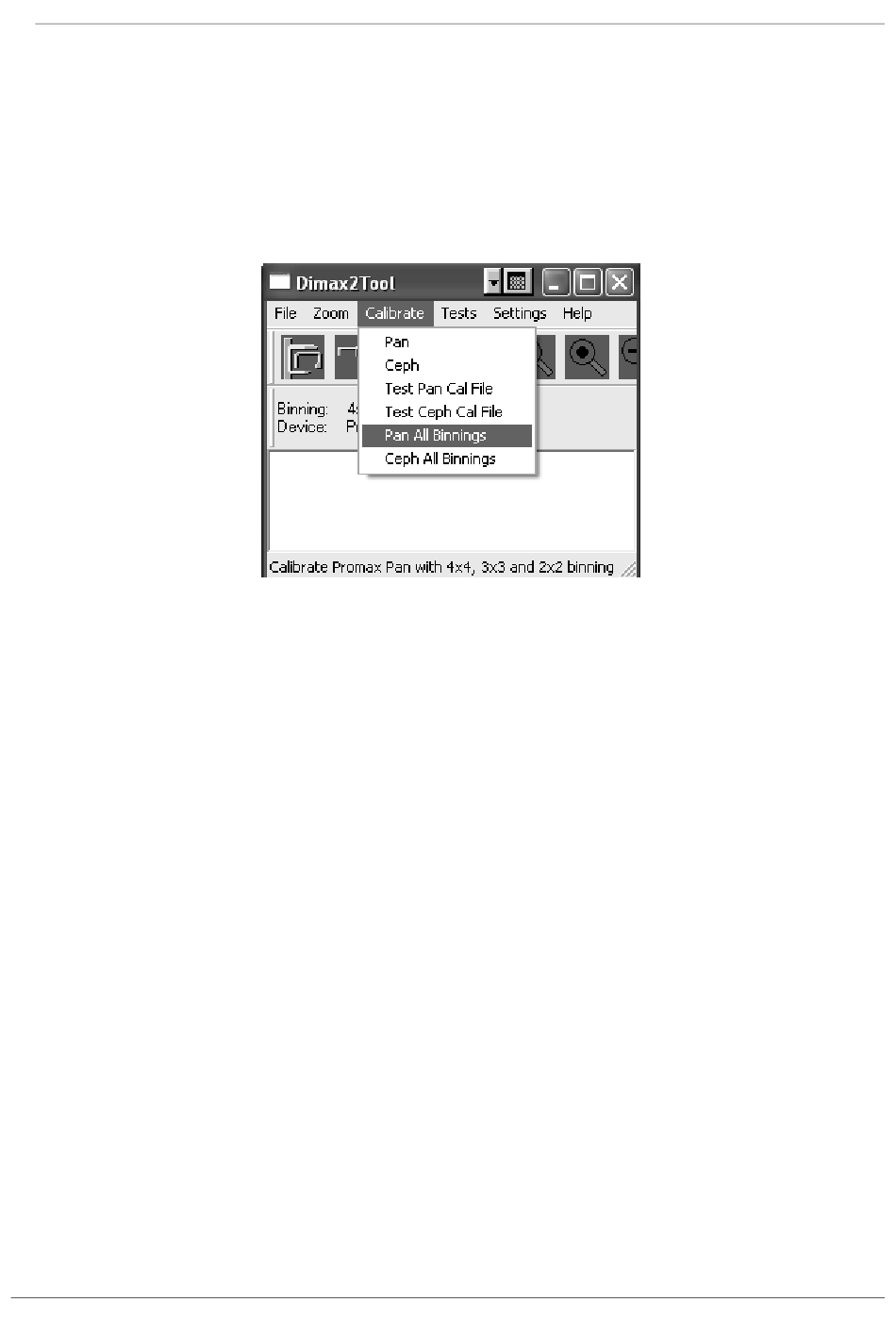

Select Pan All Binnings from the Calibrate menu. Do not release the exposure button.
Figure 49
Press and hold down the exposure button for the duration of the exposure cycle. After the
exposure cycle the image from the latest exposure (2x2; high resolution) is shown in the
Dimax2Tool window. The calibration image should be evenly grey. If it is not, calibrate the
sensor head manually as described in section 1.8.1 "Calibrating the sensor head, manual pro-
cedure" on page E-22. Note, that in this case all the binnings have to be calibrated.
