3.2 Removing the fixed sensor head holder covers

Remove the C-arm upper covers as described in section 3.1 "C-arm upper covers" on page
E-85.
The sensor head connector front cover is attached to the C-arm with Velcro tapes and can be
removed by pulling it from its position.

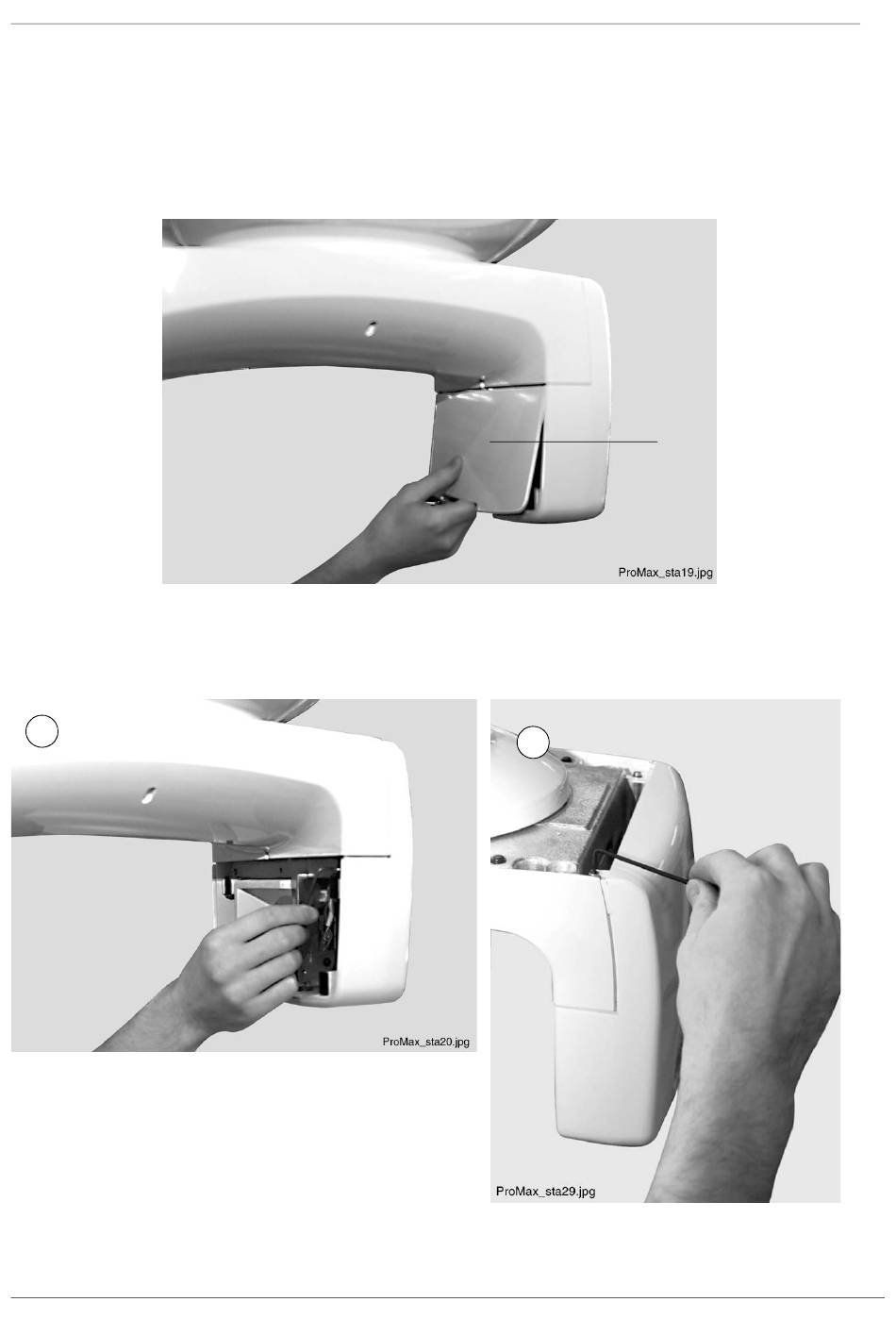

Figure 130
Unscrew the attachment screws of the sensor head connector back cover with the 2.5mm
Allen key: two from the inner side and the two from the top of the cover (2).
1
Figure 131
E-86 ProMax X-ray unit with Dimax3
REMOVING THE COVERS
Connector front cover
2
