Chapter H - CEPHALOSTAT

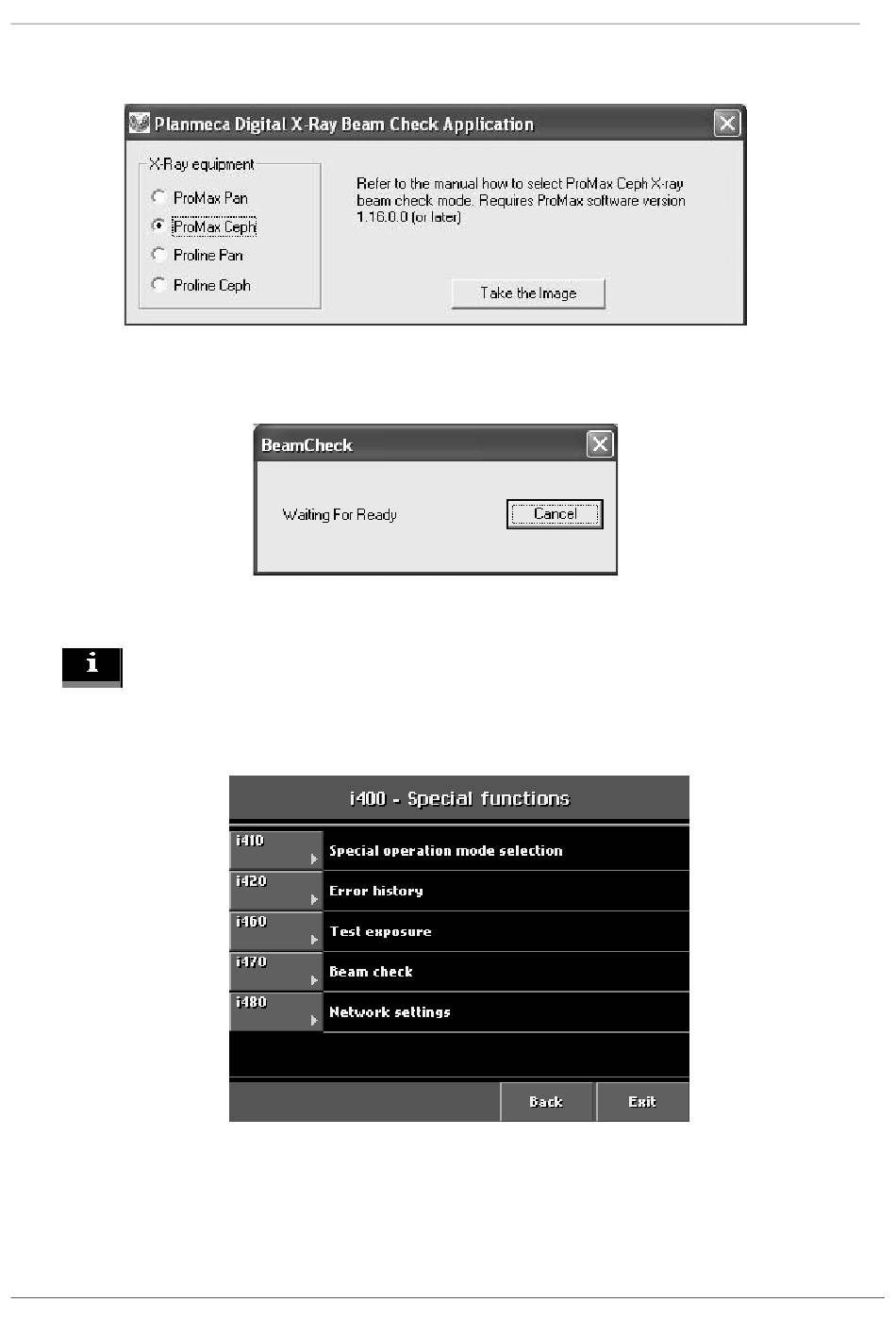

The window shown below appears on your computer. Select ProMax Ceph from the X-ray
equipment list. Click Take the Image button.
Figure 59
The following window appears.
Figure 60
Select next to the Special functions on the ProMax control panel by clicking the i field on the
left corner of the display. Select i400 Special functions from the appearing display.
Go to i470 Beam Check (see below).
Figure 61
H-34 ProMax X-ray unit with DImax3
ADJUSTMENTS AND CALIBRATIONS
Technical manual
