Chapter H - CEPHALOSTAT

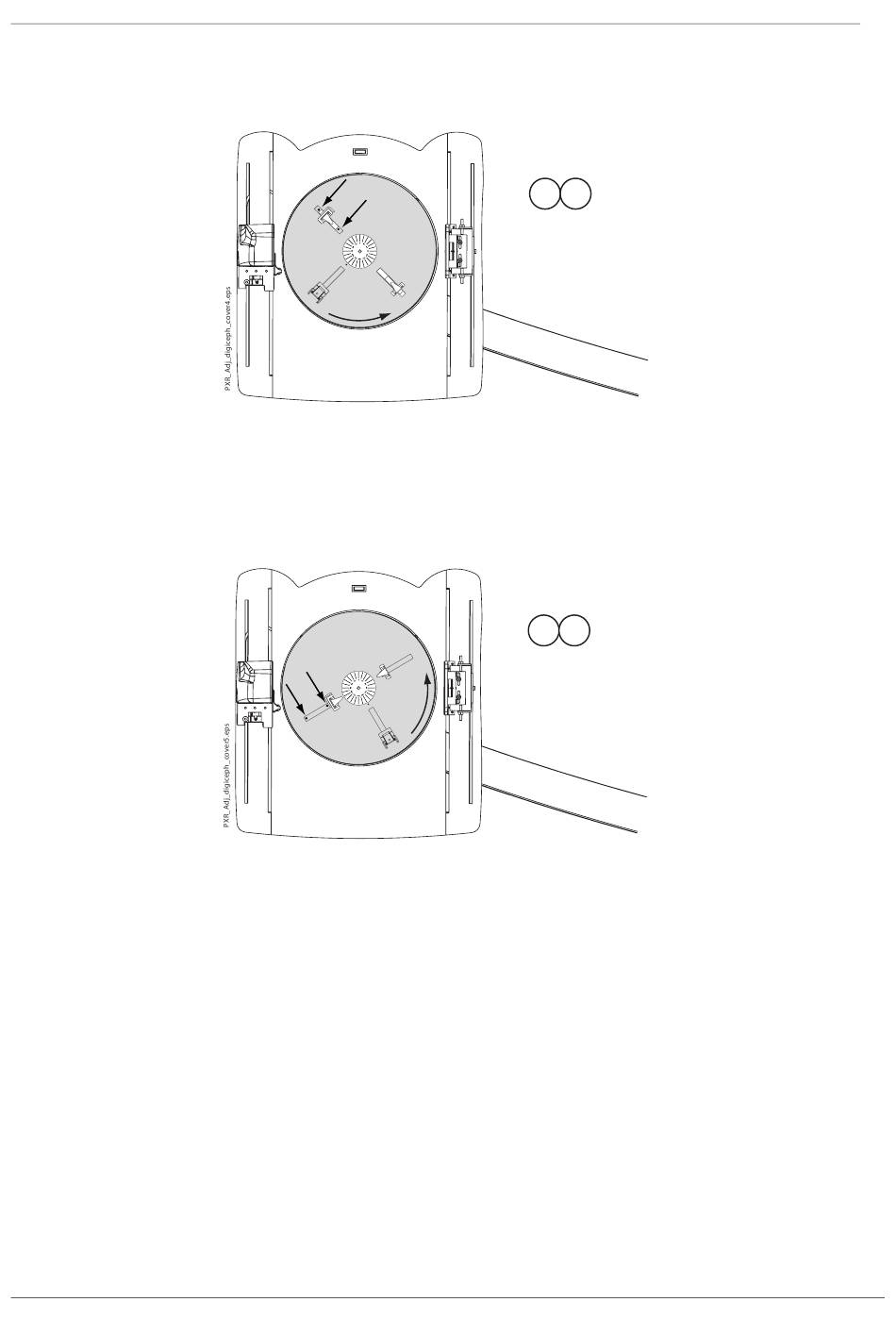

Rotate the head support to the 135° position as shown on the Fig. 114 below and unscrew the
attachment screws number 4 and 5 with the 3mm Allen key.
Figure 114
Rotate the head support to the 150° position as shown on the Fig. 115 below and unscrew the
attachment screws number 6 and 7 with the 3mm Allen key.
Figure 115
Loosen the attachment screw of the front housing mounting plate with the 3mm Allen key
(Fig. 110, 8) and remove the housing.
Attach the housings to the cephalostat head support in reverse order.
H-64 ProMax X-ray unit with DImax3
135˚
150˚
REMOVING THE HOUSINGS AND COVERS
4 5
6 7
