Chapter F - PATIENT SUPPORT ARM

2.2 Support arm lower cover

Detaching the user interface
1)
Unscrew the back cover attachment screw (PT 3x12 rst WN 1451 torx) and remove the cover
(Fig. 11, 1).
2)
Disconnect the graphic interface cable from the connector J3 on the GUI PCB (Fig. 11, 2).
3)
Unscrew the four attachment screws of the user interface box (PT 3x12 rst WN 1451 torx)
and remove the box (Fig. 11, 3).

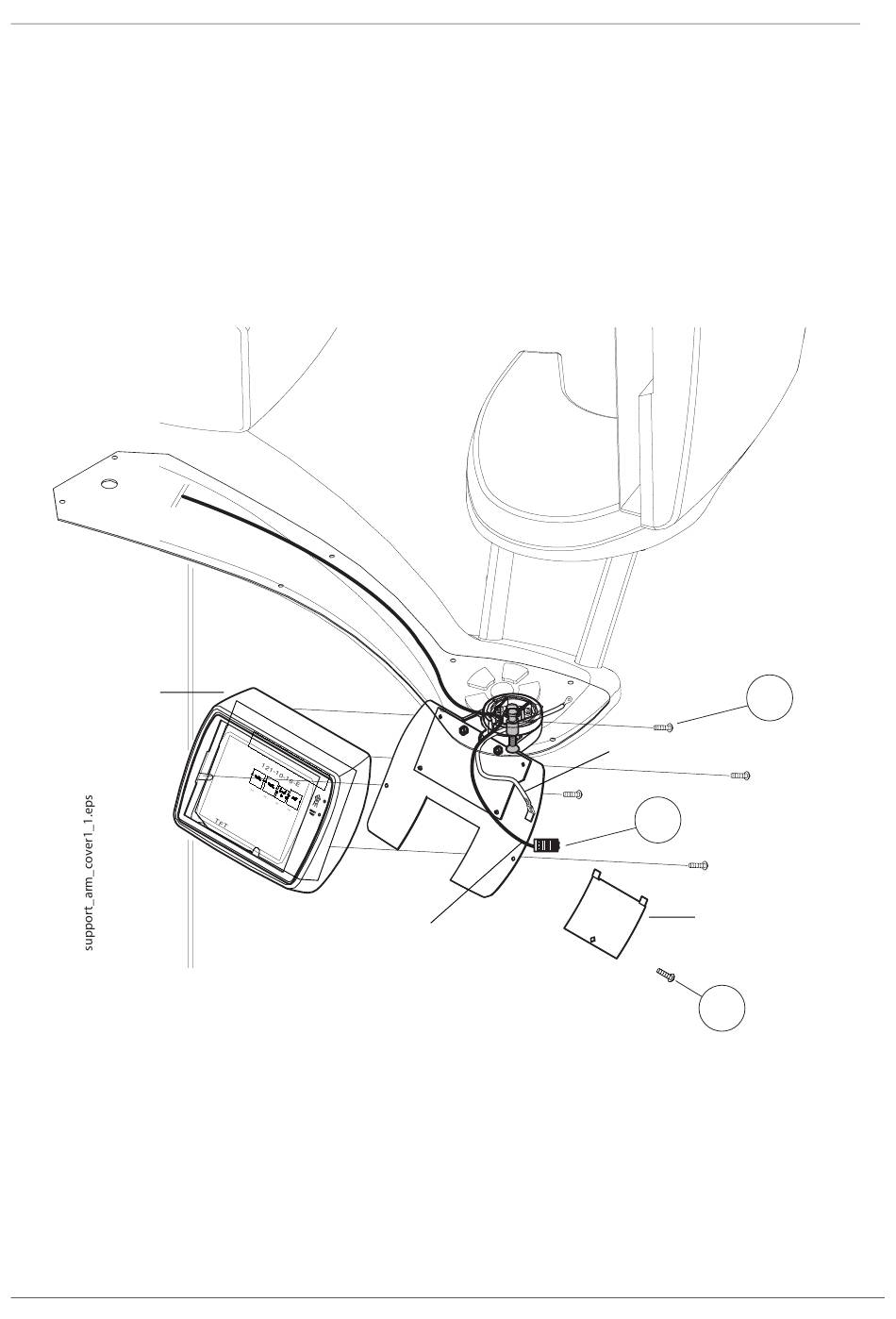

User interface box
Figure 11
F-8 ProMax X-ray unit with Dimax3
Graphic interface cable
REMOVING THE COVERS
Grounding cable
2
J3
Back cover
1
3
Technical Manual
