Chapter H - CEPHALOSTAT

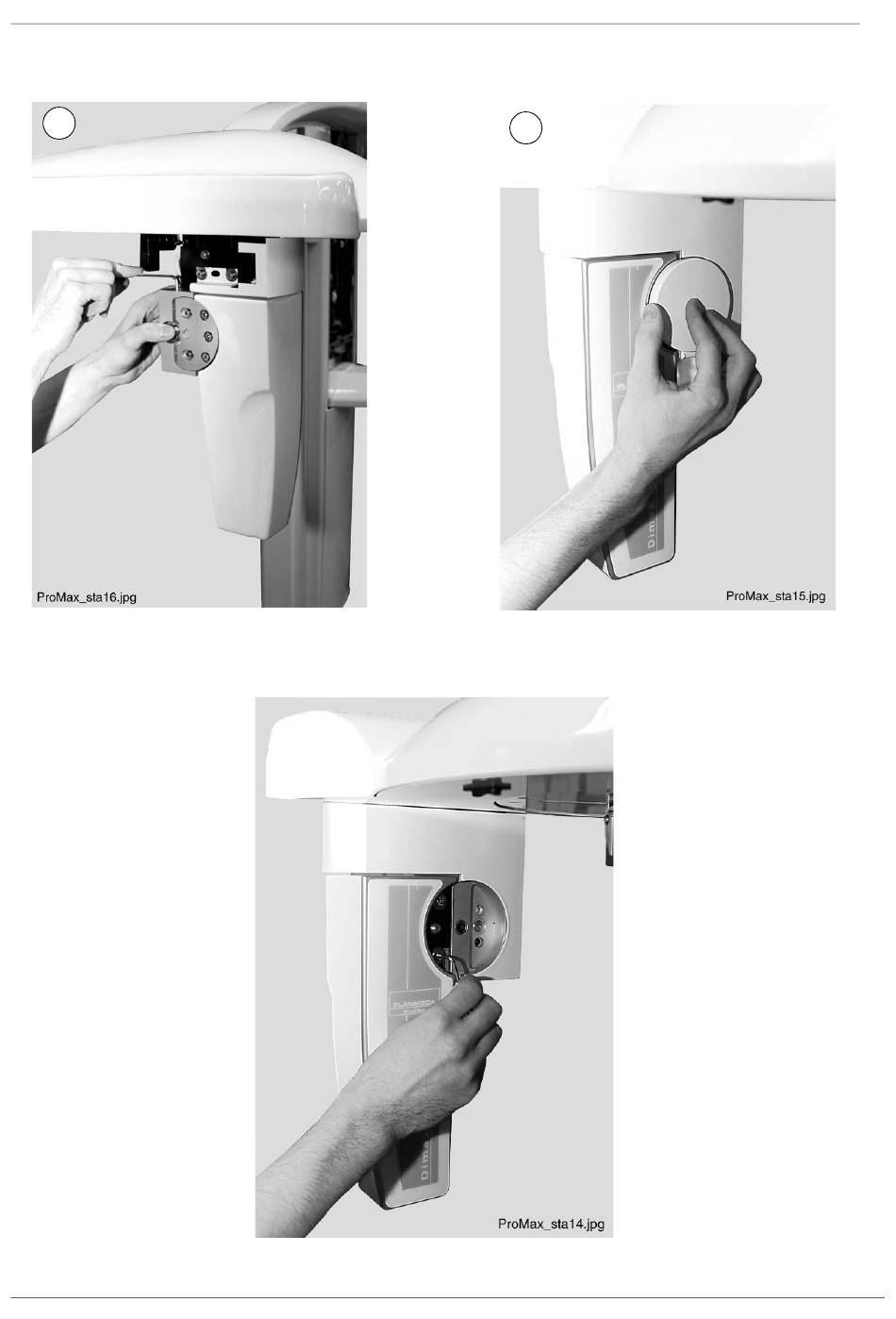

Loosen the button axle attachment screw with 3mm Allen key and push the button axle
outwards (Fig. 106, 1). Remove the locking plate from the connector (Fig. 106, 2).
1
Figure 106
Unscrew the sensor head locking screws from the attachment pins with 3mm Allen key.
Remove the screws and washers.
Figure 107
H-60 ProMax X-ray unit with DImax3
DETACHING AND ATTACHING THE SENSOR HEAD
2
Technical manual
