REPLACING THE SENSOR HEAD
Chapter E - C-ARM AND IMAGING ARM

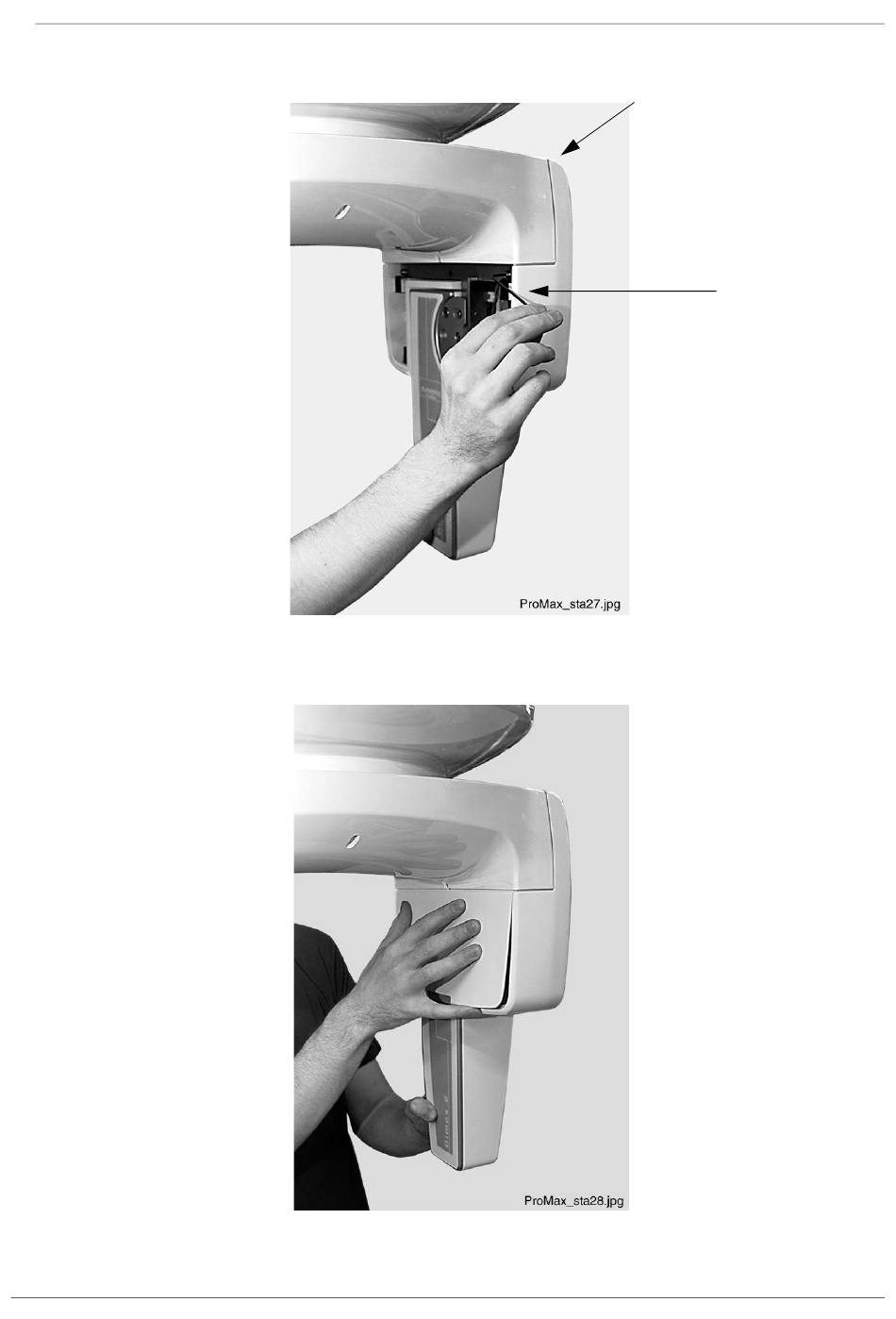

Attach the back cover to its position with the four attachment screws with 2.5mm Allen key.
Attachment screws
Attachment screws
Figure 145
Press the front cover to its position.
Figure 146
The sensor head is removed in reverse order.
ProMax X-ray unit with Dimax3 E-97
