Chapter G - COLUMN

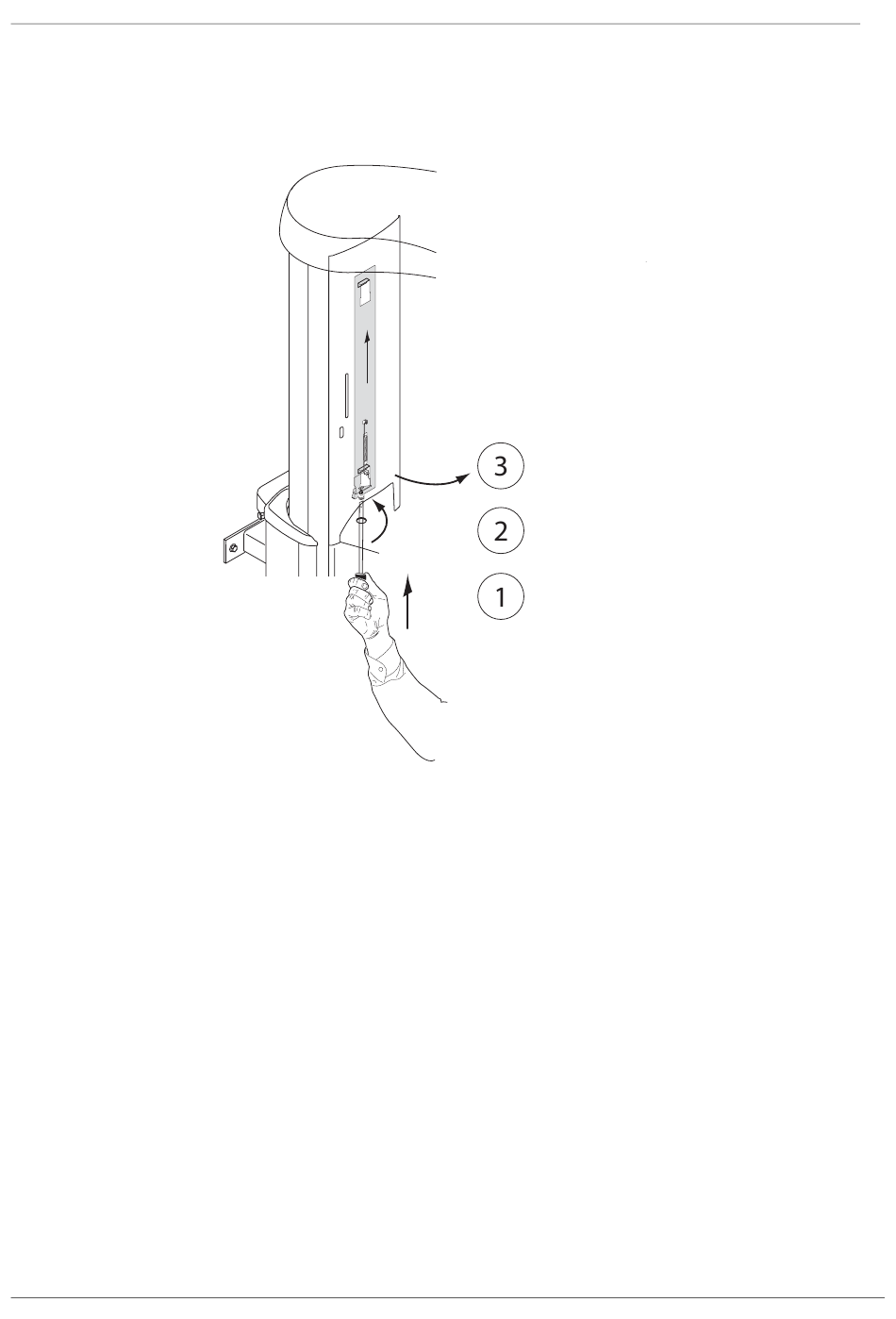

Press the locking bolt located behind the front panel (Fig. 13, 1) and turn the bolt 90° counter-
clockwise (Fig. 13, 2). Detach first the lower part of the panel from the column and then pull
the panel out from its position (Fig. 13, 3).
Figure 13
G-10 ProMax X-ray unit with Dimax3
90°
REMOVING THE COVERS
Technical Manual
