PANORAMIC BEAM AND PATIENT POSITIONING MECHA- Chapter E - C-ARM AND IMAGING ARM
In case the ±1 deviation cannot be reached by moving the patient support table, the position
of the shoulder arm can be adjusted as follows. Make sure that the alignment pin is in the hole
in the shoulder joint (Fig. 65, 1). Loosen the screws of the adjustment plate (Fig. 65, 2) and
move the shoulder arm (Fig. 65, 3) to required direction by moving the adjustment plate (Fig.
65, 2) until the line on the alignment tool is in correct position.
2
1
3
3

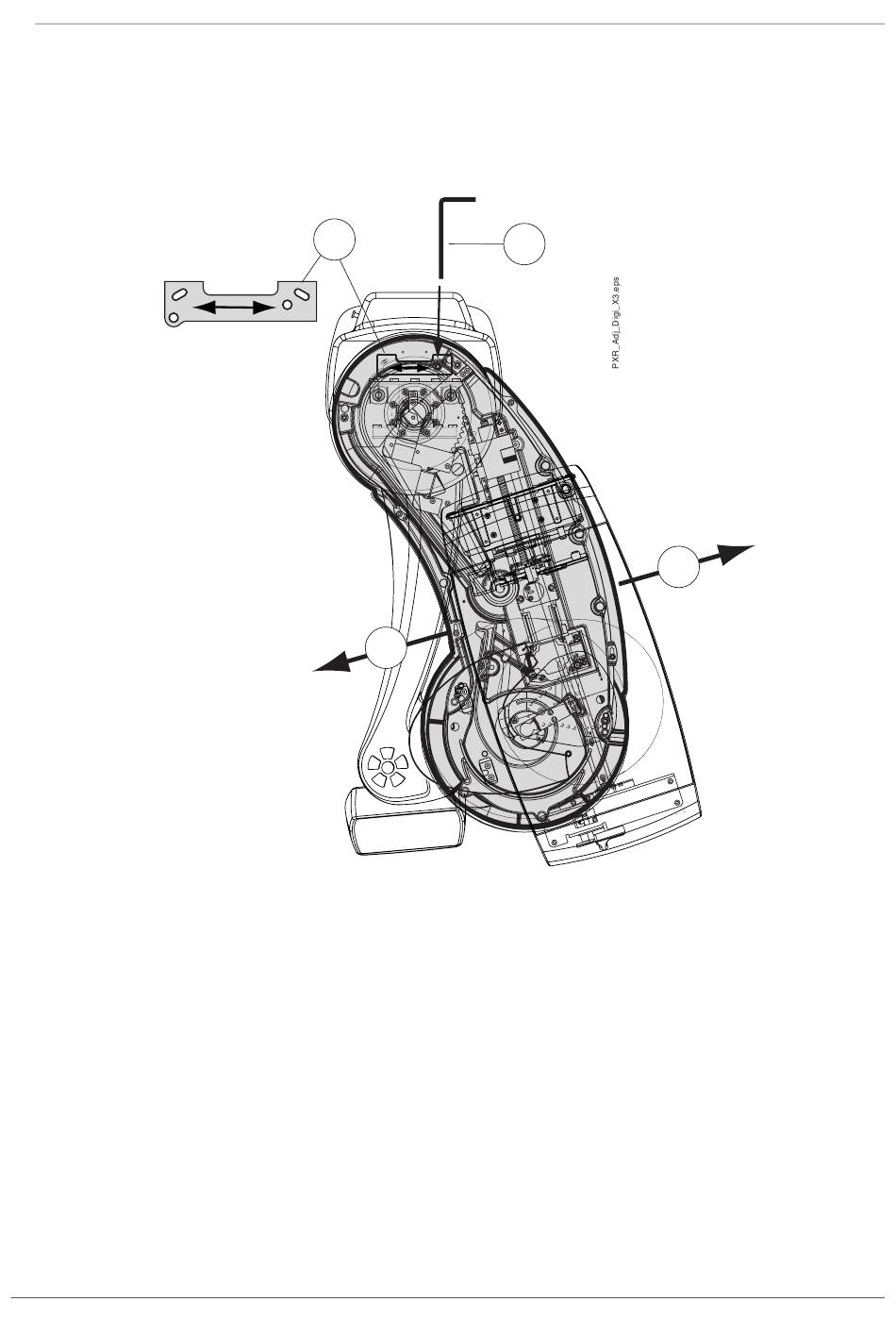

Figure 65
NOTE The angle sensors must be calibrated after adjusting the shoulder arm position, refer
to section 2.1 "Calibration of angle sensors" on page E-56.
After the x-direction adjustment the adjustment must be performed in y-direction, do not
tighten the patient support table attachment screws yet.
