ADJUSTMENTS AND CALIBRATIONS
Chapter H - CEPHALOSTAT

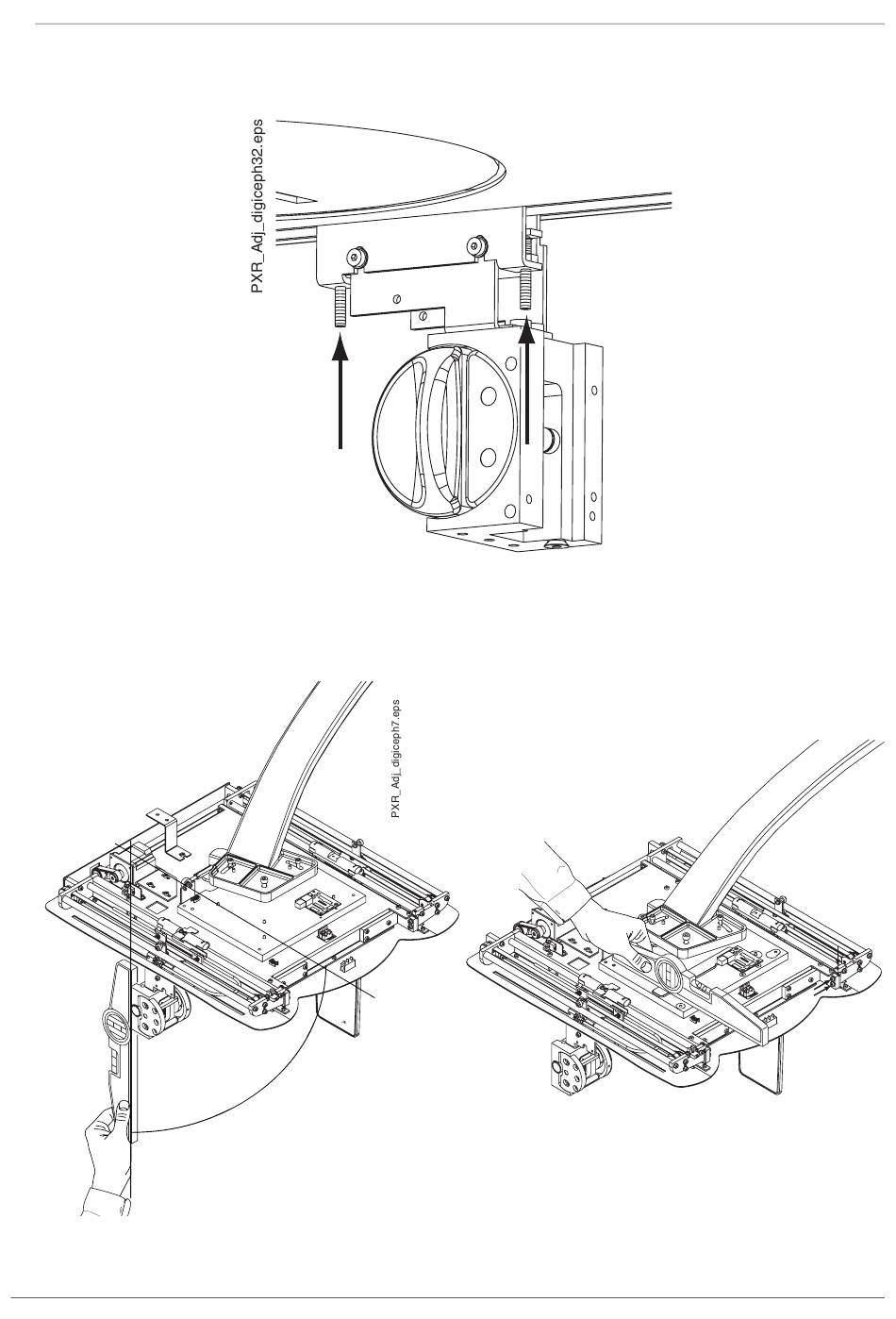

To adjust the connector position in depth rotate the two adjustment screws equally to the
same direction.
Figure 13
Check the connector sideways position by using the spirit level as shown on the Fig. 14
below.
90°
Figure 14
ProMax X-ray unit with Dimax3 H-7
Technical manual
