Chapter E - C-ARM AND IMAGING ARM

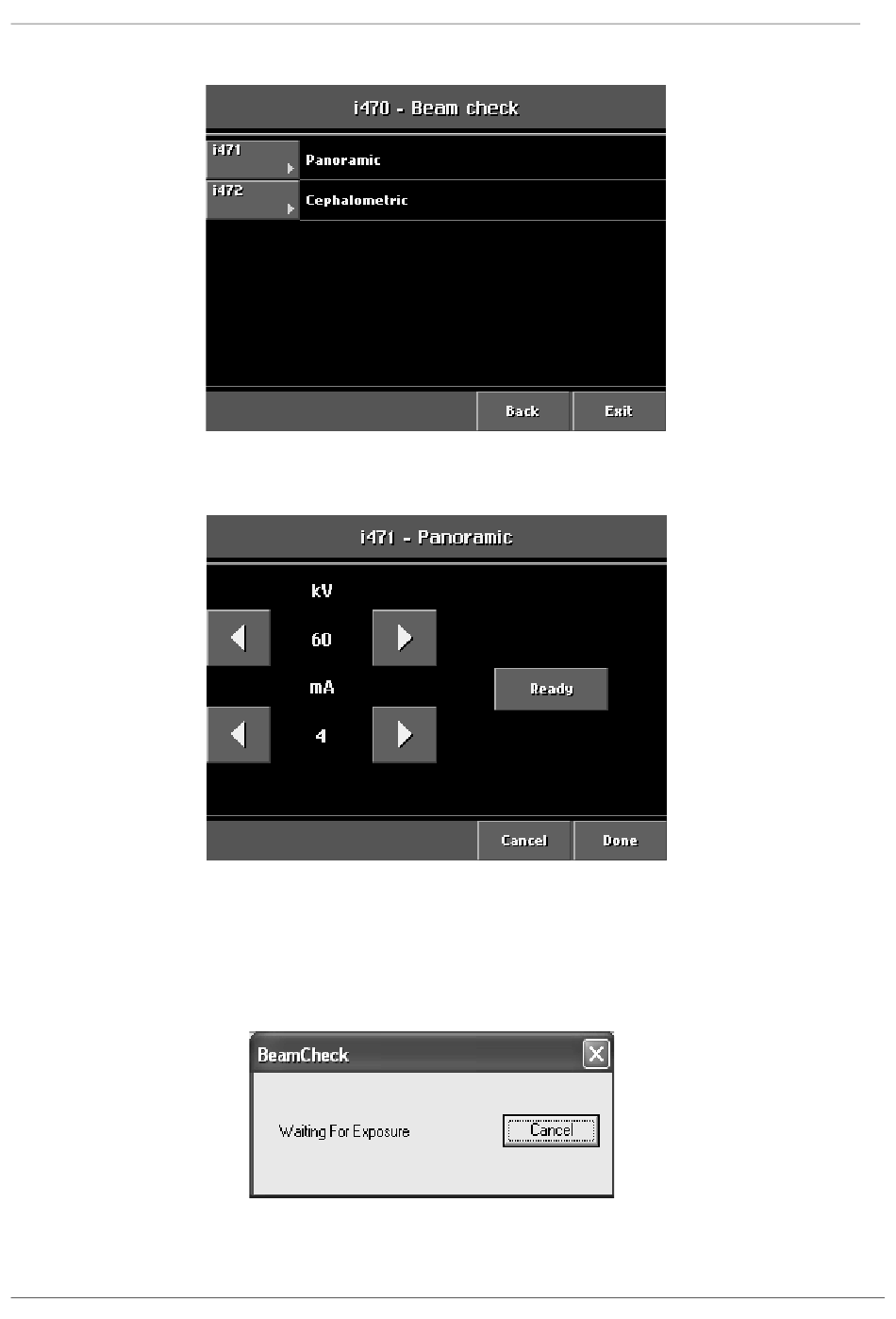

Select i 471 for Panoramic program.
Figure 30
The system suggests default kV and mA values. Touch the Ready field.
Figure 31
NOTE
In case the contrast on the exposure is not satisfactory, change the values by touching
the arrow fields and take a test exposure.
The following window appears on the computer screen.
Figure 32
Press the X-ray unit's exposure switch.
E-20 ProMax X-ray unit with Dimax3
PANORAMIC BEAM AND PATIENT POSITIONING MECH-
Technical Manual
