PANORAMIC BEAM AND PATIENT POSITIONING MECHA-
Chapter E - C-ARM AND IMAGING ARM

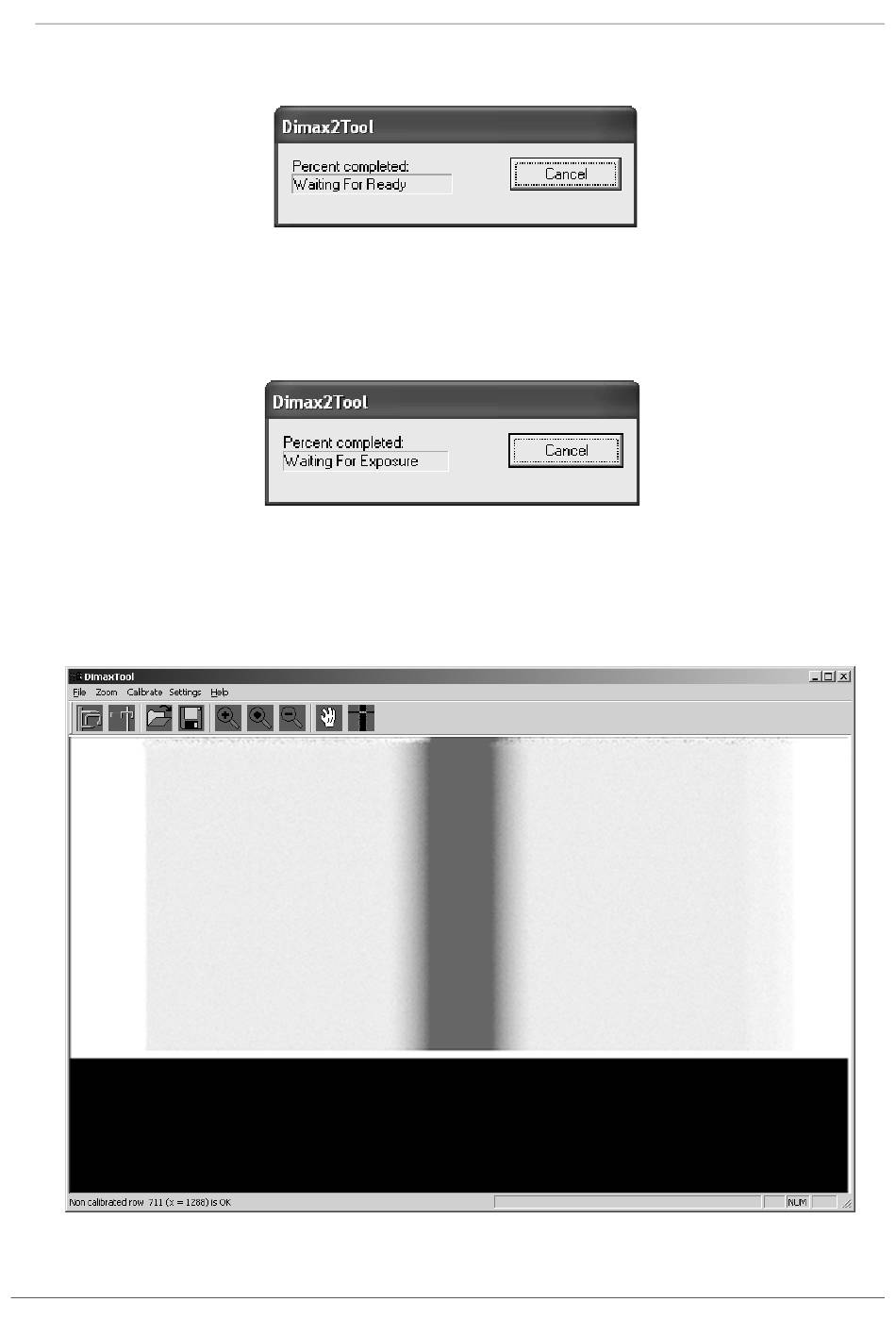

The Dimax2Tool window with text "Waiting for Ready" appears.
Figure 43
Touch the ready field to drive the X-ray to the exposure position.
The text "Waiting for Exposure" appears.
Figure 44
Take an exposure.
The sensor head is now calibrated. After the exposure has been taken the image is shown in
the Dimax2Tool window.
Figure 45
ProMax X-ray unit with Dimax3 E-25
Technical Manual
