Planmeca ProMax X-ray Instruction Manual page 256

Chapter H - CEPHALOSTAT

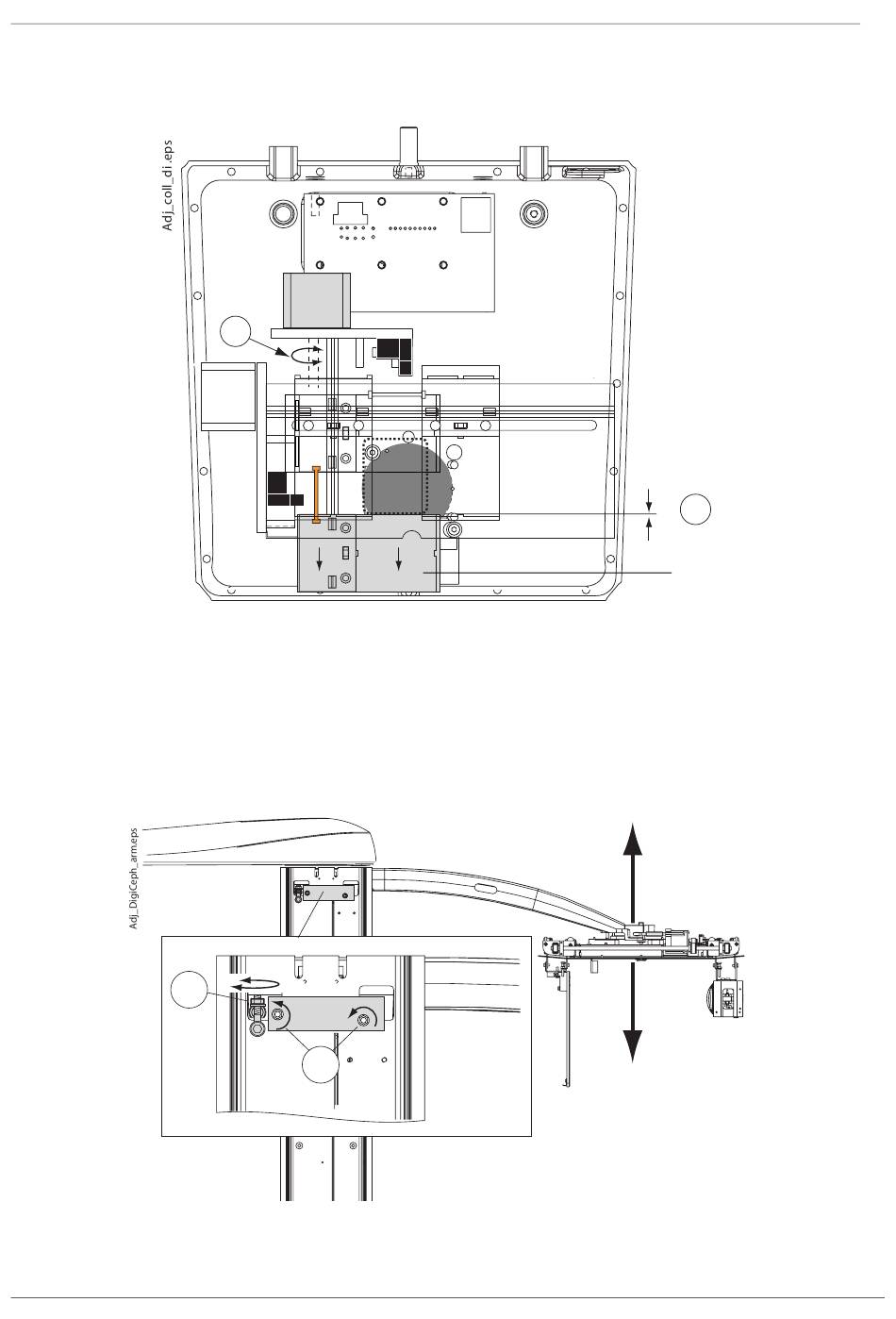

The lower blade of the primary collimator must be on a level with the opening on the alumin-
ium frame. To adjust the position of the lower blade rotate the Y-motor screw (Fig. 22, 1) and
simultaneously move the lower blade (Fig. 22, 2).
Figure 22
Stand behind the tube head and protect yourself from radiation. Press and hold down the
exposure button. The image of the radiation beam will appear on the alignment tool.
Loosen the nuts of the attachment plate (Fig. 23, 1). Adjust the cephalostat height with the nut
of the swing bolt (Fig. 23, 2) so that the bottom edge of the X-ray beam reaches the lower
edge of the rectangle marked on the beam alignment tool when the beam alignment tool is
positioned to the sensor alignment tool upside down to lower vertical position as shown on
Fig. 18.
Figure 23
Exit the Ceph mode beam position mode by touching the Cancel field.
H-12 ProMax X-ray unit with DImax3
1
2
1
Adjusting the height of head support.
ADJUSTMENTS AND CALIBRATIONS
2
Lower blade
Technical manual
