Chapter G - COLUMN

6.2 ETHERNET PCB and CPU PCB

Remove the front cover plate according to the instructions given in section 2.1 "Removing the
telescopic column upper front panel" on page G-9.
Disconnect all the cables that are connected to the Ethernet PCB and CPU PCB.
Detach the Ethernet PCB from the screws on every edge from the CPU PCB.
In case you are replacing the CPU PCB, unscrew the CPU PCB attachment screws with the
2.5mm Allen key and detach the CPU PCB from the Power PCB. Remove the CPU PCB.
Install the new PCB in reverse order. Note, that all the cable connectors are labeled.

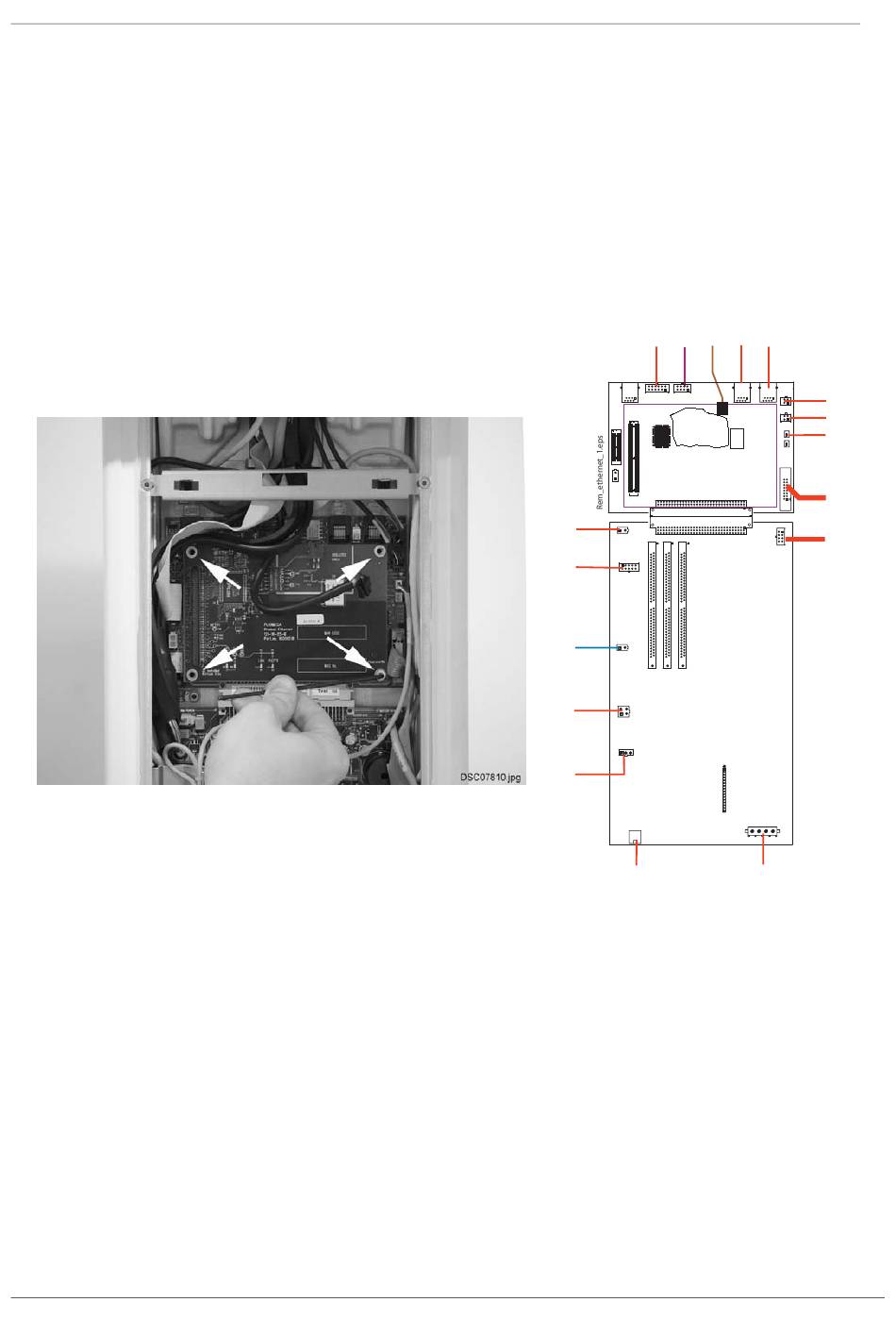

Figure 43
G-36 ProMax X-ray unit with Dimax3
REPLACING PCBS
