Chapter G - COLUMN

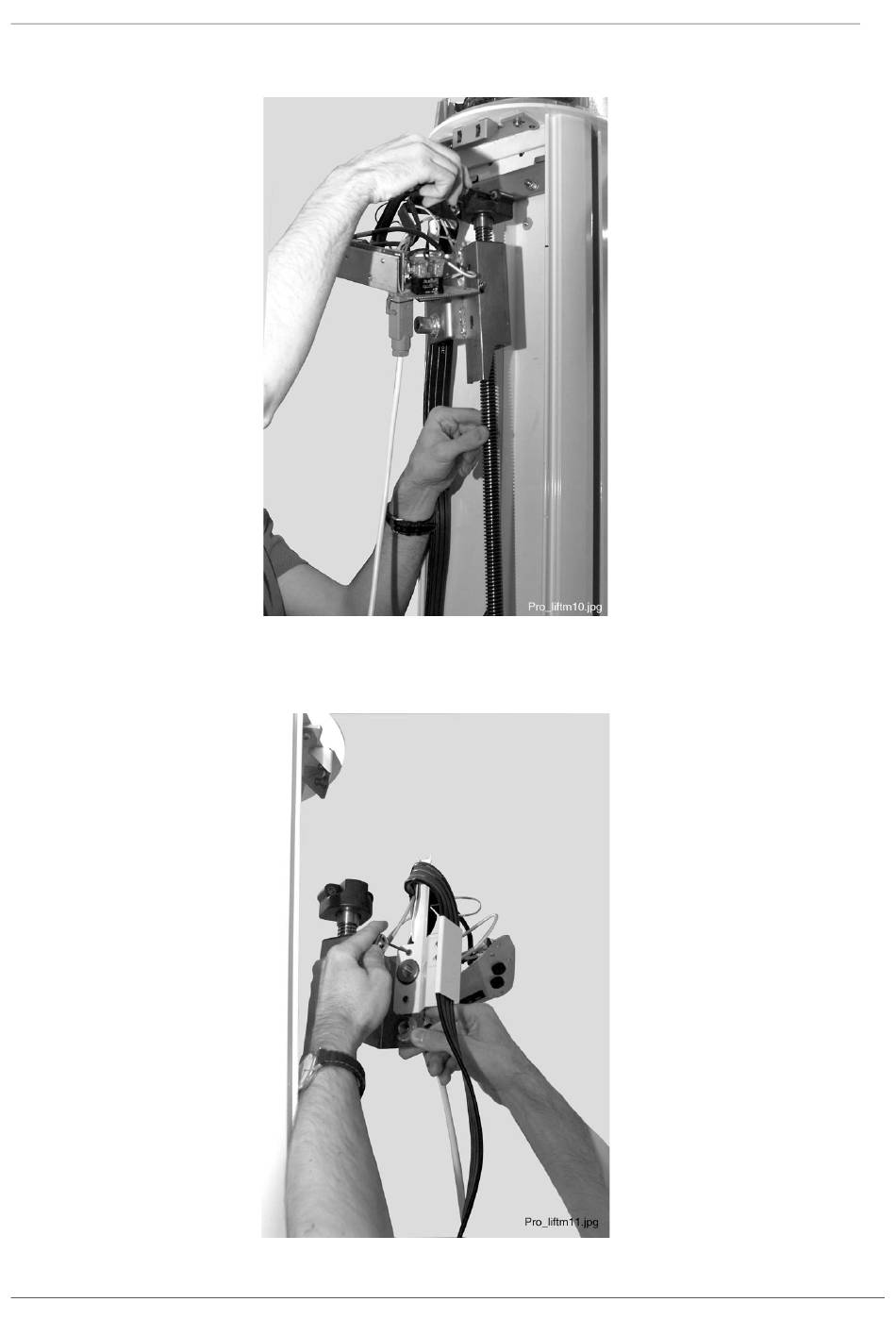

Detach the motor absorber support. Note, that you have to prevent the motor from falling
down when the support is detached.
Figure 29
Remove the column cable guide plate from the lift nut.
Figure 30
G-24 ProMax X-ray unit with Dimax3
REPLACING THE COLUMN MOTOR
Technical Manual
