REMOVING THE COVERS

5 REMOVING THE COVERS
NOTE Switch the unit off before removing the covers.

5.1 C-arm upper covers

Loosen the eight attachment screws with the 2.5mm Allen key (Fig. 101, 1). Do not remove
the screws. Slide the tube head cover plate (Fig. 101, 2) and the receptor cover plate (Fig.
101, 3) from their positions as shown below.

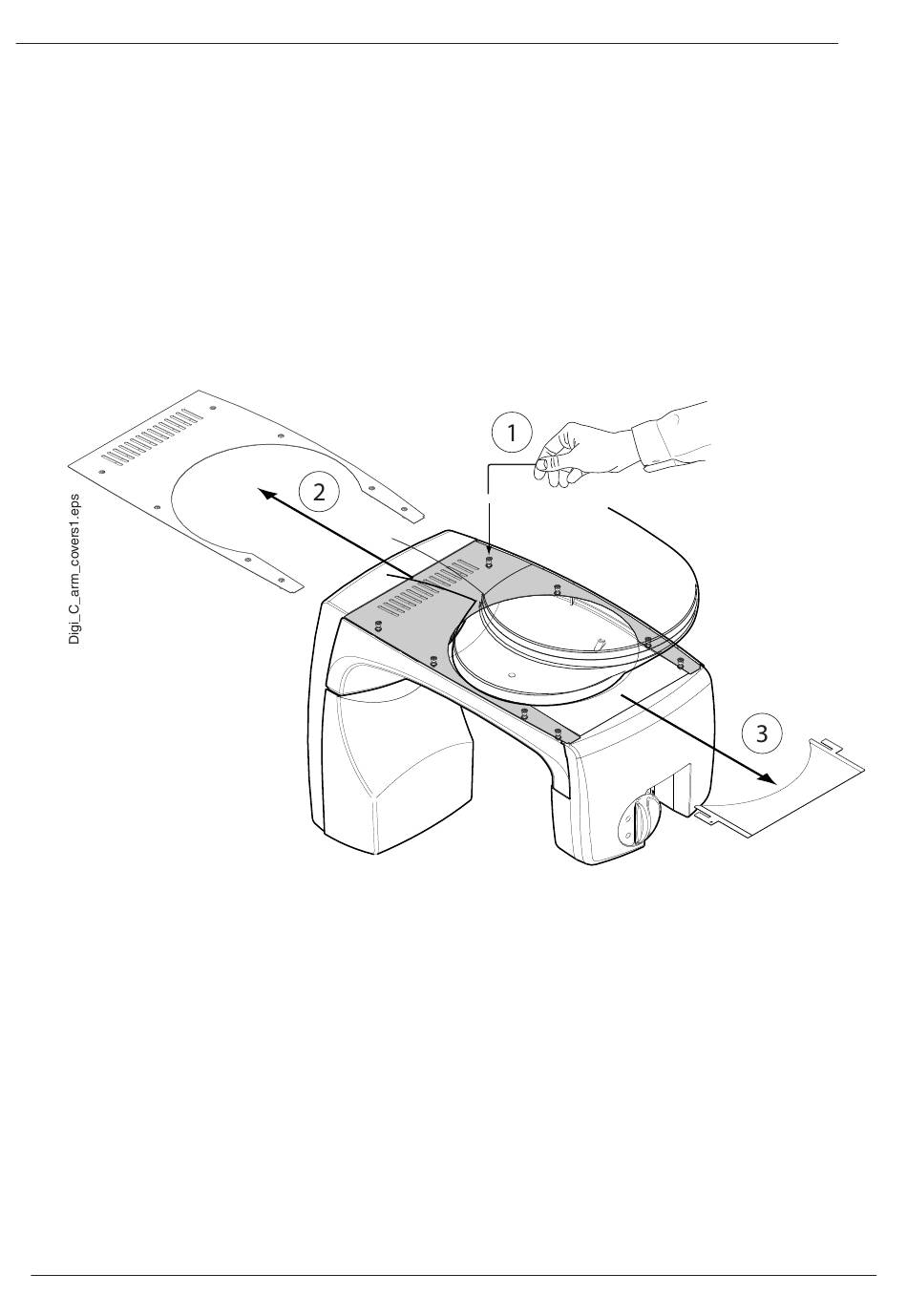

Figure 101
Technical Manual
Chapter E - C-ARM AND IMAGING ARM
8x
Planmeca ProMax E-77
