SPECIAL FUNCTIONS

4.3 Exposure statistics

NOTE

4.4 Taking a test exposure

Technical Manual

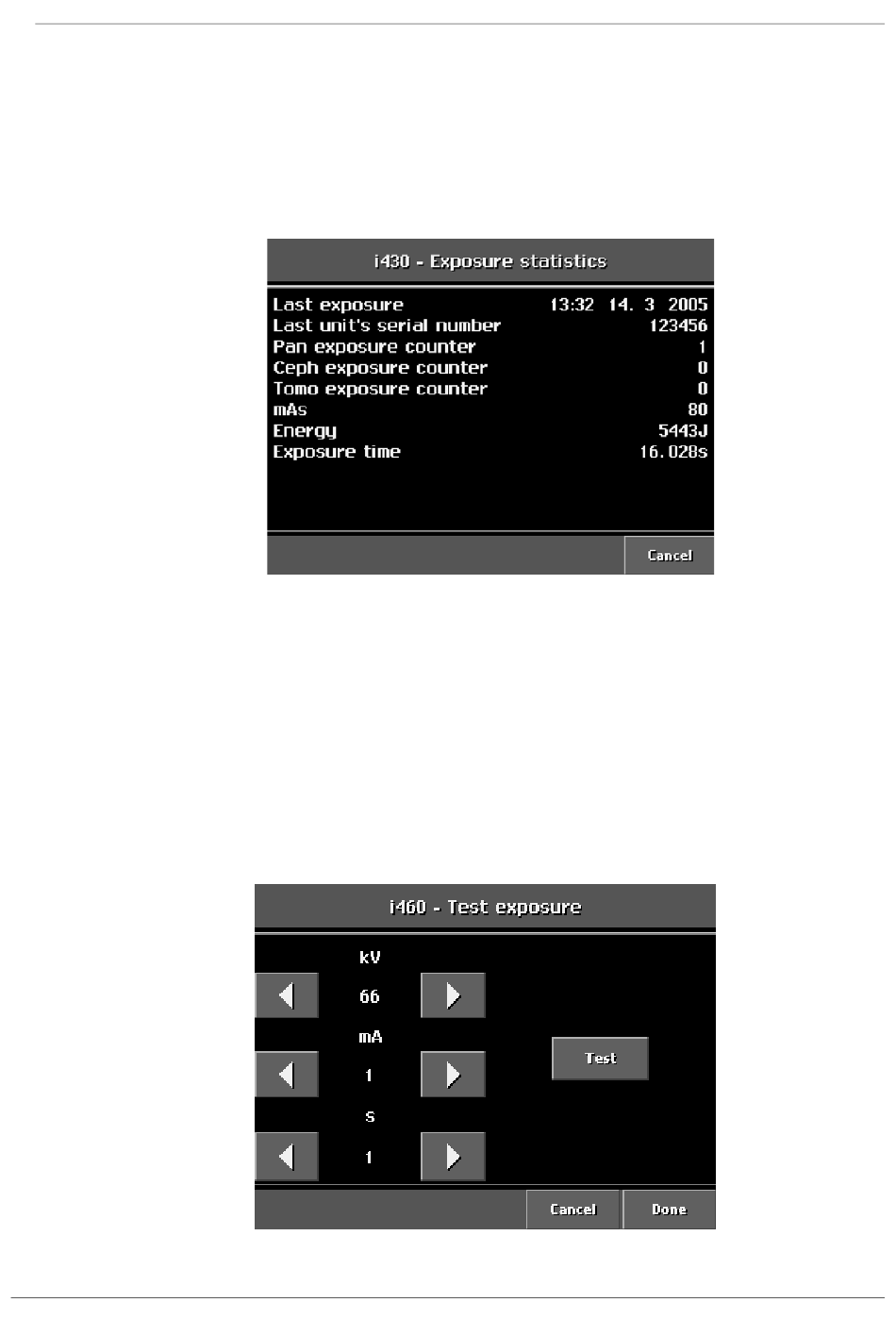

Select Exposure statistics (i430) on the Special functions display. The display shown below
appears. In this mode it is possible to check the unit tube head's exposure statistics. The
diplays shows the time and the date of the latest exposure, the serial number of the latest unit
and the exposure counters of the panoramic, cephalometric and tomographic exposures. The
total amount of mAs, energy and exposure time are also shown.
Figure 24
The parameters can be cleared on the Configuration selftest (i560) window by touching
the Clear exposure history button.
Select Test exposure (i460) on the Special functions display. This option allows you to take a
test exposure. Select the desired exposure parameters: kV and mA values and exposure time
and touch the Test field. The text Ready appears to the bottom of the display and the test
exposure can be performed.
Figure 25
Chapter B - INFORMATION DISPLAYS
ProMax X-ray unit with Dimax3 B-17
