OTHER ADJUSTMENTS AND CALIBRATIONS
Chapter E - C-ARM AND IMAGING ARM

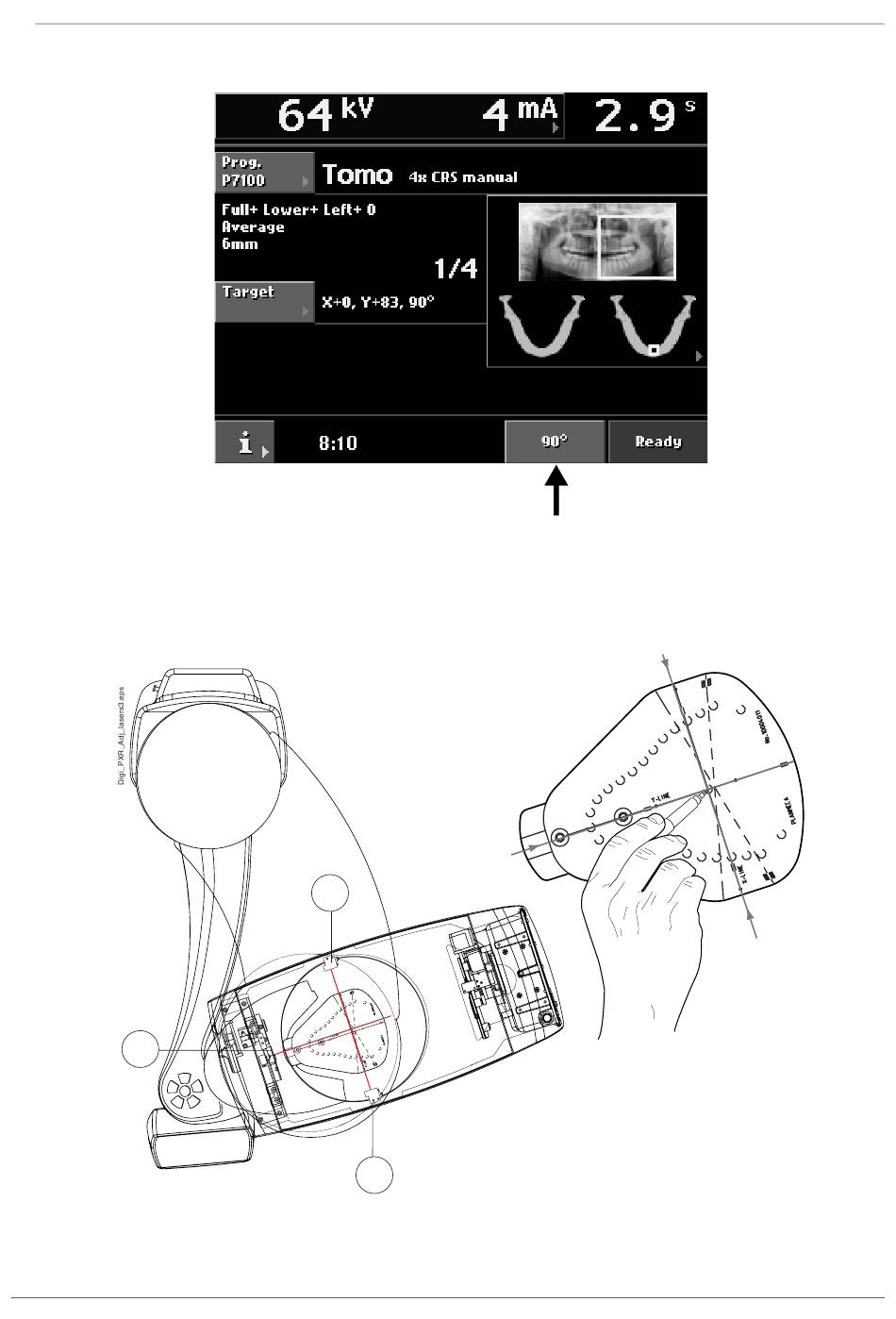

Touch the 90° field on the Main display.
Figure 113
The C-arm will rotate to the position shown below. You can mark the crossing point of the
lights to the phantom.
1
3
2
Figure 114
ProMax X-ray unit with Dimax3 E-73
Technical Manual
