ADJUSTMENTS AND CALIBRATIONS

1.13 Adjusting the second primary collimator position

Second primary collimator angle adjustment
Technical manual

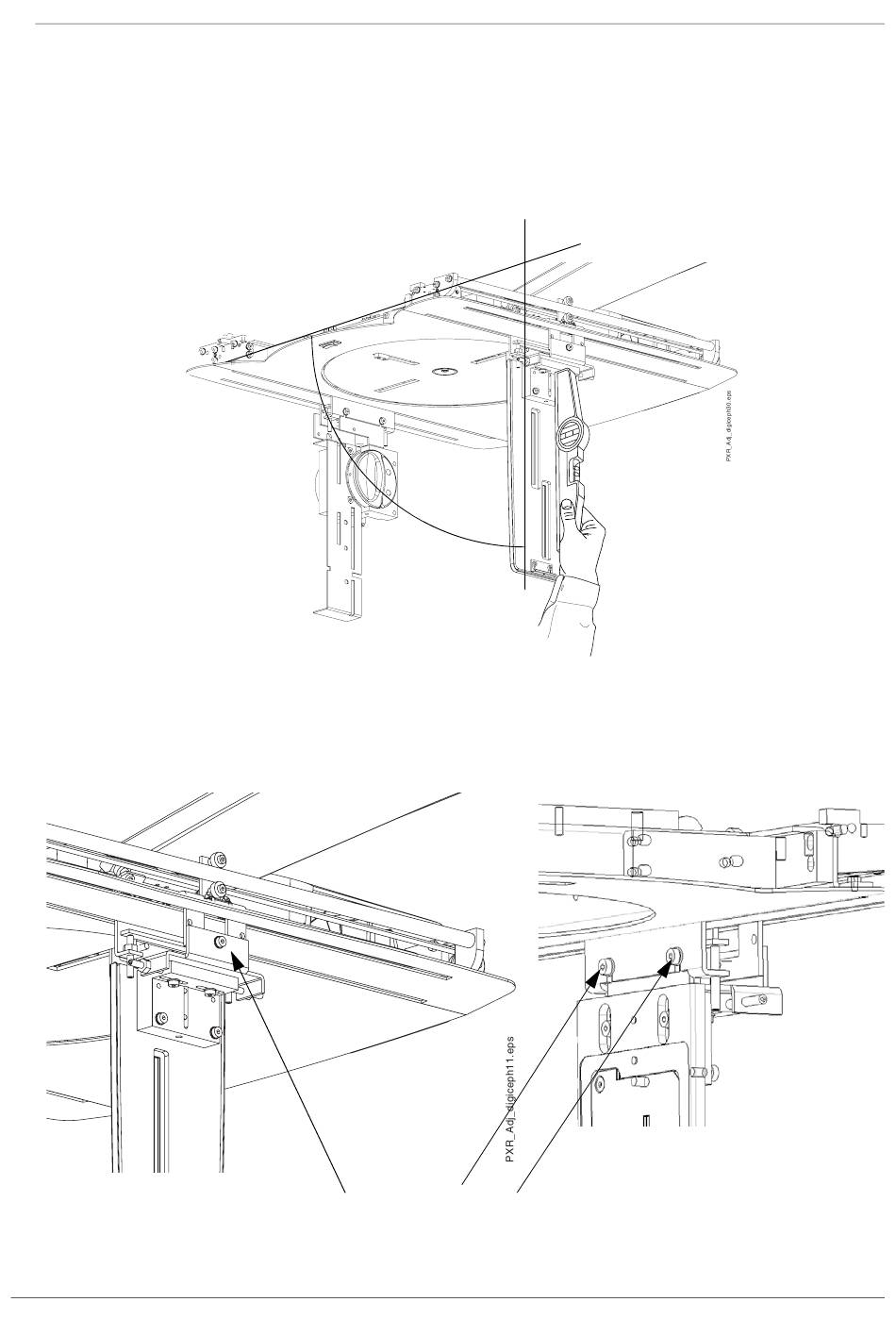

The second primary slot must be perpendicular to the head support in both directions.
sideways and in depth. Check the collimator position in depth by using the spirit level as
shown on the Fig. 50 below.
Figure 50
Loosen the three attachment screws of the collimator plate with 3mm Allen key, if needed.
Collimator plate attachment screws
Figure 51
90°
Chapter H - CEPHALOSTAT
ProMax X-ray unit with Dimax3 H-29
