Chapter G - COLUMN
p) The X-ray unit must be detached from the wall and placed to the floor. It is recommended to
use the ProMax package support frame and the styrofoam pieces. If you overturn the unit
without using the ProMax package, you may damage the unit. If you are not using the
package, remove the C-arm covers and use e.g. styrofoam pieces under the unit.
q) First attach the transportation support bar attachment pin to the telescopic column (Fig. 17,
1).
r) Attach the styrofoam pieces to the unit (Fig. 17, 2). Push the support frame over the
styrofoam pieces (Fig. 17, 3). Attach the transportation pin to the support frame with the two
M8x30 DIN 7984 screws (Fig. 17, 4). To be able to reach the guide assemblies, cut openings
to the styrofoam pieces as shown on the Fig. 17 below (5).
s) Detach the wall bracket(s) from the wall and detach the unit from the floor (Fig. 17, 6).

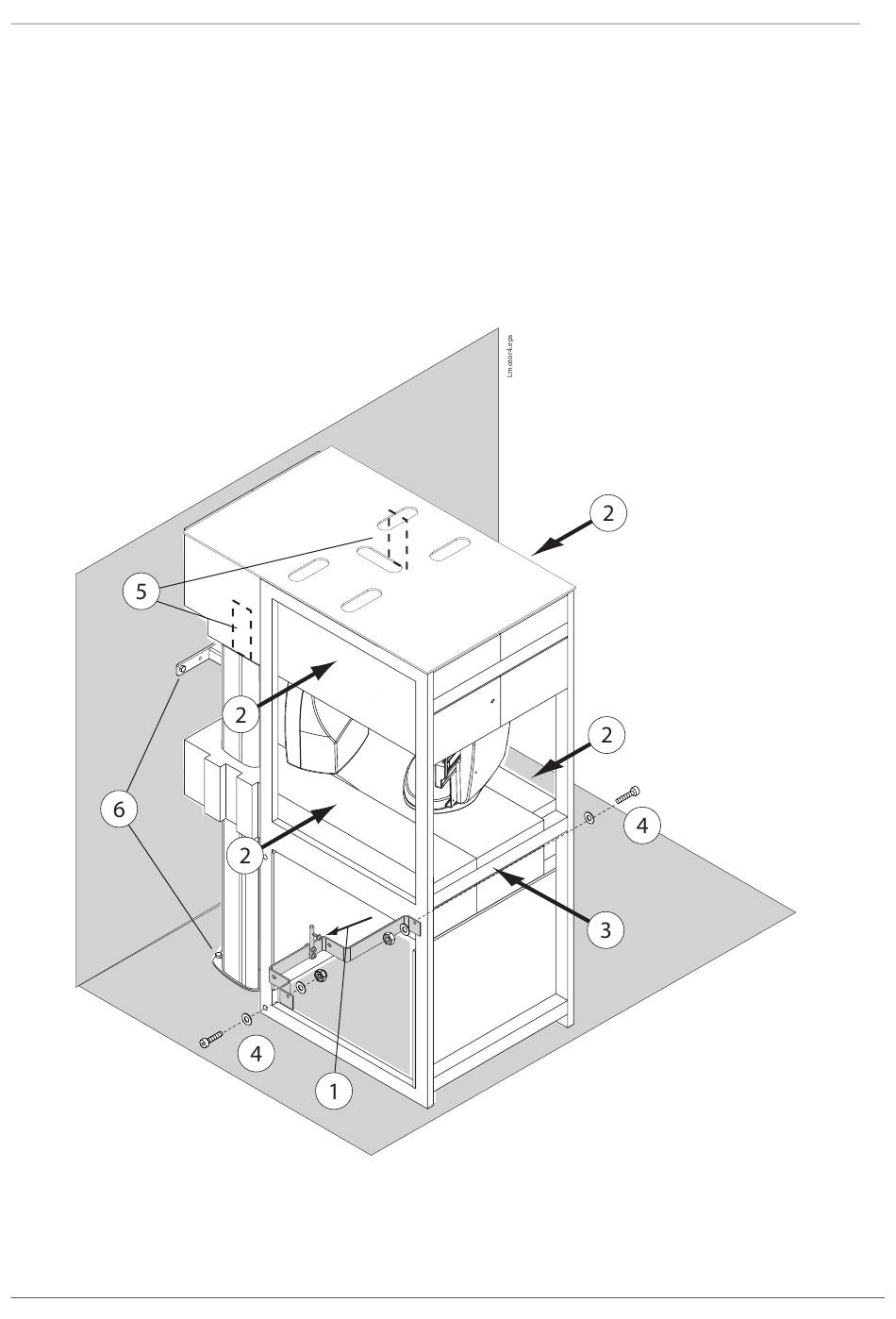

Figure 17
G-16 ProMax X-ray unit with Dimax3
REPLACING THE COLUMN MOTOR
